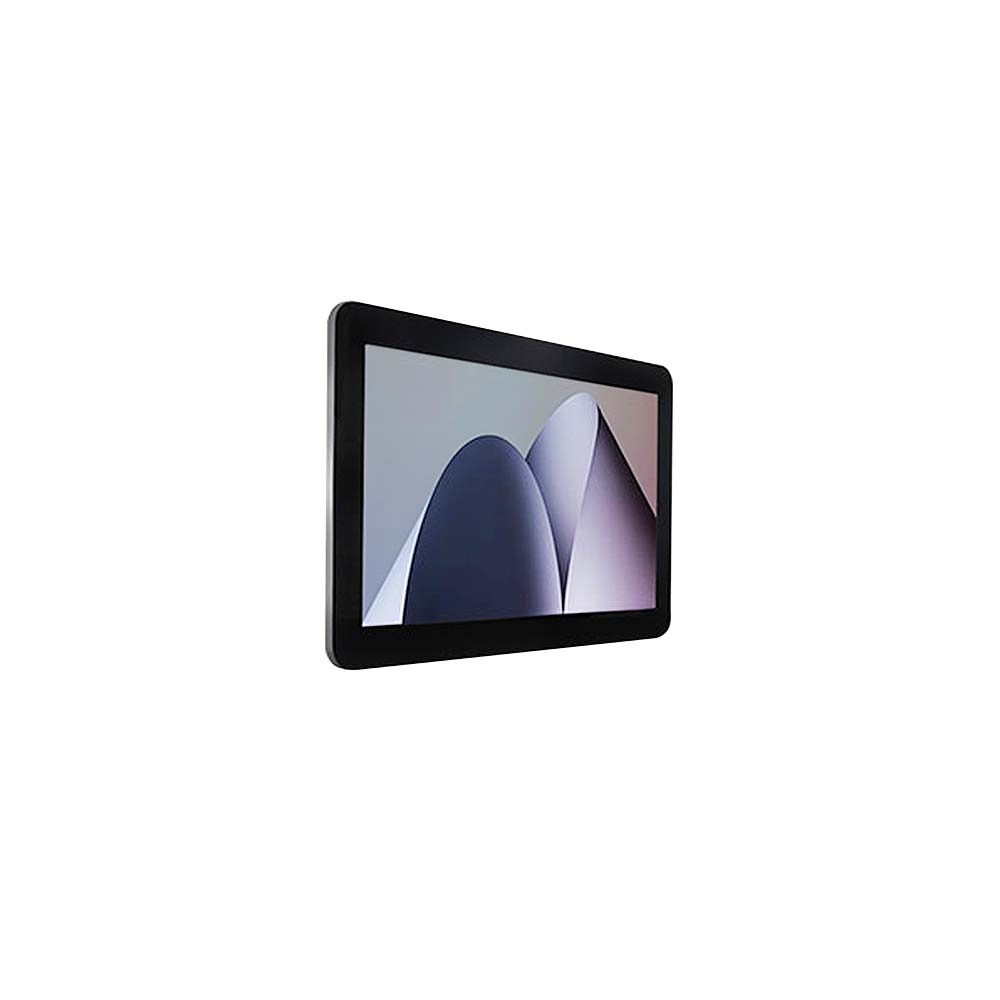

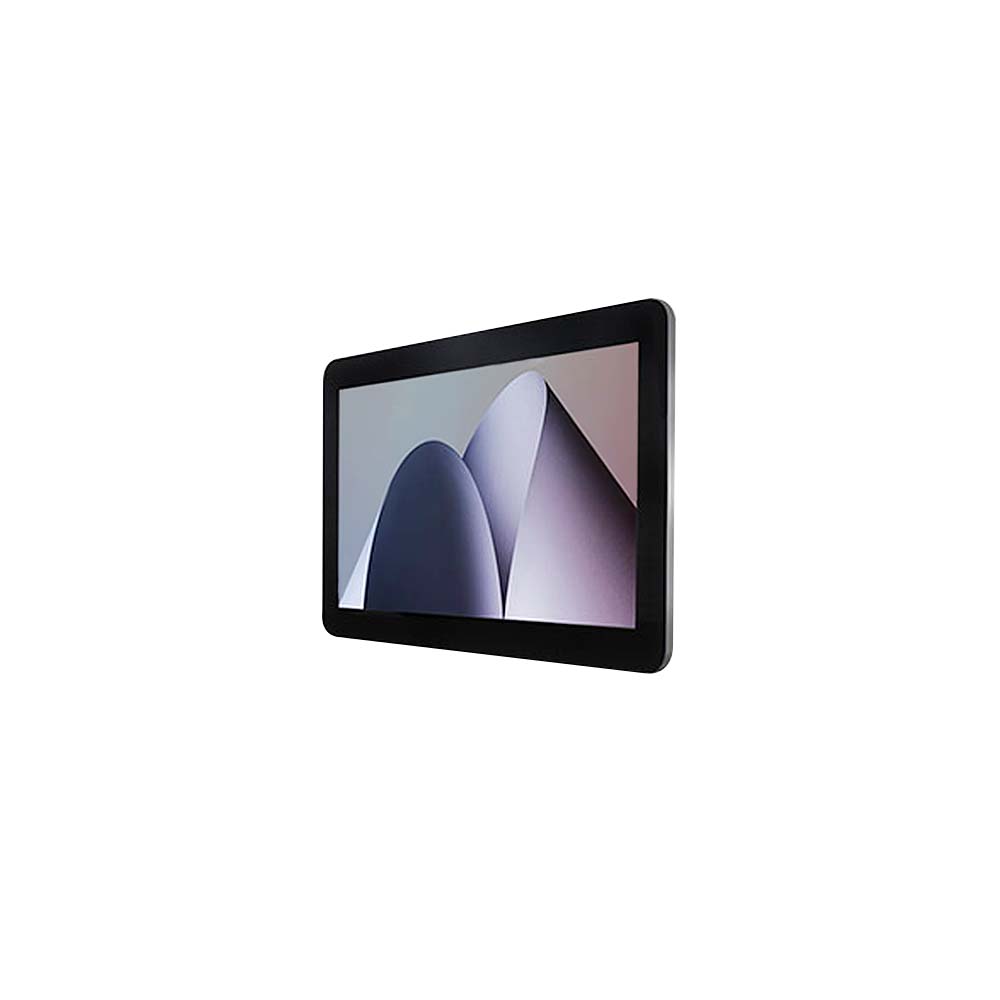

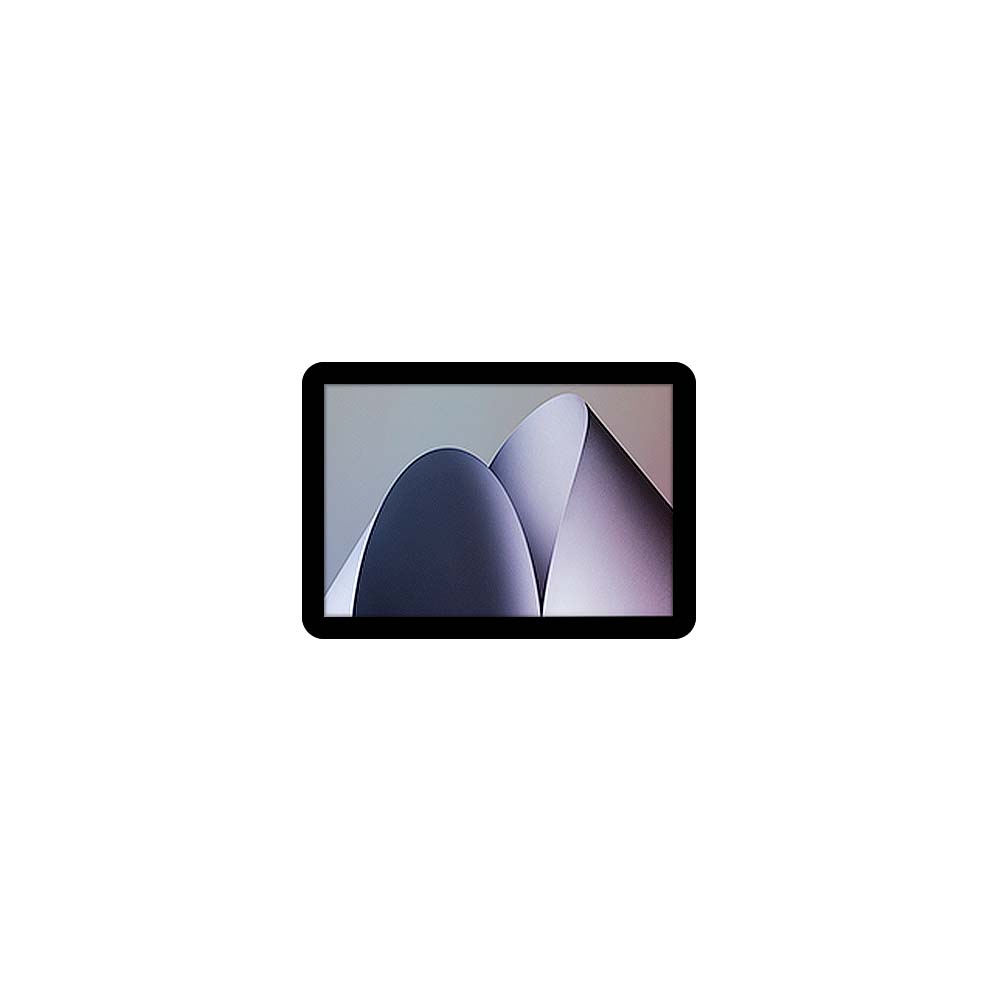

10″ Android Digital Signage
- 10.1″ TFT LCD
- Cortex A17, QuadCore 1.6GHz
- 2GB RAM / 8GB eMMC
- Android 8.1

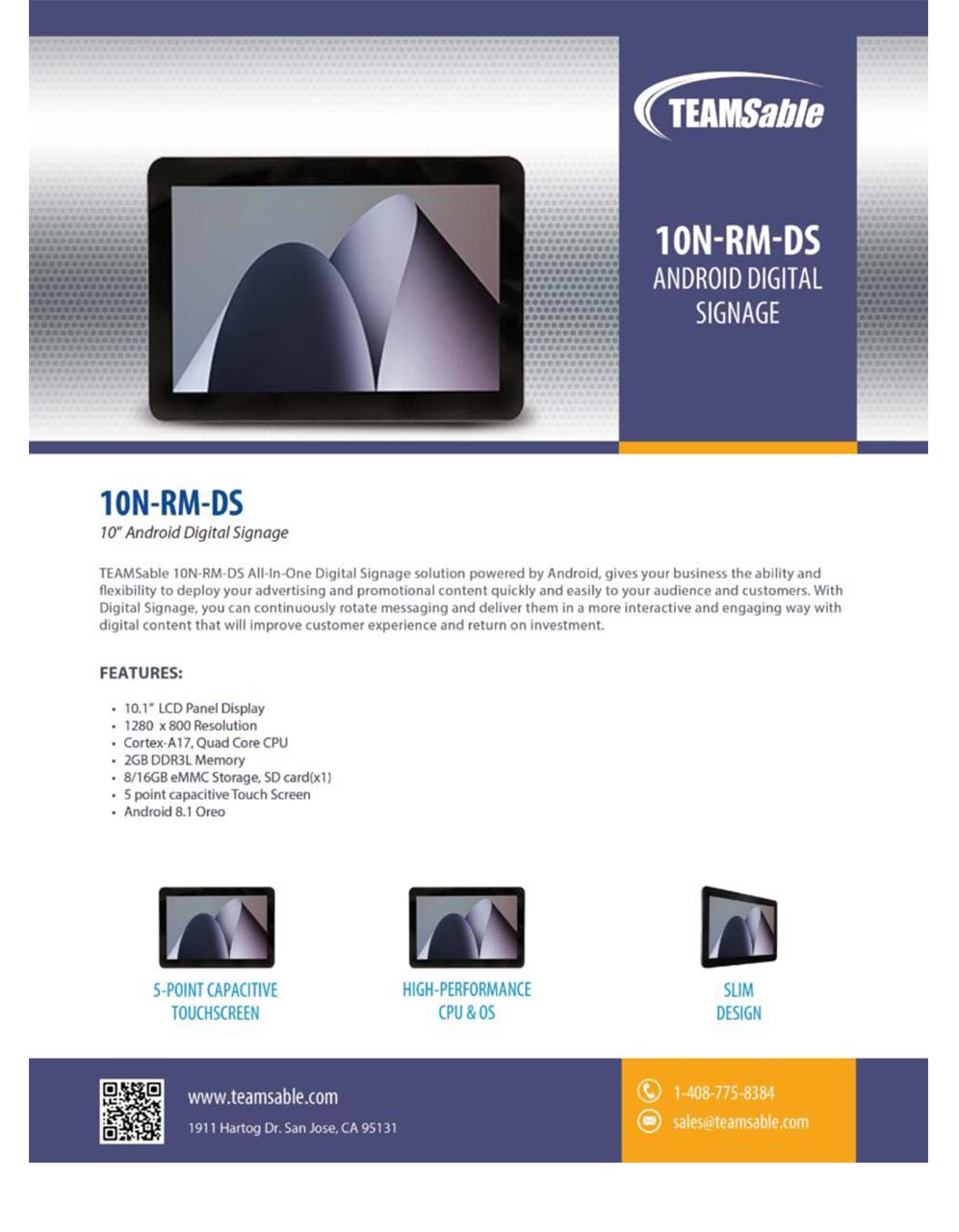

TEAMSable 10N-RM-DS
The TEAMSable All-In-One Digital Signage solution, available in seven sizes, gives your business the ability and flexibility to deploy your advertising and promotional content quickly and easily to your audience and customers. You can continuously rotate messaging and deliver more interactive and engaging content to improve customer experience and return on investment.
| MODEL | DESCRIPTION | |
| 10N-RM-DS | 10.1" TFT LCD, EDP with Cortex A17 QuadCore, 2GB RAM |
| BOX DETAILS | INSIDE THE BOX |
| 1"(L) x 9.7"(W) x 6.4"(H) - Weight: 2.1 lbs. | 10.1" Android Digital Signage Power Adapter |
| HARDWARE | |
| Display | 11.6" (16:9 Diagonal) TFT LCD, EDP |
| Resolution | 1280 RGB(H) x 800(V) |
| Touch Technology | 5 Point Capacitive |
| CPU | Cortex A17, QuadCore, 1.6GHz |
| Memory | 2GB DDR3L |
| Storage | 8GB eMMC (up to 16GB) |
| Power Supply | 12V/3A Adapter |
| Wireless | WiFi: IEEE 802.11a/b/g/n, Bluetooth 4.0 |
| Ethernet | RJ45: 10/100/1000 Mbps LAN, POE (Optional) |
| MEDIA SUPPORT | |
| Format | Video: MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV Audio: MP2, WMA, WAV, AAC, OGG, ASF Picture: JPG, BMP, GIF |
| OS SUPPORT | |
| Android | Android 8.1 |
| EXTERNAL PORTS | |
| USB | USB 2.0 Type-A x 1 |
| Micro USB | Micro USB 2.0 x 1 |
| SD Card Slot | SD Card (SDHC Class10 compatible) x 1 |
| Peripheral Port | Peripheral Port x 1 |
| GPIO Port | GPIO x 2 |
| Ethernet | RJ45 with 5V/12V x 2 |
| DC Adapter Slot | 12V/3A x 1 |
| Audio | 3.5mm Jack x 1, S/PDIF x 1 |
| Speaker | Stereo Speaker: 2W x 2, Amplifier: 1.25W x 2 |

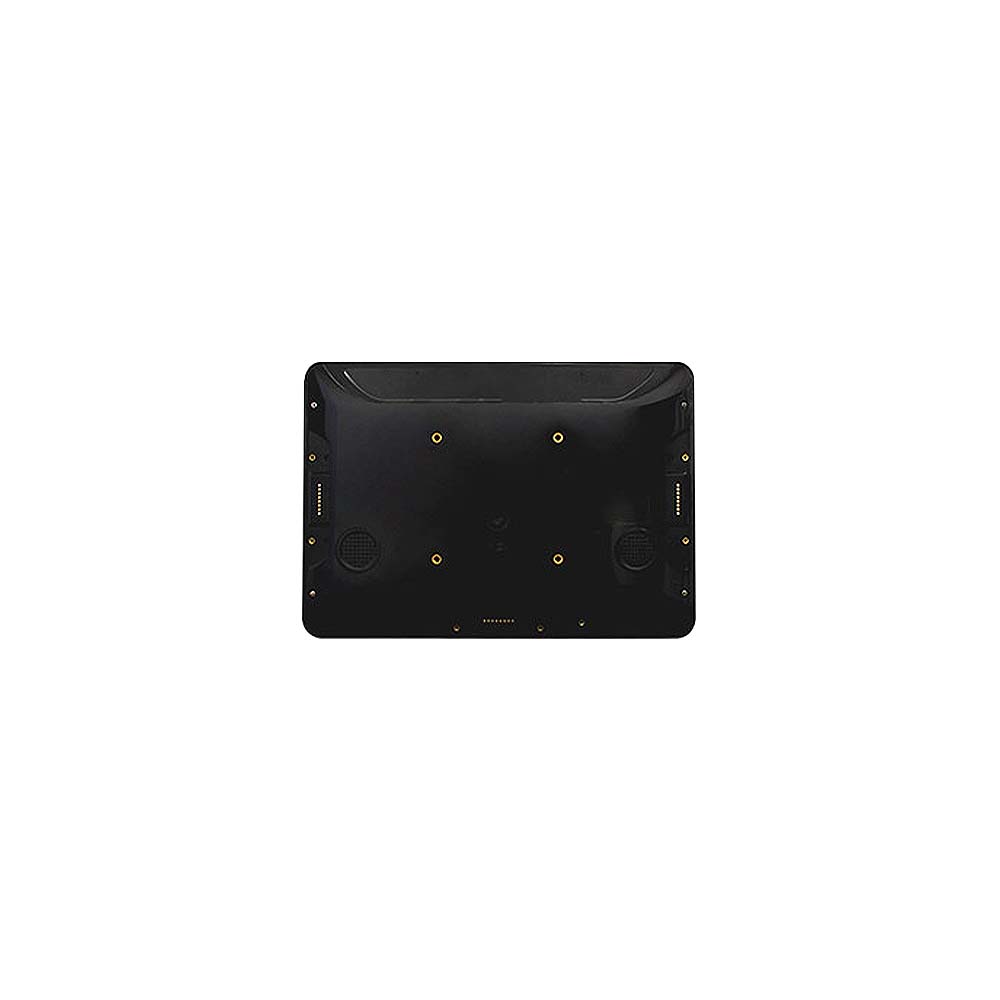

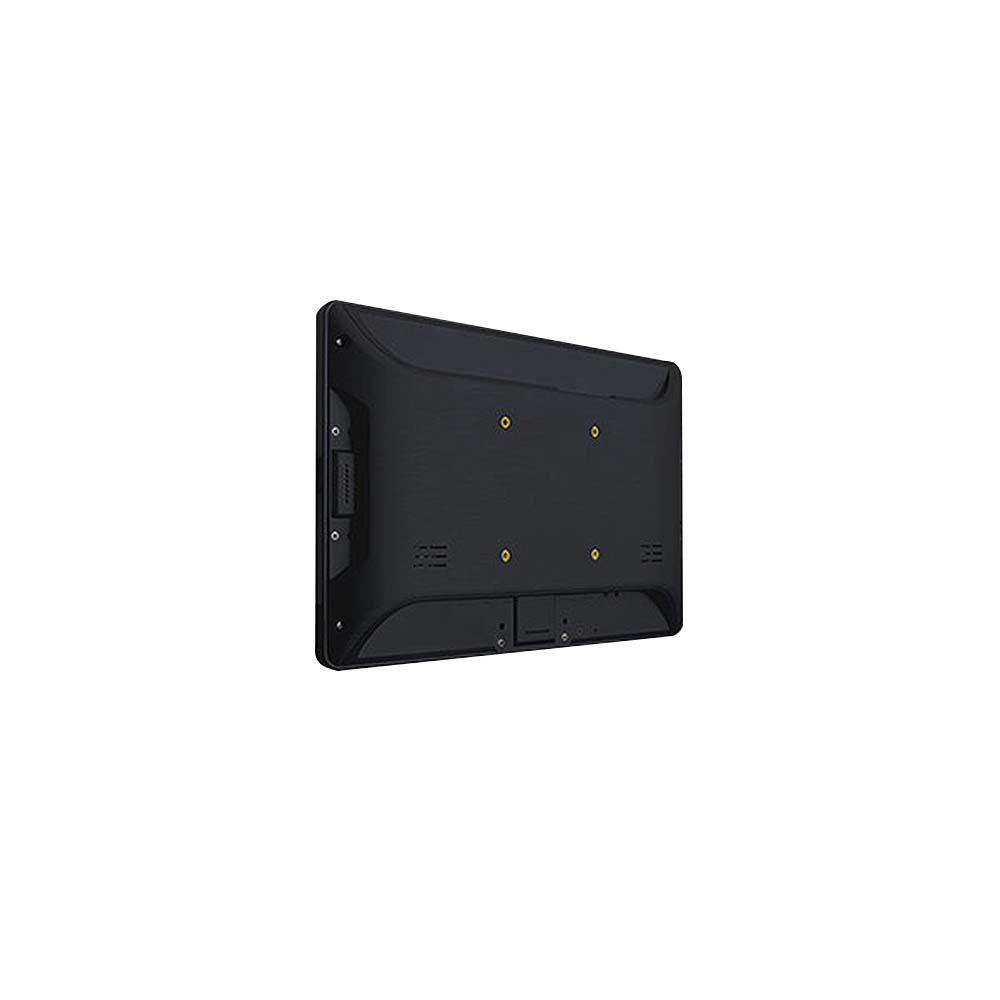

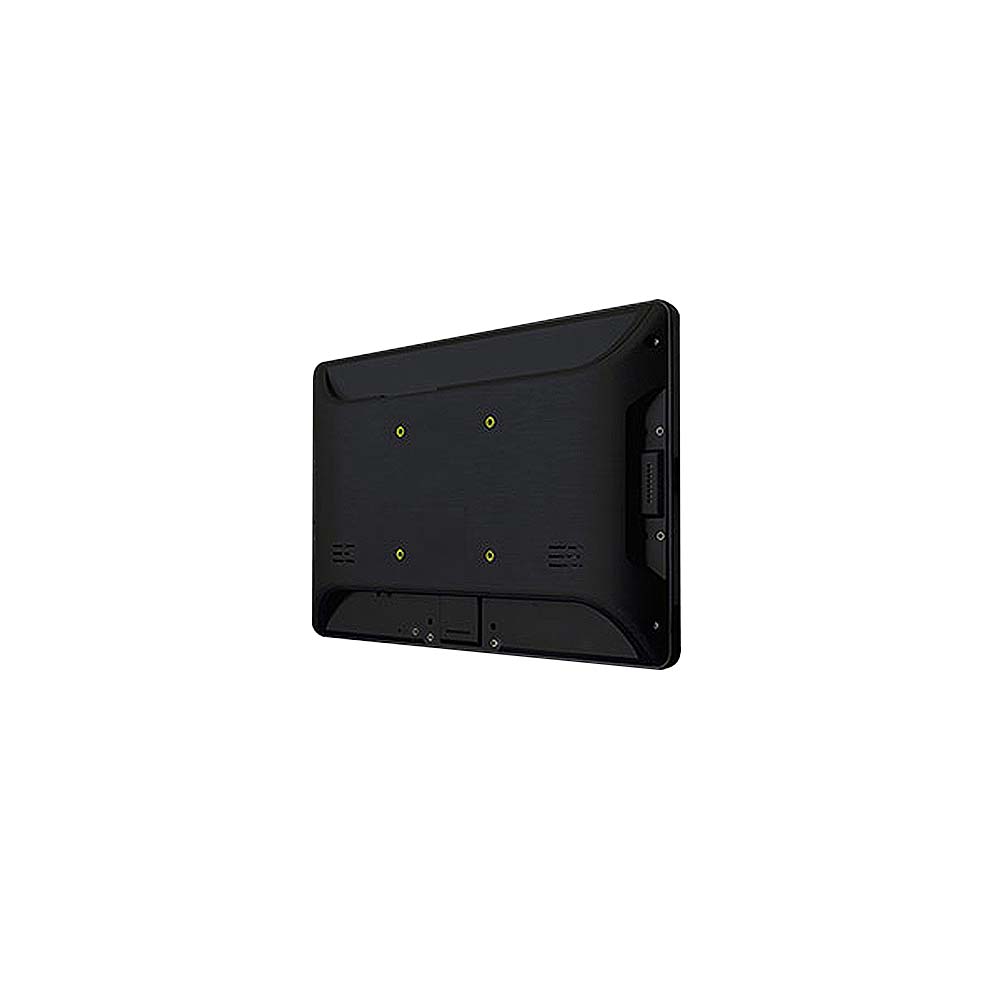

| Mount | VESA 75x75mm |
| ENVIRONMENT | |
| Operating Temp. | 0°C - 40°C (32° - 104°F) |
| Storage Temp. | -10°C - 55°C (14°F - 131°F) |
| Relative Humidity | 10% - 90% (Non-Condensing) |
| PACKAGE | |
| Dimension | 1"(L) x 9.7"(W) x 6.4"(H) |
| Weight | 2.1 lbs. |
Small, Powerful, Android Digital Signage
Don’t let the size of our smallest Android Digital Signage display fool you. The TEAMSable 10N-RM-DS is packed with power and features to build an incredible shopping experience for your space.
Perfectly sized for countertops and tables, the 10N-RM-DS gives you the power to engage customers and drive more revenue.
With a 10-point capacitive touchscreen and a sleek modern design, this digital display is a perfect addition to any business. From restaurants to convenience stores, give your customers an interactive experience they won’t forget — and keep them coming back for more.
Small but Mighty
At just 9.7″ wide and just over 2 lbs, the 10N-RM-DS fits any space with ease.
Flexible & Reliable
Backed by Android, you can quickly launch new content and customize your display to perfection.
Interactive & Engaging
With a 10-point multi-touch display, the 10N-RM-DS is perfect for any business.
