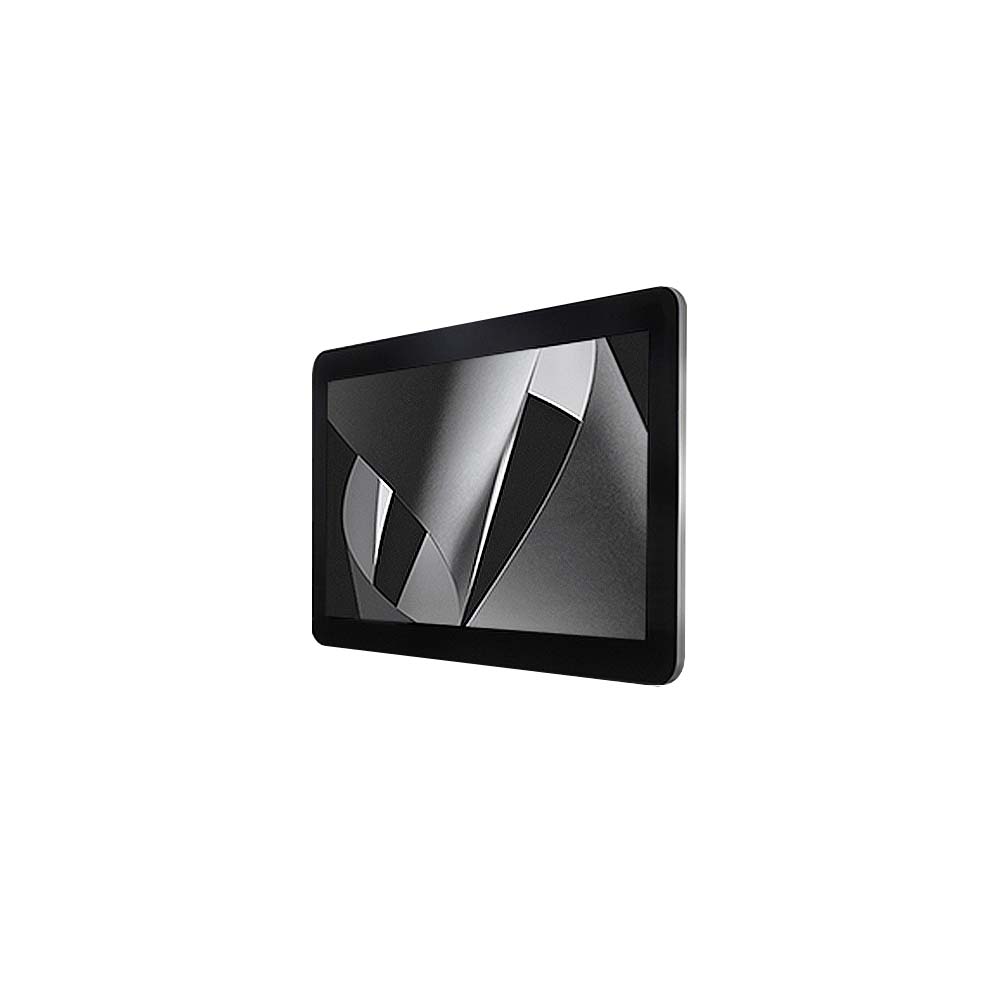

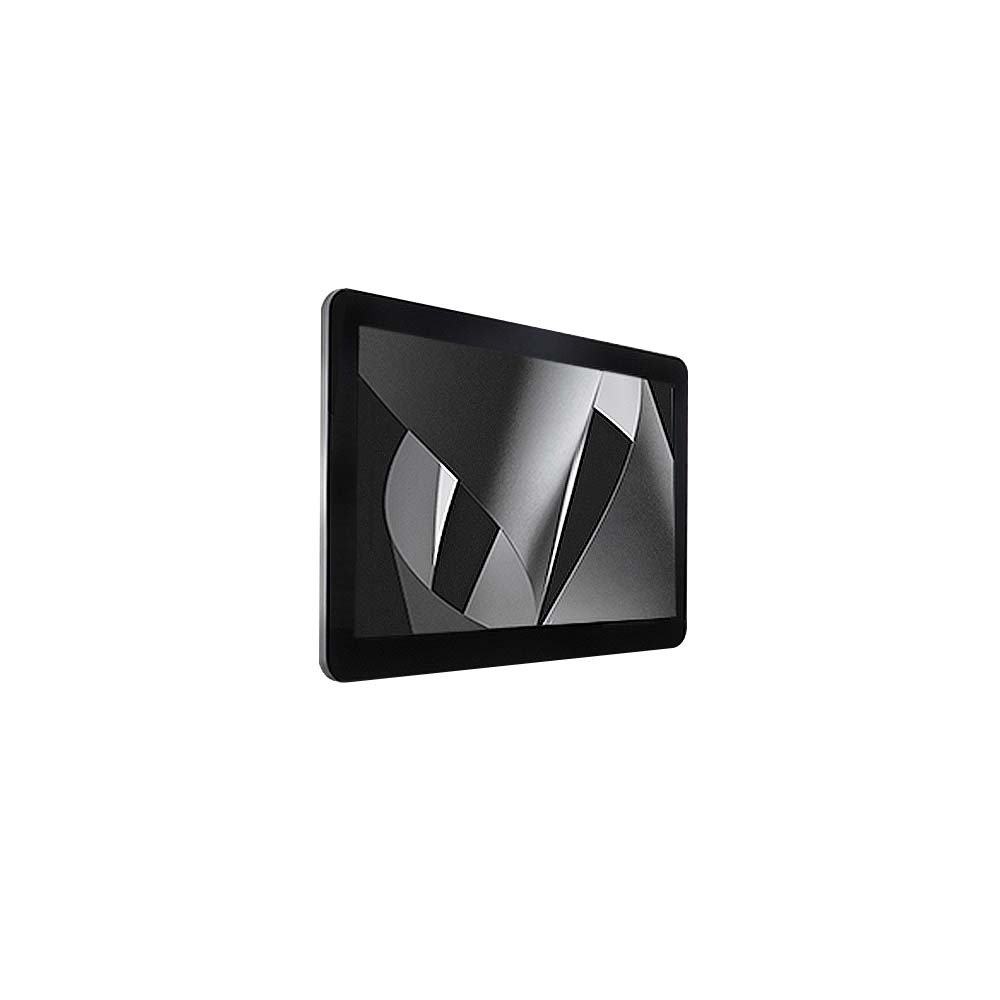

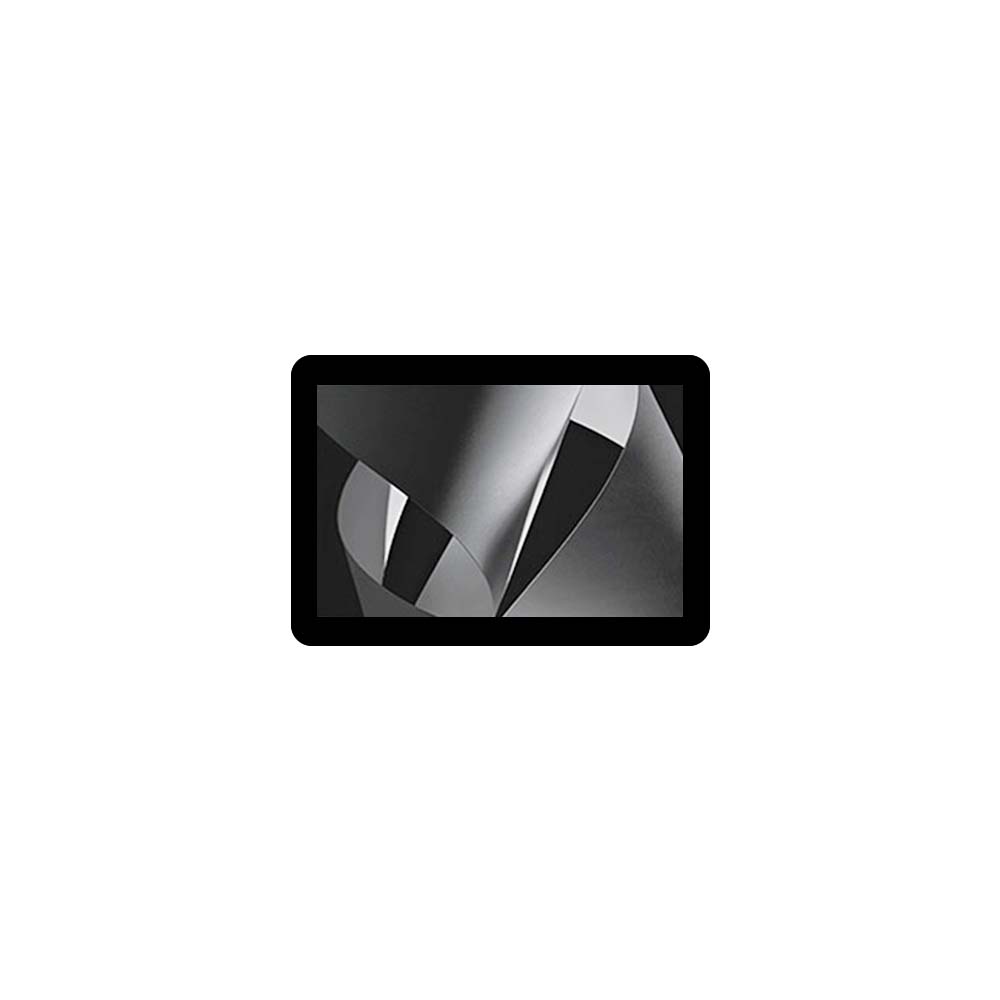

12″ Android Digital Signage
- 11.6″ TFT LCD
- Cortex A17, QuadCore 1.6GHz
- 2GB RAM / 8GB eMMC
- Android 8.1
Product Details
Specifications

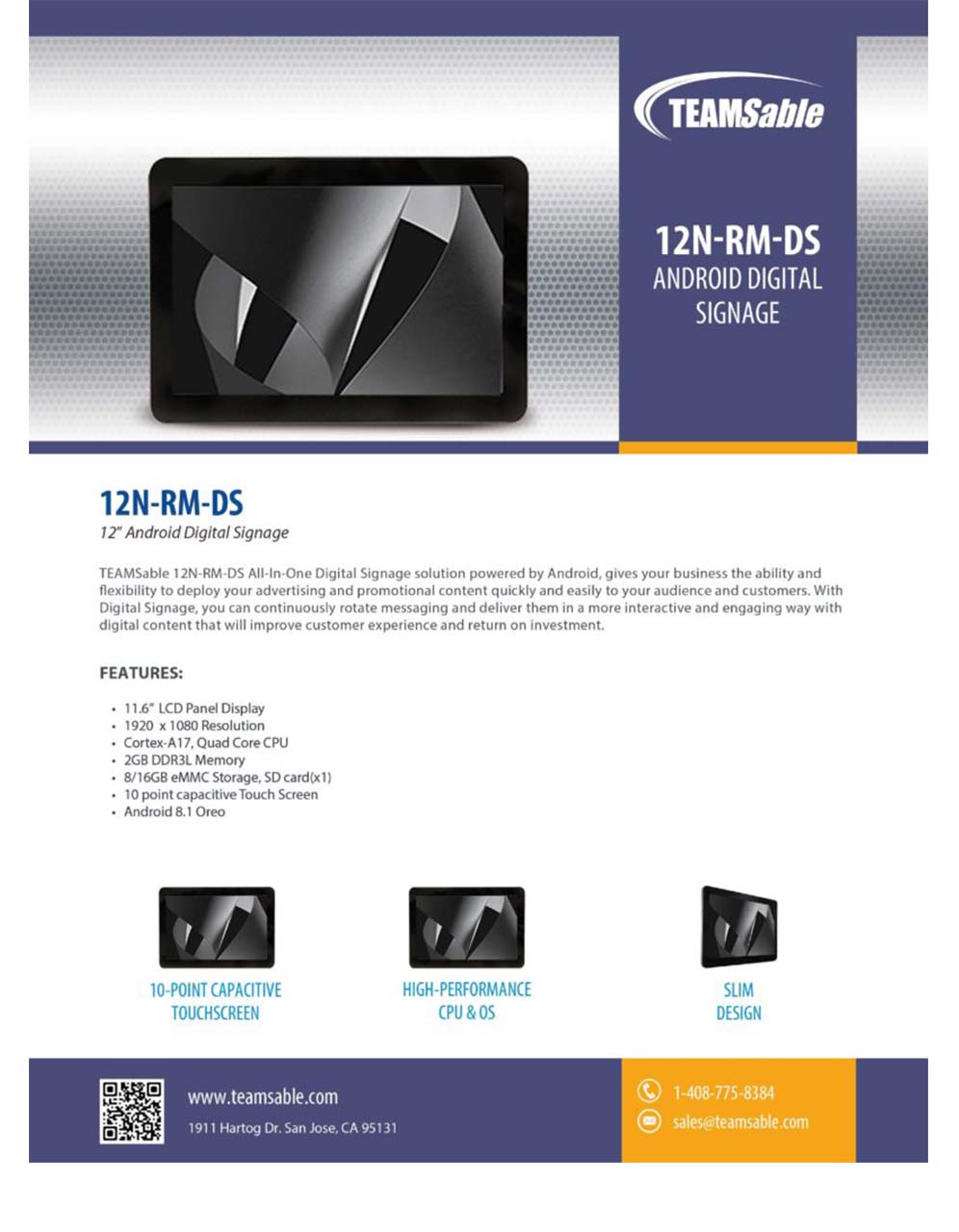

Downloads
Overview
TEAMSable 12N-RM-DS
- 11.6″ TFT LCD
- Cortex A17, QuadCore 1.6GHz
- 2GB RAM / 8GB eMMC
- Android 8.1
Configurations
10-Point Capacitive Touchscreen
11.6" TFT LCD
High-Performance CPU & OS
Android 8.1 + Cortex-A17 QuadCore Processor

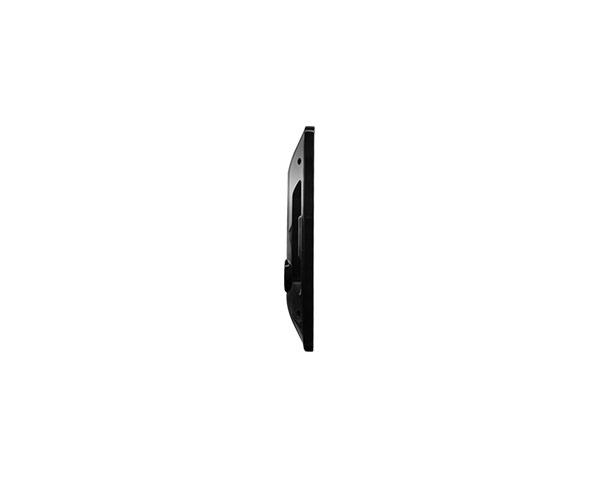

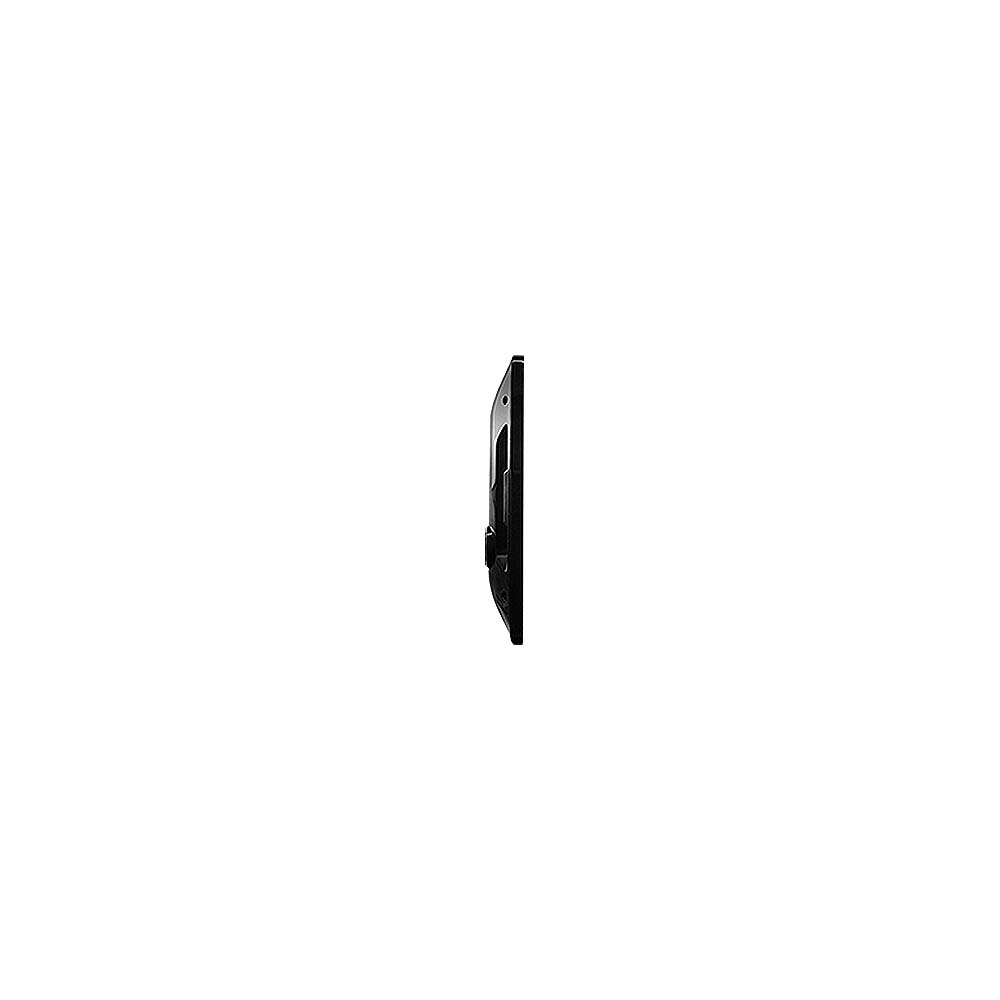

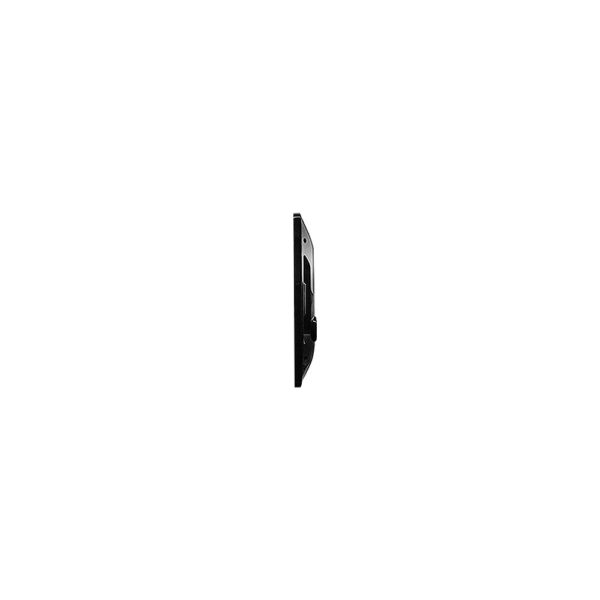

Slim Design
| MODEL | DESCRIPTION | |
| 12N-RM-DS | 11.6" TFT LCD, EDP with Cortex A17 QuadCore, 2GB RAM |
Packaging
| BOX DETAILS | INSIDE THE BOX |
| 1"(L) x 11.6"(W) x 7.4"(H) Weight: 2.1 lbs. |
11.6" Android Digital Sign Power Adapter |
| HARDWARE | |
| Display | 11.6" (16:9 Diagonal) TFT LCD, EDP |
| Resolution | 1920 RGB(H) x 1080(V) |
| Touch Technology | 10 Point Capacitive |
| CPU | Cortex A17, QuadCore, 1.6GHz |
| Memory | 2GB DDR3L |
| Storage | 8GB eMMC (up to 16GB) |
| Power Supply | 12V/3A Adapter |
| Wireless | WiFi: IEEE 802.11a/b/g/n, Bluetooth 4.0 |
| Ethernet | RJ45: 10/100/1000 Mbps LAN, POE (Optional) |
| MEDIA SUPPORT | |
| Format | Video: MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV Audio: MP2, WMA, WAV, AAC, OGG, ASF Picture: JPG, BMP, GIF |
| OS SUPPORT | |
| Android | Android 8.1 |
| EXTERNAL PORTS | |
| USB | USB 2.0 Type-A x 1 |
| Micro USB | Micro USB 2.0 x 1 |
| SD Card Slot | SD Card (SDHC Class10 compatible) x 1 |
| Peripheral Port | Peripheral Port x 1 |
| GPIO Port | GPIO x 2 |
| Ethernet | RJ45 with 5V/12V x 2 |
| DC Adapter Slot | 12V/3A x 1 |
| Audio | 3.5mm Jack x 1, S/PDIF x 1 |
| Speaker | Stereo Speaker: 2W x 2, Amplifier: 1.25W x 2 |

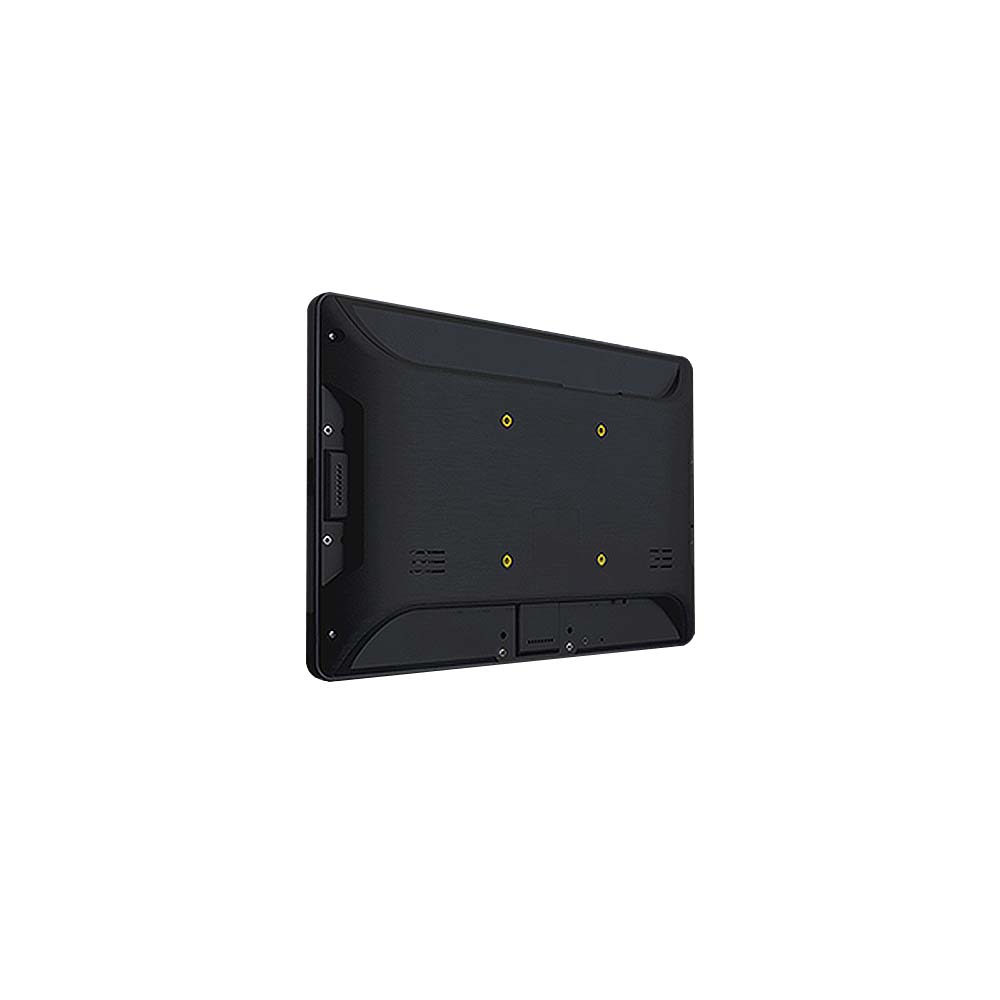

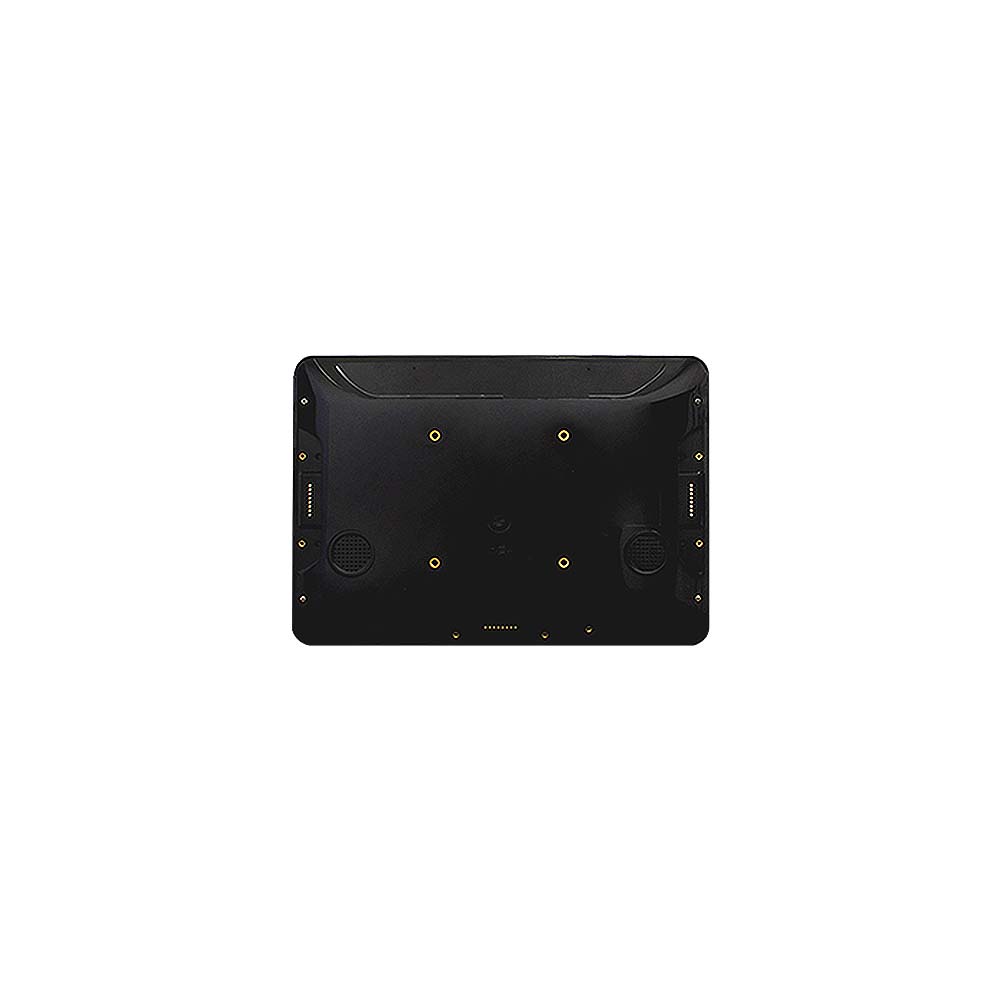

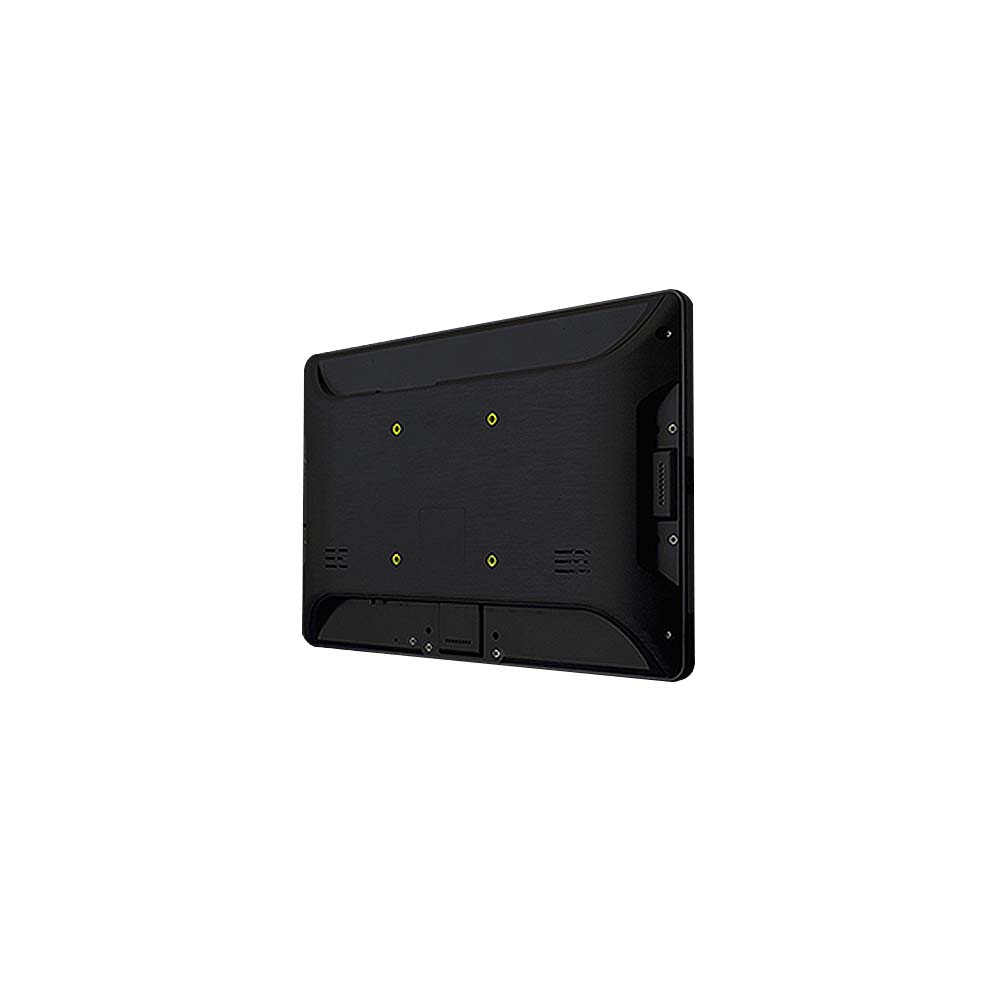

| Mount | VESA 75x75mm |
| ENVIRONMENT | |
| Operating Temp. | 0°C - 40°C (32° - 104°F) |
| Storage Temp. | -10°C - 55°C (14°F - 131°F) |
| Relative Humidity | 10% - 90% (Non-Condensing) |
| PACKAGE | |
| Dimension | 1"(L) x 11.6"(W) x 7.4"(H) |
| Weight | 2.1 lbs. |
