12″ Payment Terminal

The TEAMSable APT-120 is a next-generation smart terminal that incorporates EMV, NFC & MSR card reader capabilities.

SKU: APT120-3G Category:
Product Details
Specifications
Downloads
Overview
TEAMSable APT-120

The TEAMSable APT-120 is a next-generation smart terminal that incorporates EMV, NFC & MSR card reader capabilities. A removable 12" tablet monitor for a fully functional point of sale system experience is perfect for a countertop, line-busting, and inventory applications for retail, hospitality, and many other verticals. The APT- 120 provides maximum savings by reducing 2 terminals into 1, reducing installation timelines, and increasing overall product ROI compared to separately purchased terminal installations.

  • 12" Touch Screen
  • 1366x768 Resolution
  • 3GB RAM / 8GB eMMC
  • Wi-Fi / BT / 4G
  • USB, Ethernet
  • EMV / MSR / NFC
  • Android 5.1
Configurations
Integrated EMV & MSR
Integrated EMV & MSR

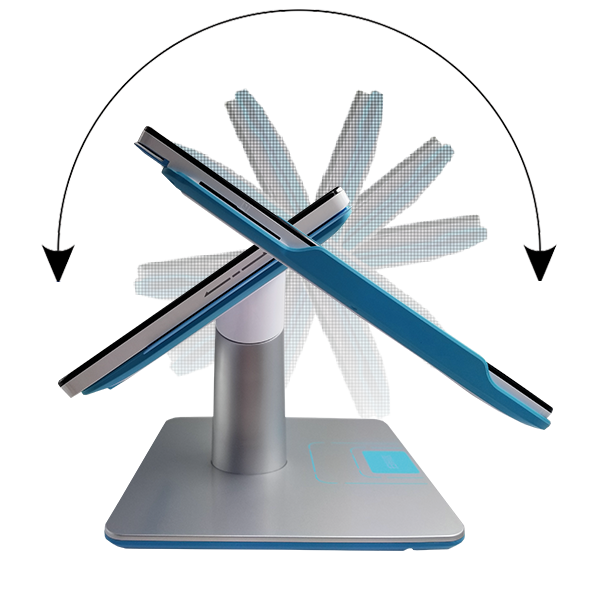

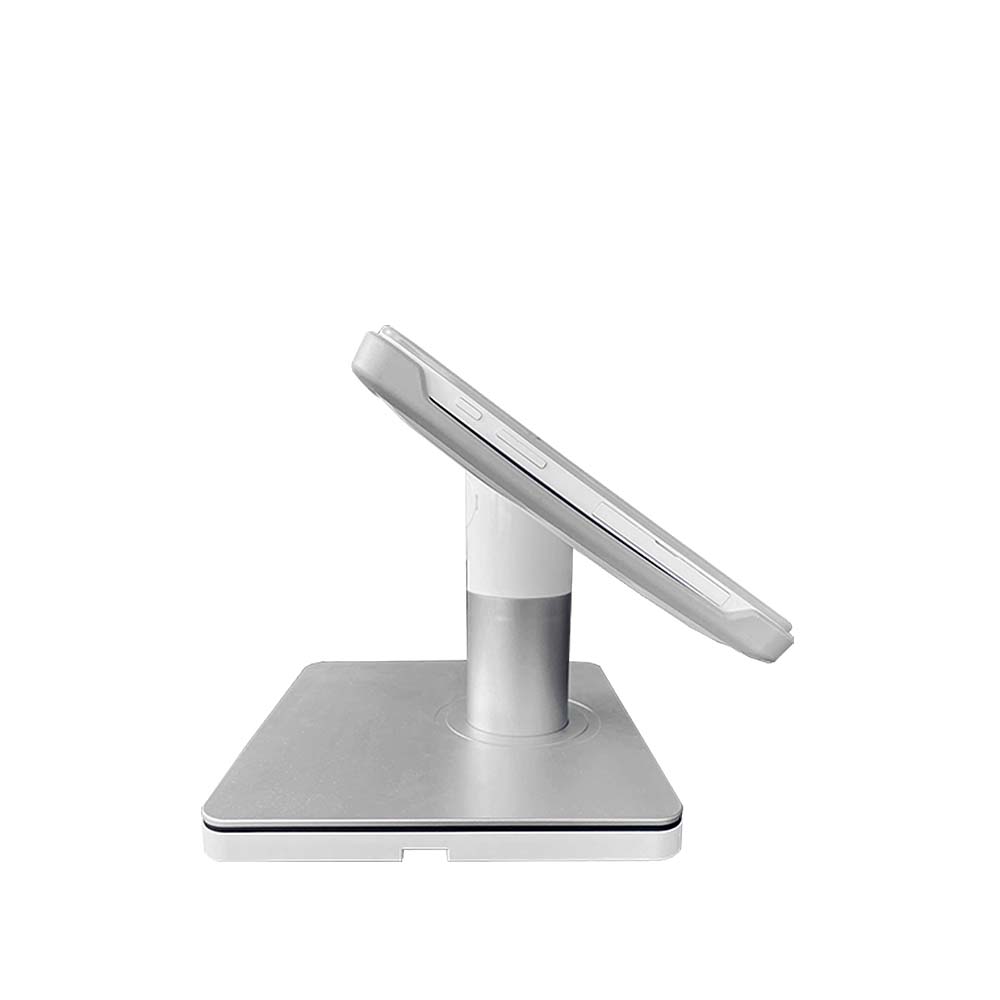

180 Degree Flip Design
180 Degree Flip Design
Customer Facing Application
Customer Facing Application
Packaging
Box Details 14"(L) x 14.75"(W) x 12.5"(H)
Weight: 9.5lb
Inside the Box 12" Payment Terminal
AC Adapter
Docking Stand / Connectivity Hub
HARDWARE
Display 12" IPS Panel
Resolution 1366x768
Touch Technology 5 Point Capacitive
CPU QuadCore 1.2GHz
Storage 8GB eMMC
TF-CARD Up to 32GB
WIRELESS CONECTIVITY
WIFI IEEE 802.11b/g/n, WLAN 2.4GHz+5GHz
Bluetooth BLE 4.0 Dual Mode, V4.)+EDR
GPS Built-in GPS
Cellular Module 3G
OS SUPPORT
Android Android 5.1
INTEGRATED PERIPHERALS
MSR 3 Tracks, ISO 7810&7811, PCI 4.X & EMV Co.
EMV READER ISO 7816, Encrypted Head, PCI 4.X & EMV Co.
NFC ISO/ IEC 14443, Type A&B
PORTS ON TABLET
Micro USB USB OTG x 1
SIM Card 1 Slot
PSAM Card 1 Slot
Speaker Built in
Microphone Built in
Headset 3.5mm Jack
STAND
USB 3
Ethernet x1
DC Socket 2.5mm x 1
POWER
Power Supply Input 100-240V, Output 5V/2A
Battery 3.7V/6900mAh Lithium Battery
PACKAGE
Dimension 14"(L) x 14.75"(W) x 12.5"(H)
Weight 9.5 lbs
