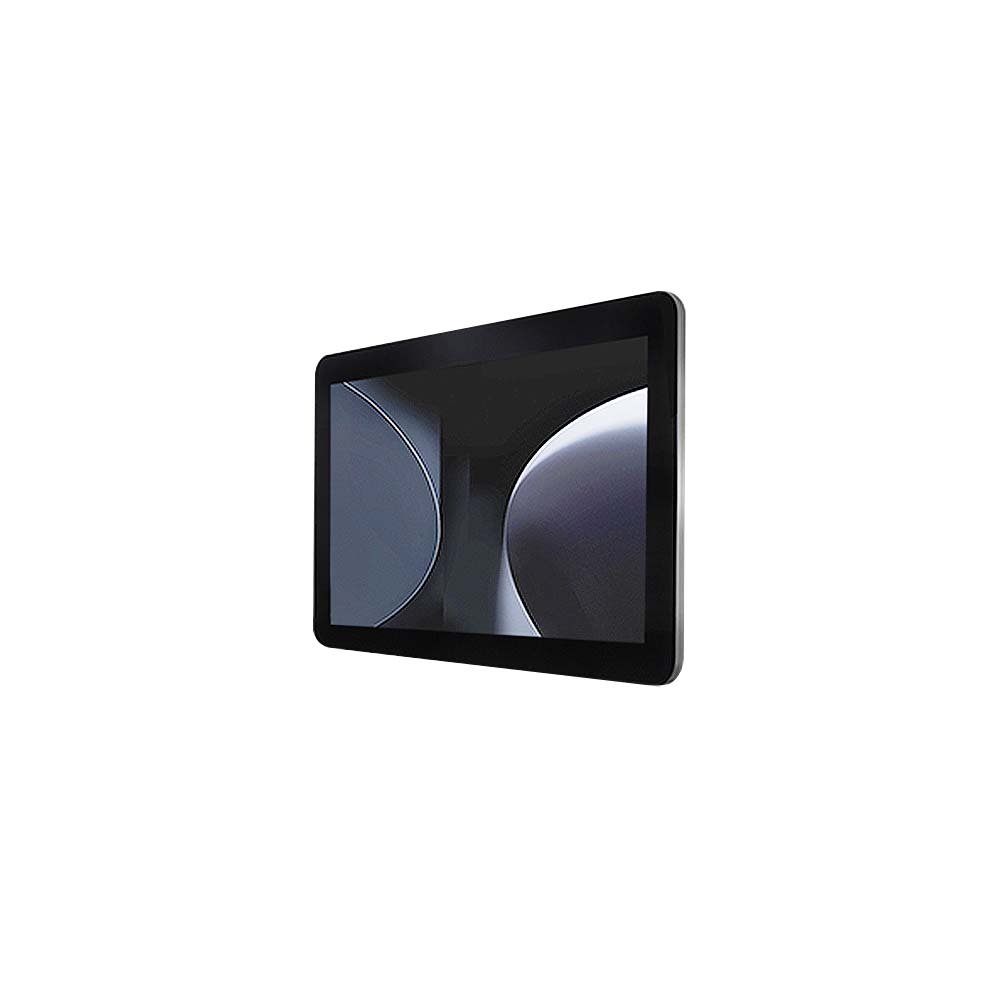

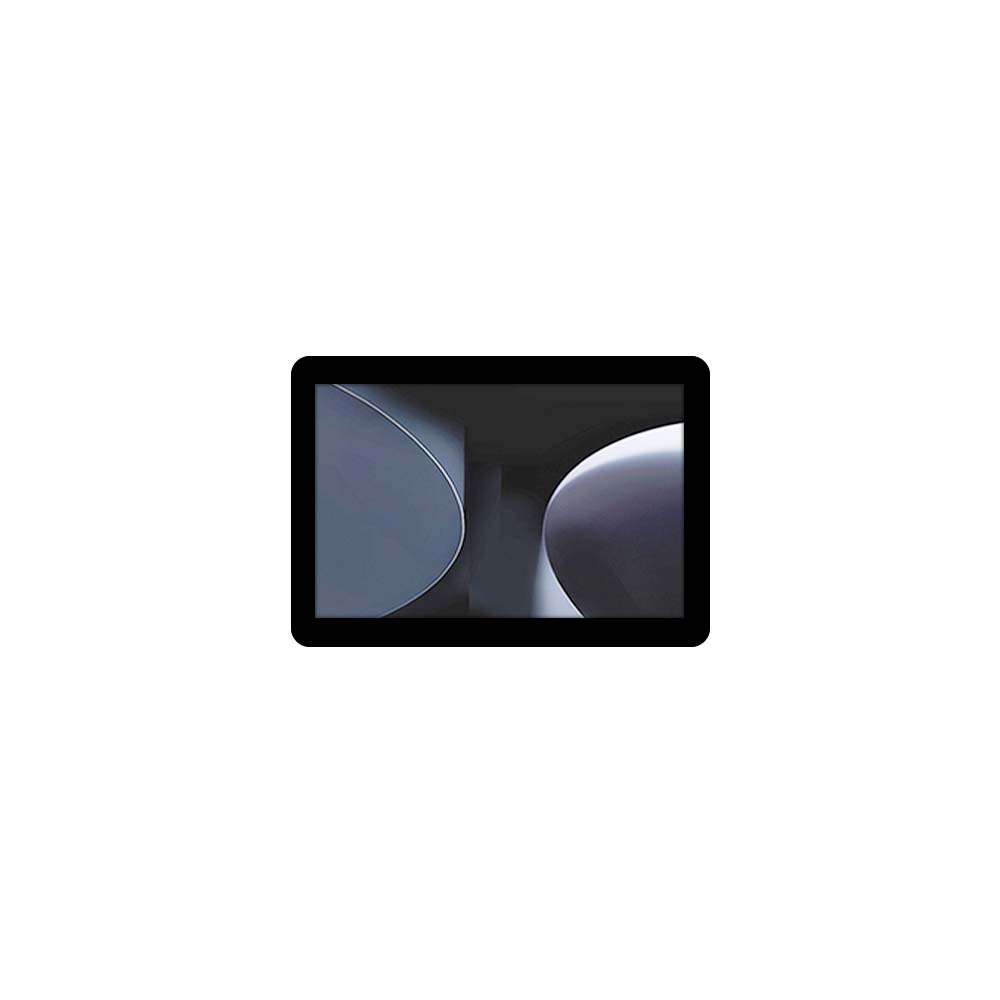

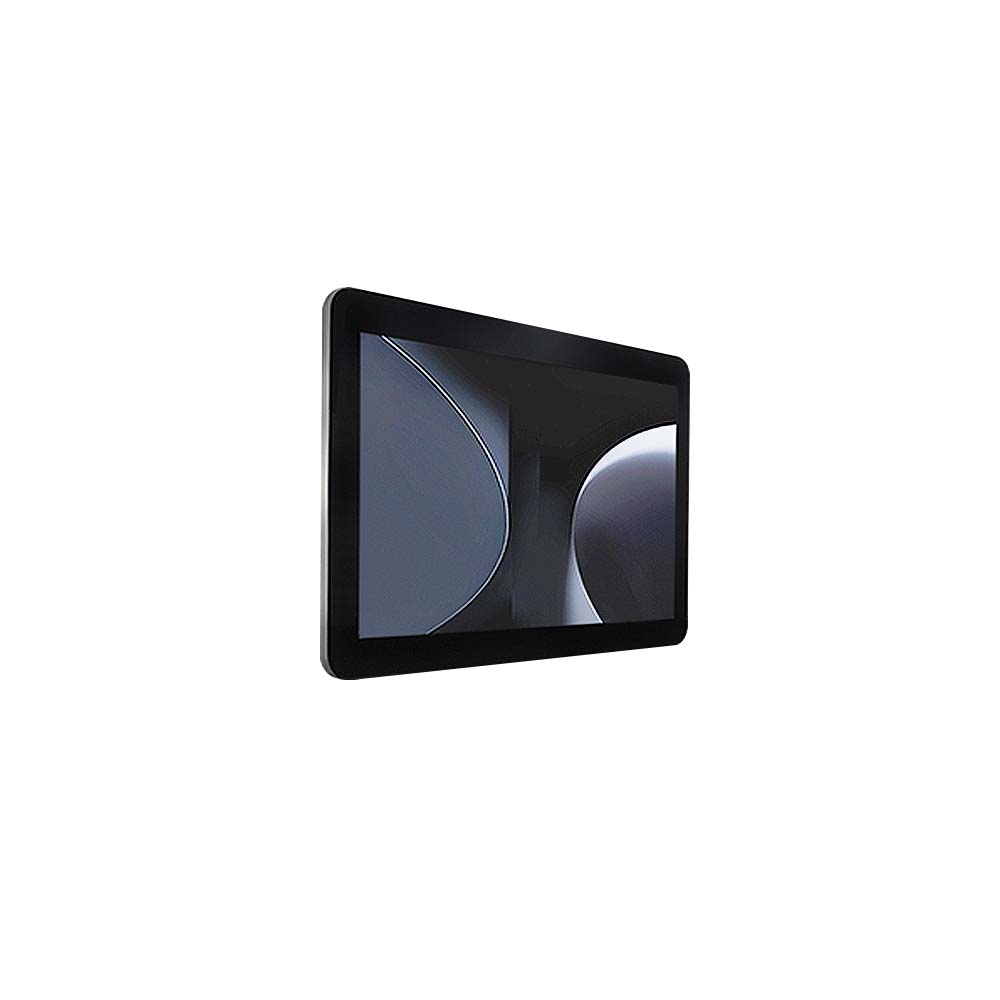

13″ Android Digital Signage

  • 13.3″ TFT LCD
  • Cortex A17, Quad Core 1.6 GHz
  • 2GB RAM / 8GB eMMC
  • Android 8.1

Custom model, please contact sales@teamsable.com for details

SKU: 13N-RM-DS Category:
Product Details
Specifications

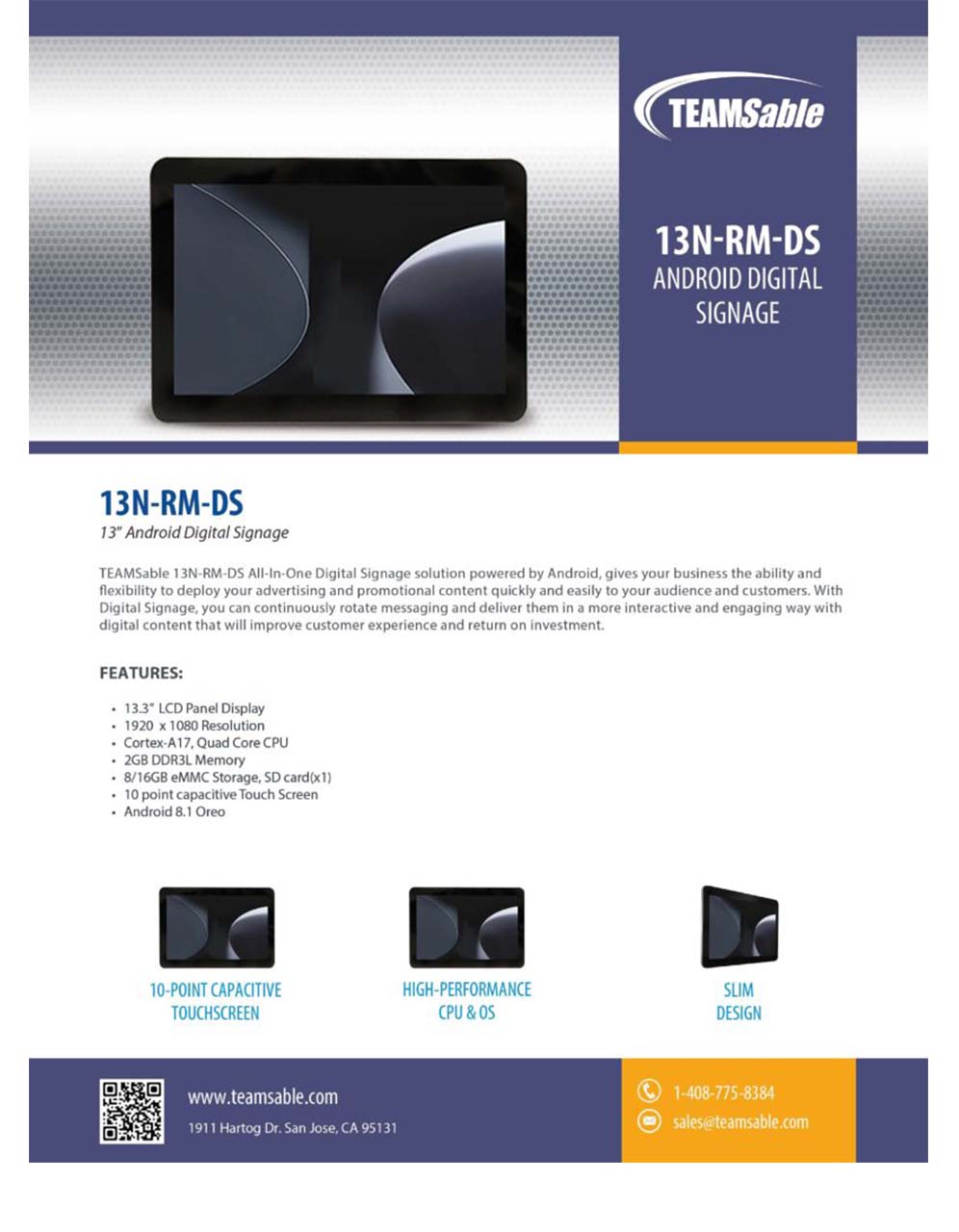

Downloads

Overview

TEAMSable 13N-RM-DS
  • 13.3" TFT LCD
  • Cortex A17, Quad Core 1.6 GHz
  • 2GB RAM / 8GB eMMC
  • Android 8.1
Configurations
13N-RM-DS
10-Point Capacitive Touchscreen

13.3" TFT LCD

13N-RM-DS
High-Performance CPU & OS

Android 8.1 / Cortex-A17 QuadCore

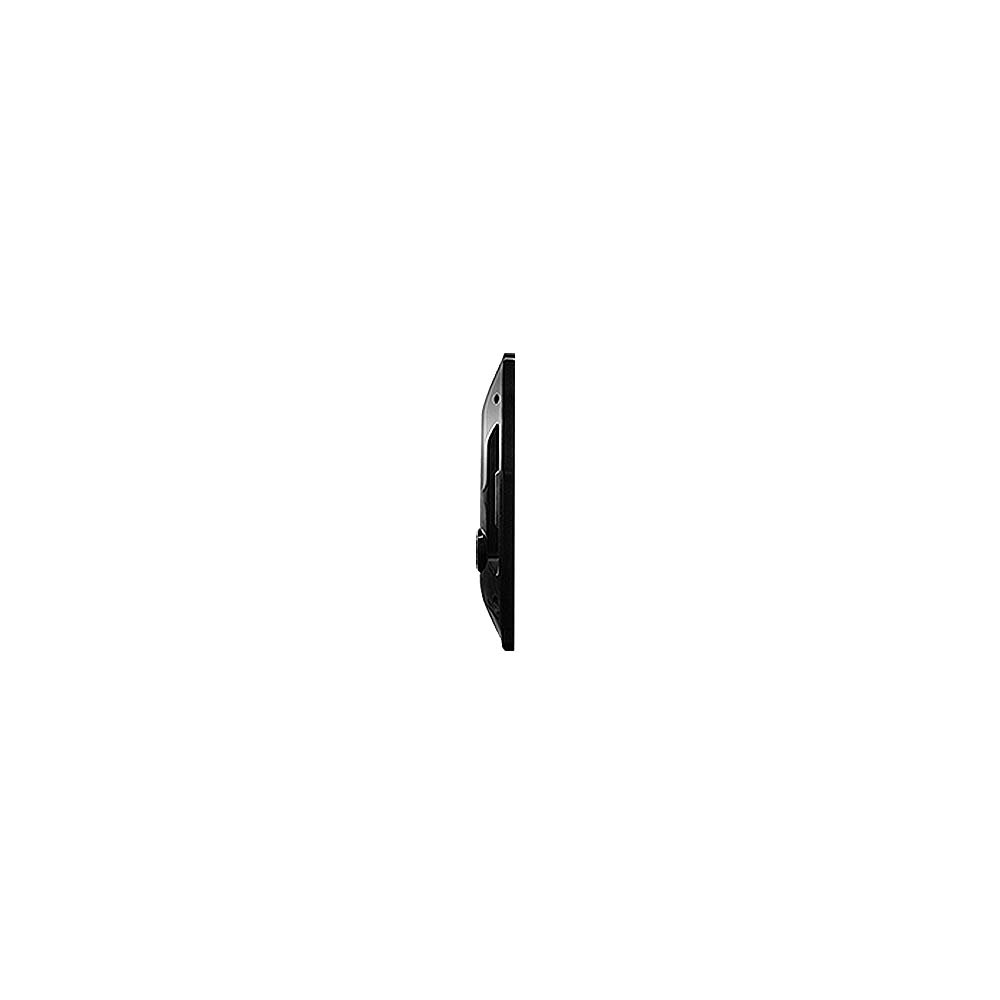

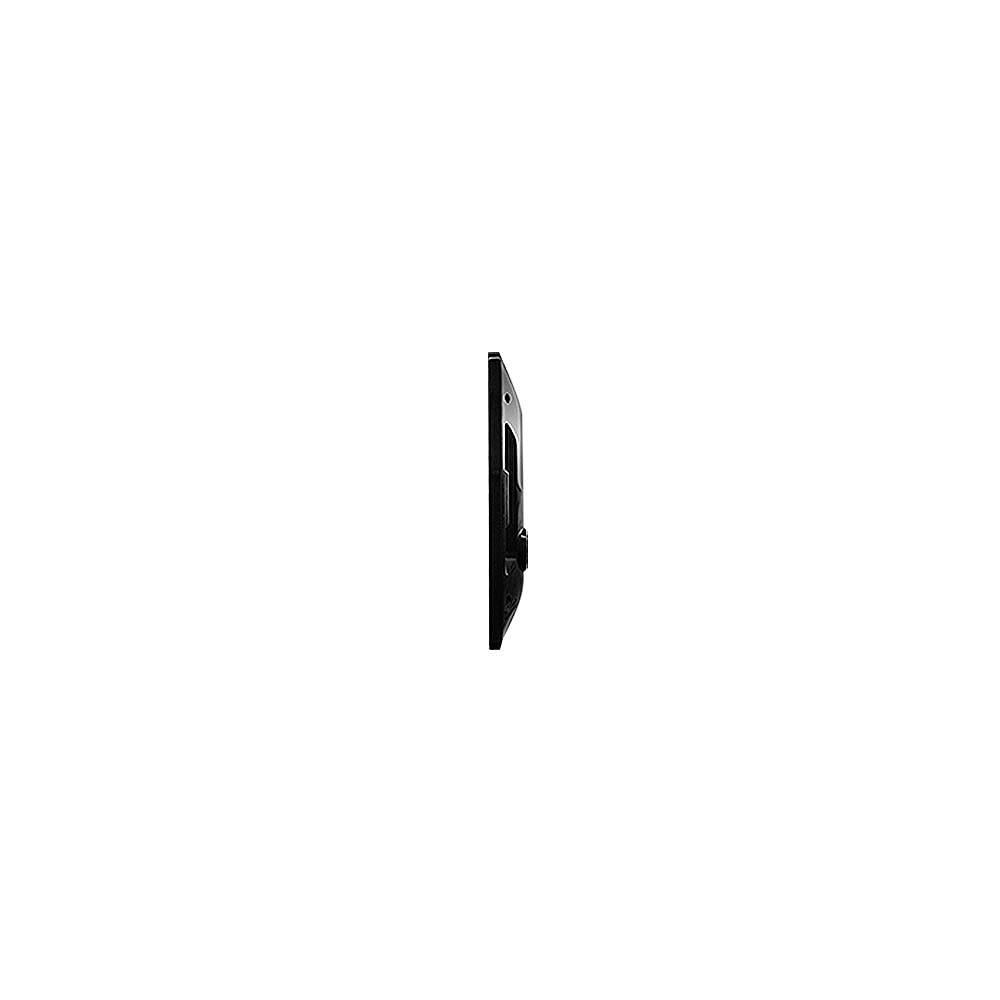

Slim Design
Slim Design
MODEL DESCRIPTION
13N-RM-DS 13.3" TFT LCD, EDP with Cortex A17 QuadCore, 2GB RAM
Packaging
BOX DETAILS INSIDE THE BOX

1"(L) x 13.2"(W) x 8.4"(H) - Weight: 2.1 lbs.

13" Android Digital Sign
Power Adapter
HARDWARE
Display 13.3" (16:9 Diagonal) TFT LCD, EDP
Resolution 1920 RGB(H) x 1080(V)
Touch Technology 10 Point Capacitive
CPU Cortex A17, QuadCore, 1.6GHz
Memory 2GB DDR3L
Storage 8GB eMMC (up to 16GB)
Power Supply 12V/3A Adapter
Wireless WiFi: IEEE 802.11a/b/g/n, Bluetooth 4.0
Ethernet RJ45: 10/100/1000 Mbps LAN, POE (Optional)
MEDIA SUPPORT
Format Video: MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV
Audio: MP2, WMA, WAV, AAC, OGG, ASF
Picture: JPG, BMP, GIF
OS SUPPORT
Android Android 8.1
EXTERNAL PORTS
USB USB 2.0 Type-A x 1
Micro USB Micro USB 2.0 x 1
SD Card Slot SD Card (SDHC Class10 compatible) x 1
Peripheral Port Peripheral Port x 3
GPIO Port GPIO x 2
Ethernet RJ45 with 5V/12V x 2
DC Adapter Slot 12V/3A x 1
Audio 3.5mm Jack x 1, S/PDIF x 1
Speaker Stereo Speaker: 2W x 2, Amplifier: 1.25W x 2

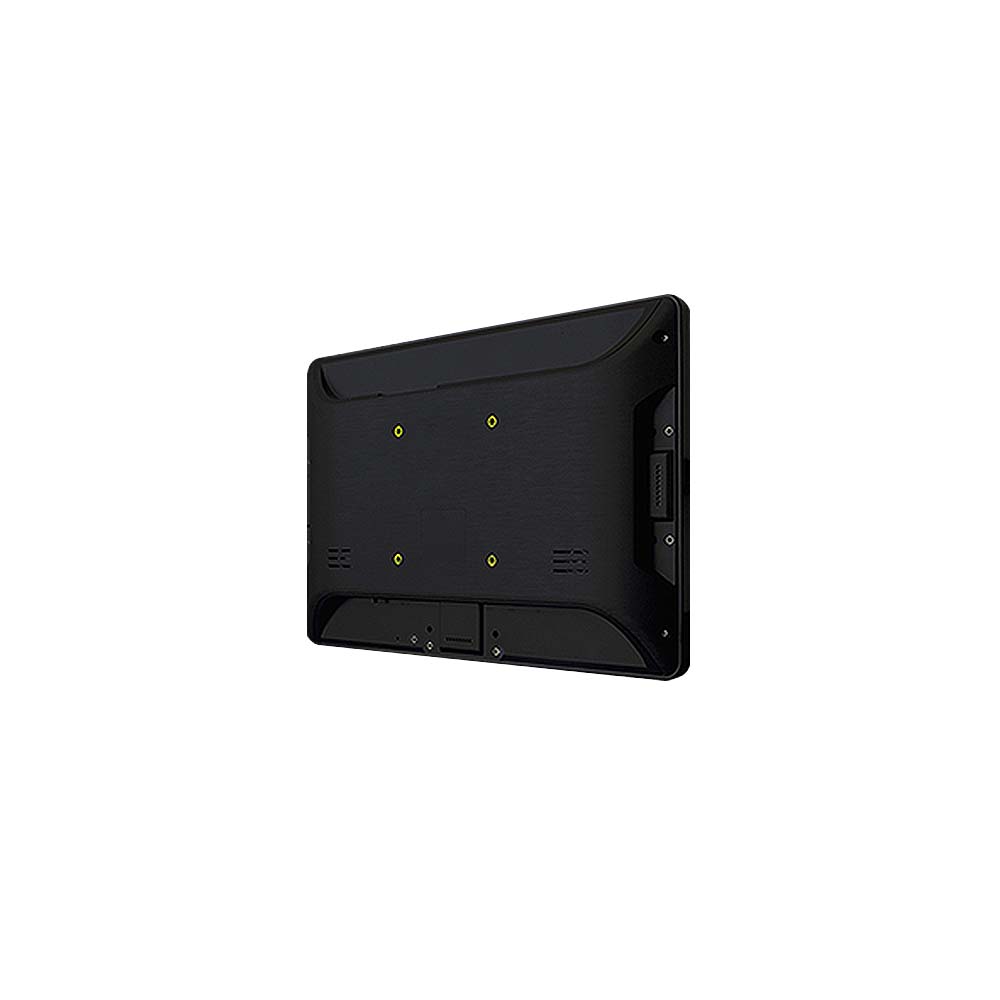

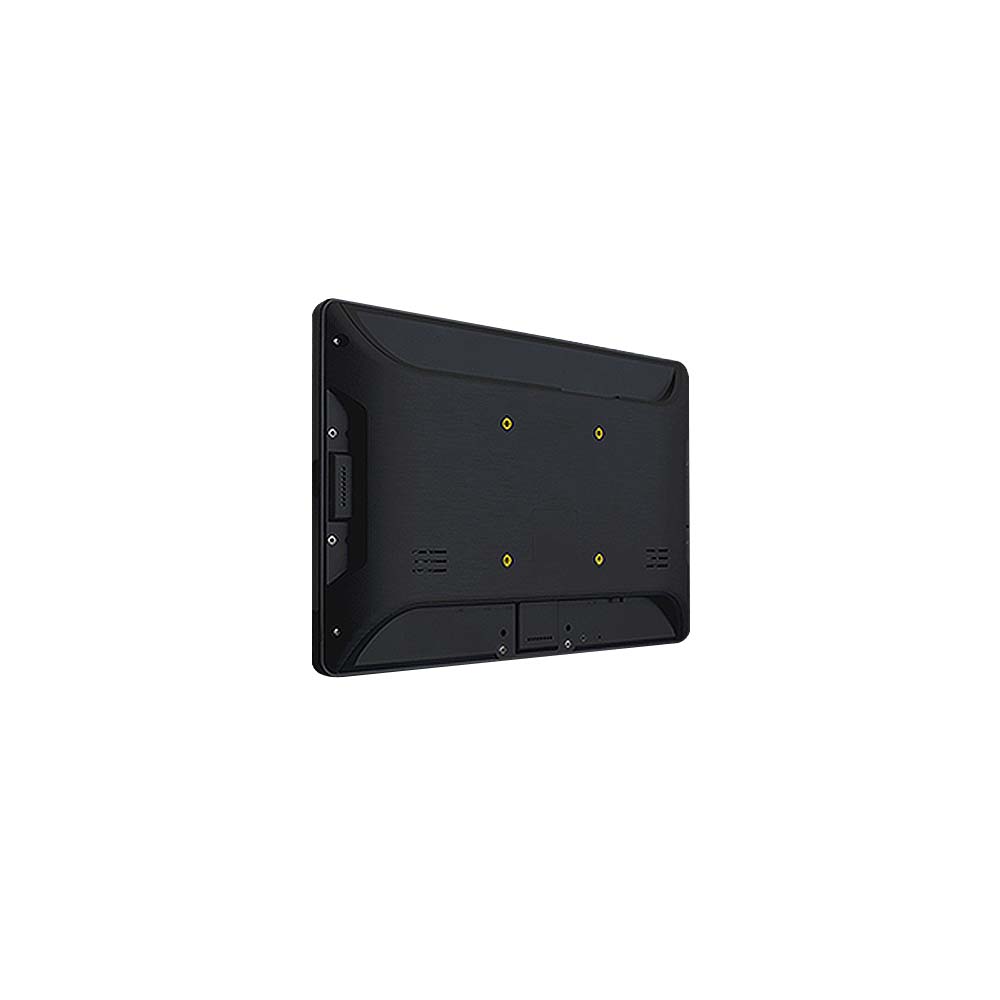

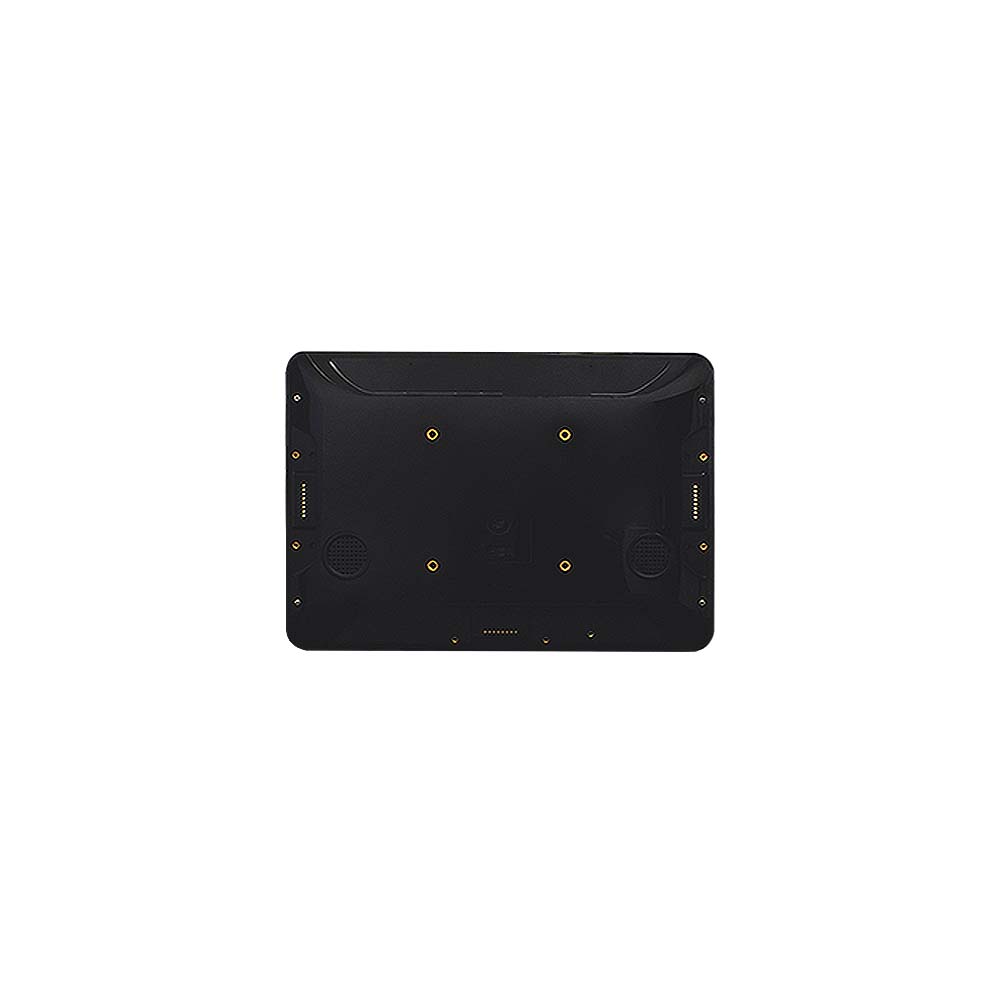

Mount VESA 100x100mm
ENVIRONMENT
Operating Temp. 0°C - 40°C (32° - 104°F)
Storage Temp. -10°C - 55°C (14°F - 131°F)
Relative Humidity 10% - 90% (Non-Condensing)
PACKAGE
Dimension 1"(L) x 13.2"(W) x 8.4"(H)
Weight 2.1 lbs.
