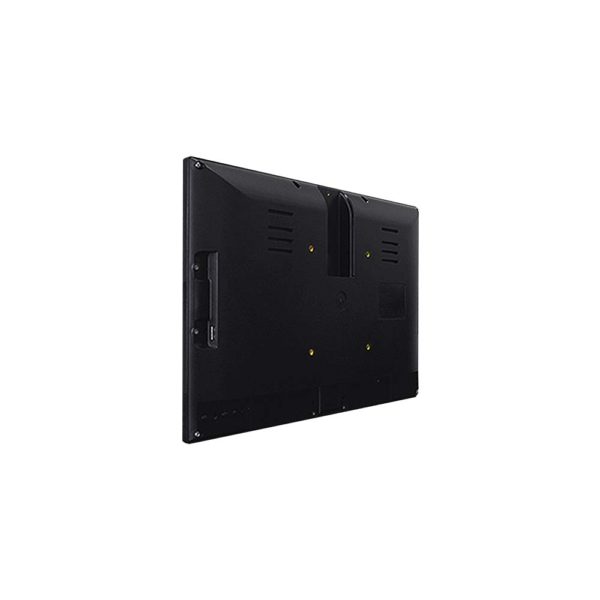

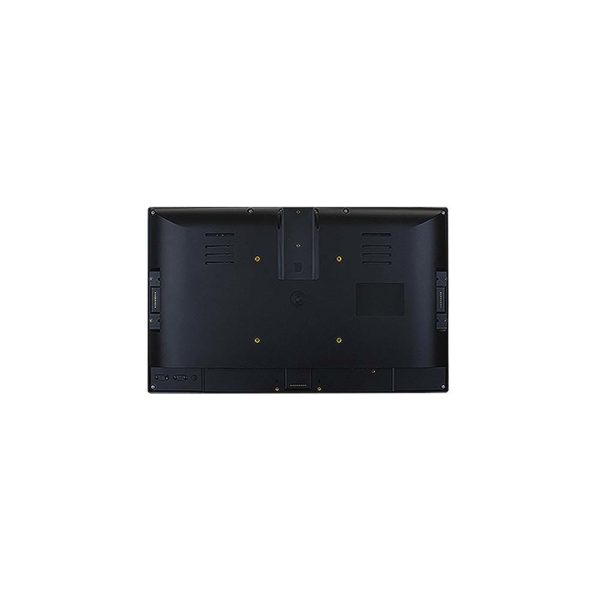

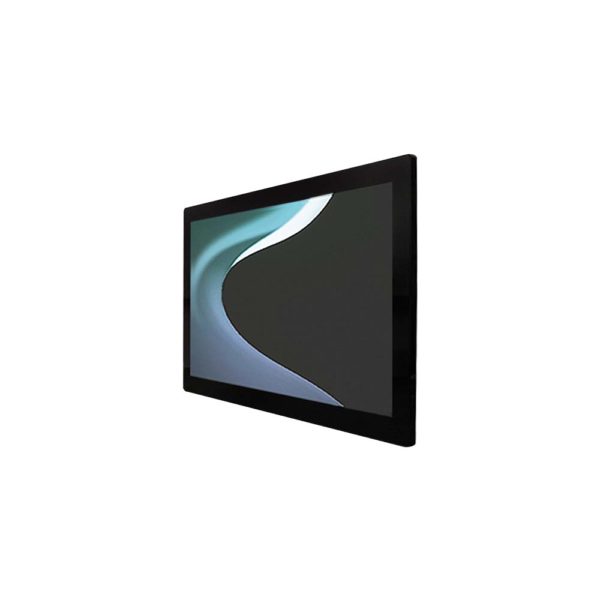

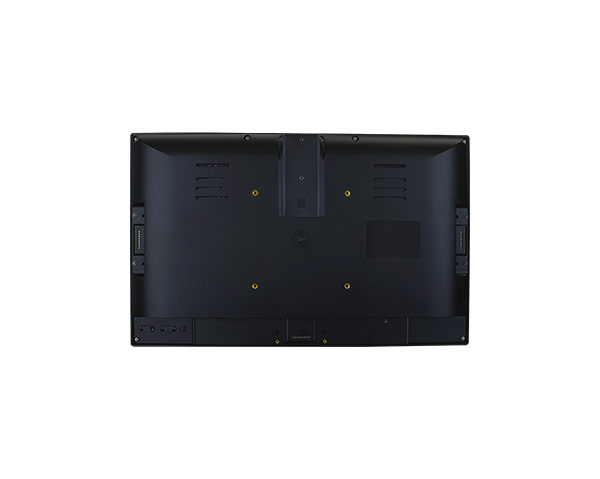

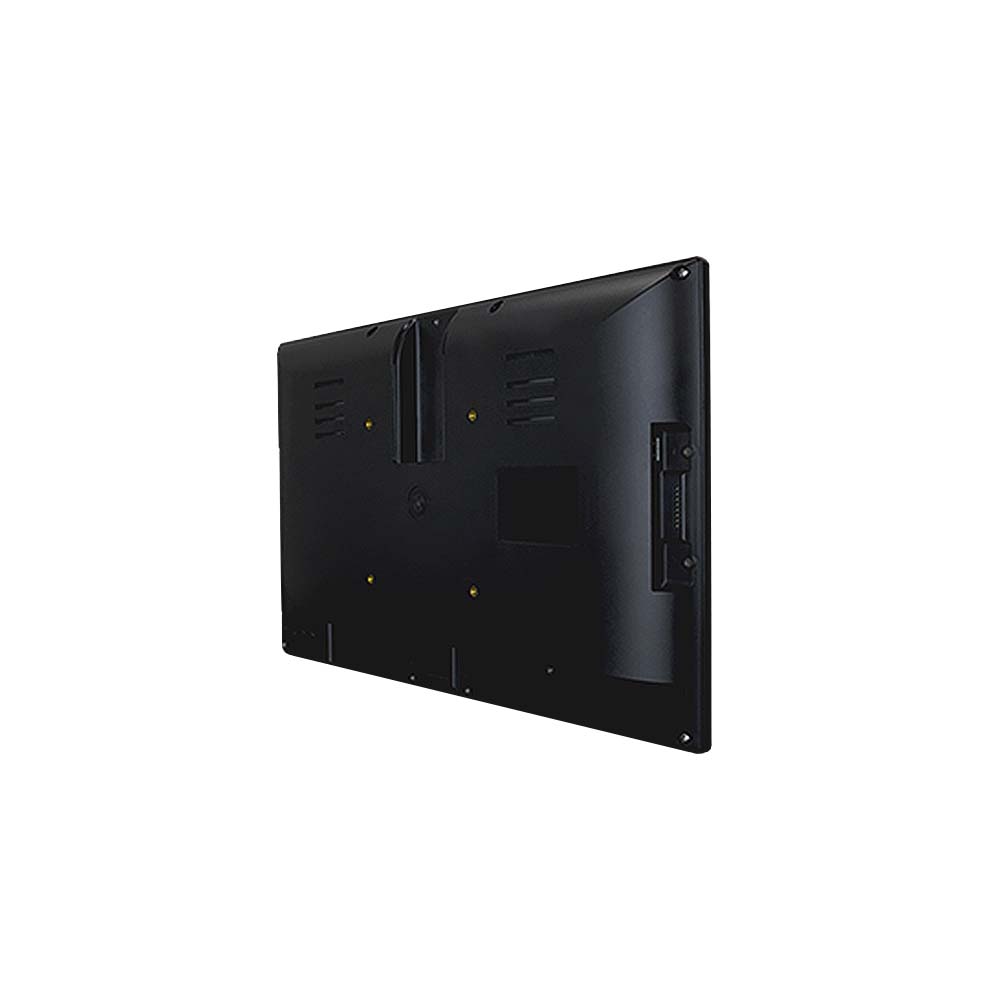

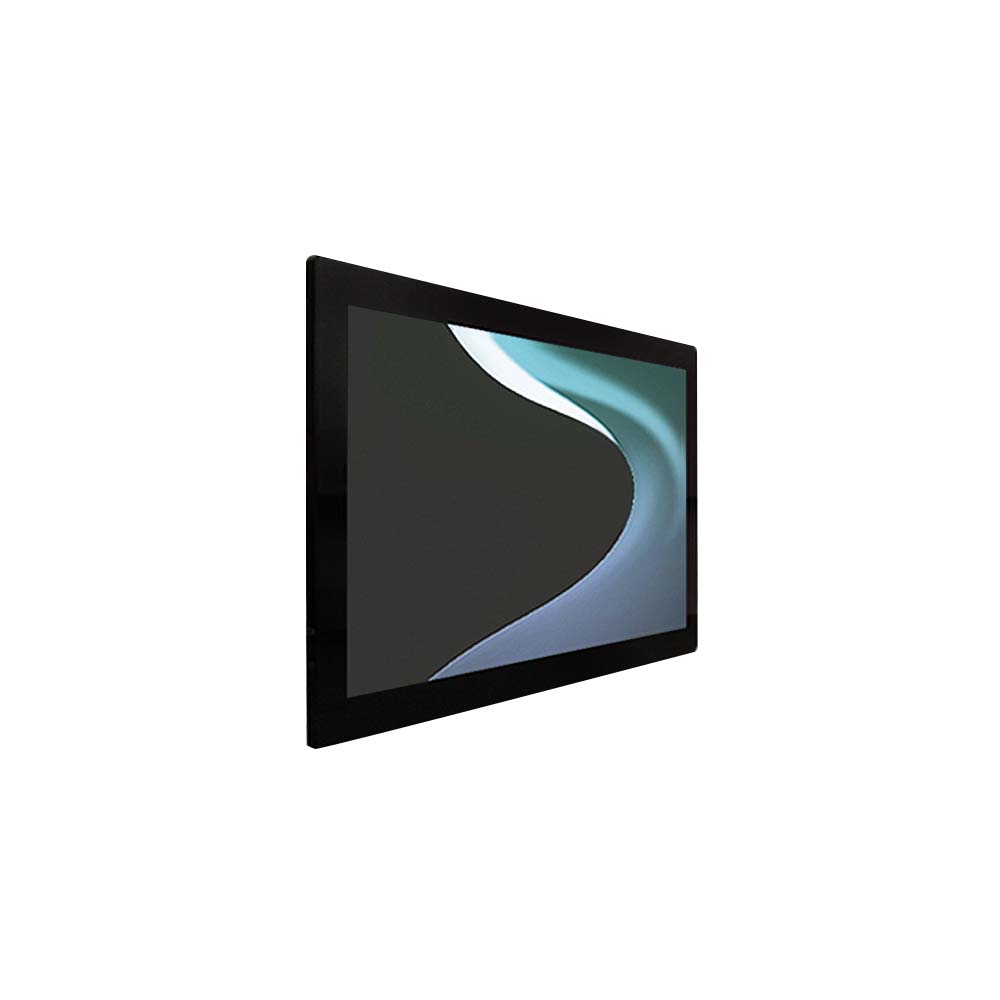

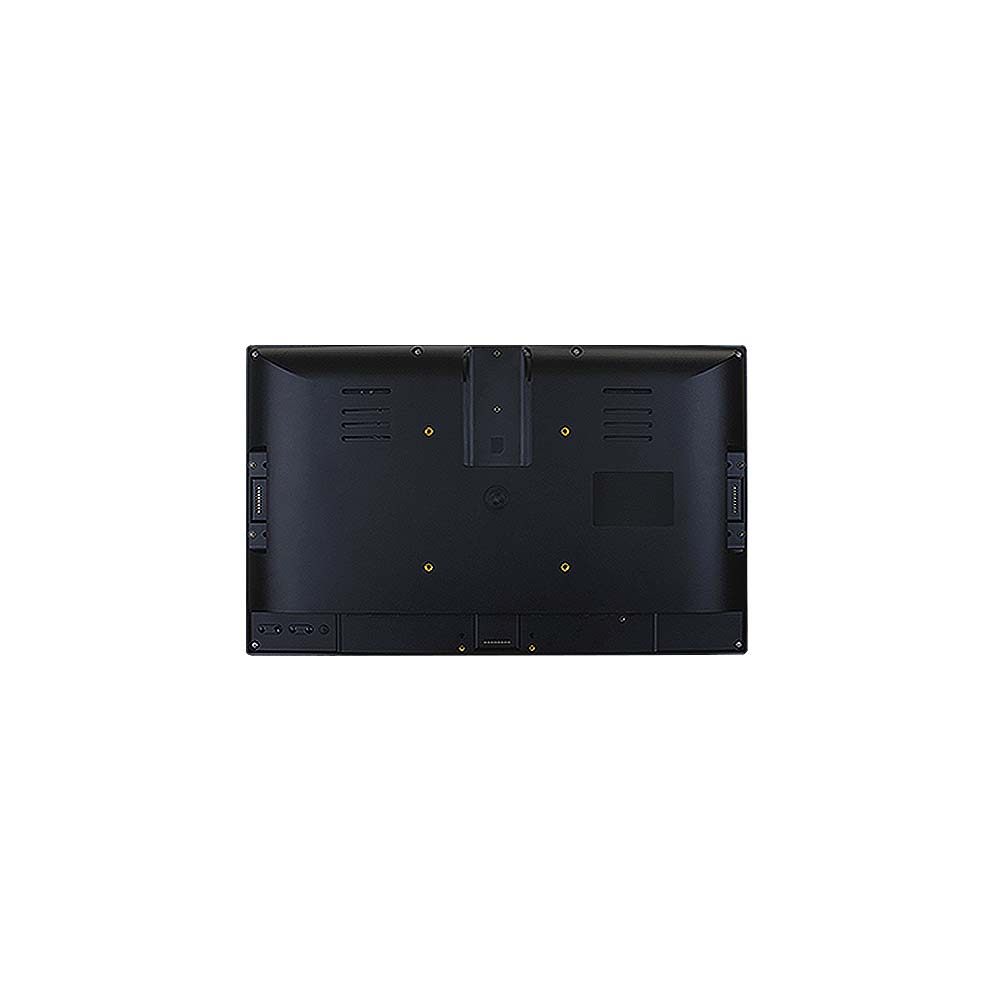

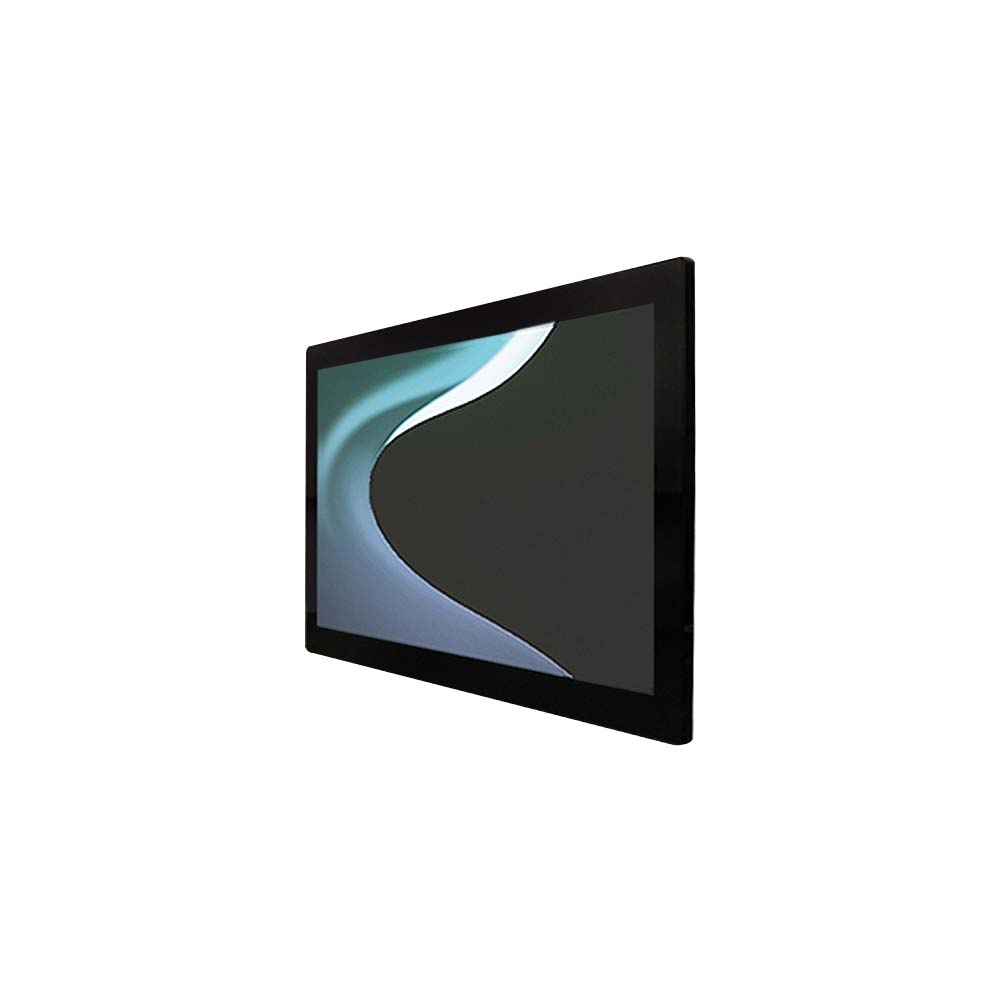

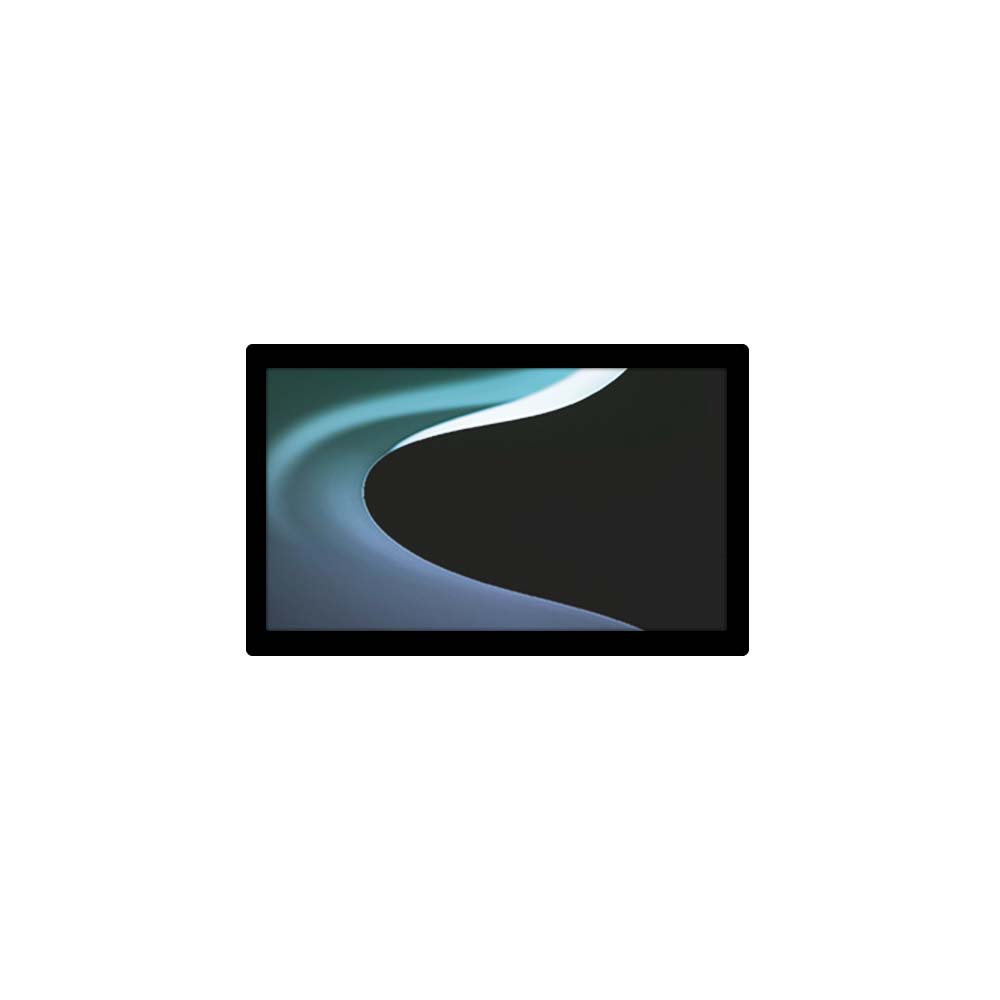

15″ Android Digital Signage
- 15.6″ TFT LCD
- Cortex A17, QuadCore 1.6GHz
- 2GB RAM / 8GB eMMC
- Android 9.0
Product Details
Specifications

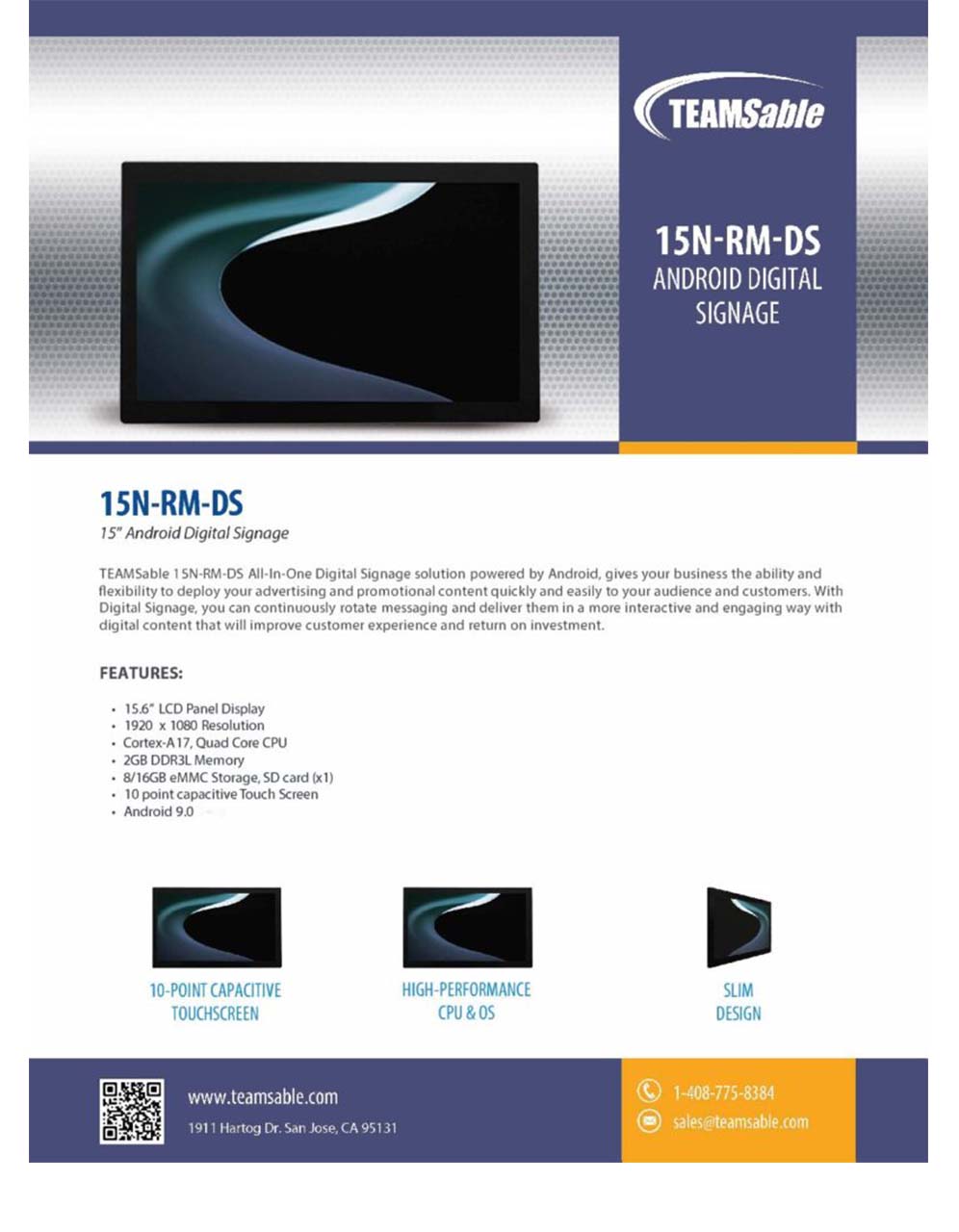

Downloads
Overview
TEAMSable 15N-RM-DS
- 15.6" TFT LCD
- Cortex A17 / Cortex A72+A53
- 2GB / 4GB RAM
- 8GB / 16GB eMMC
- Android 9.0
Configurations
Capacitive Touchscreen
Wall-mount bracket (Optional)

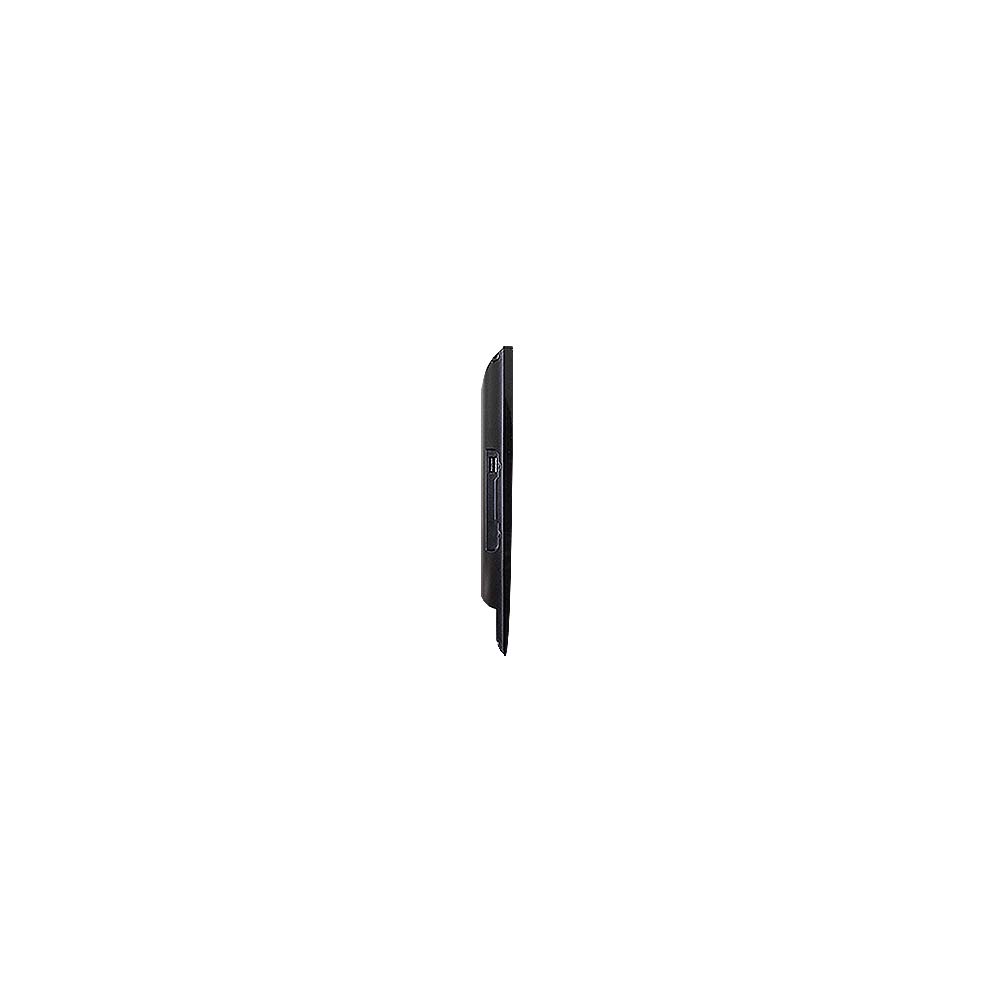

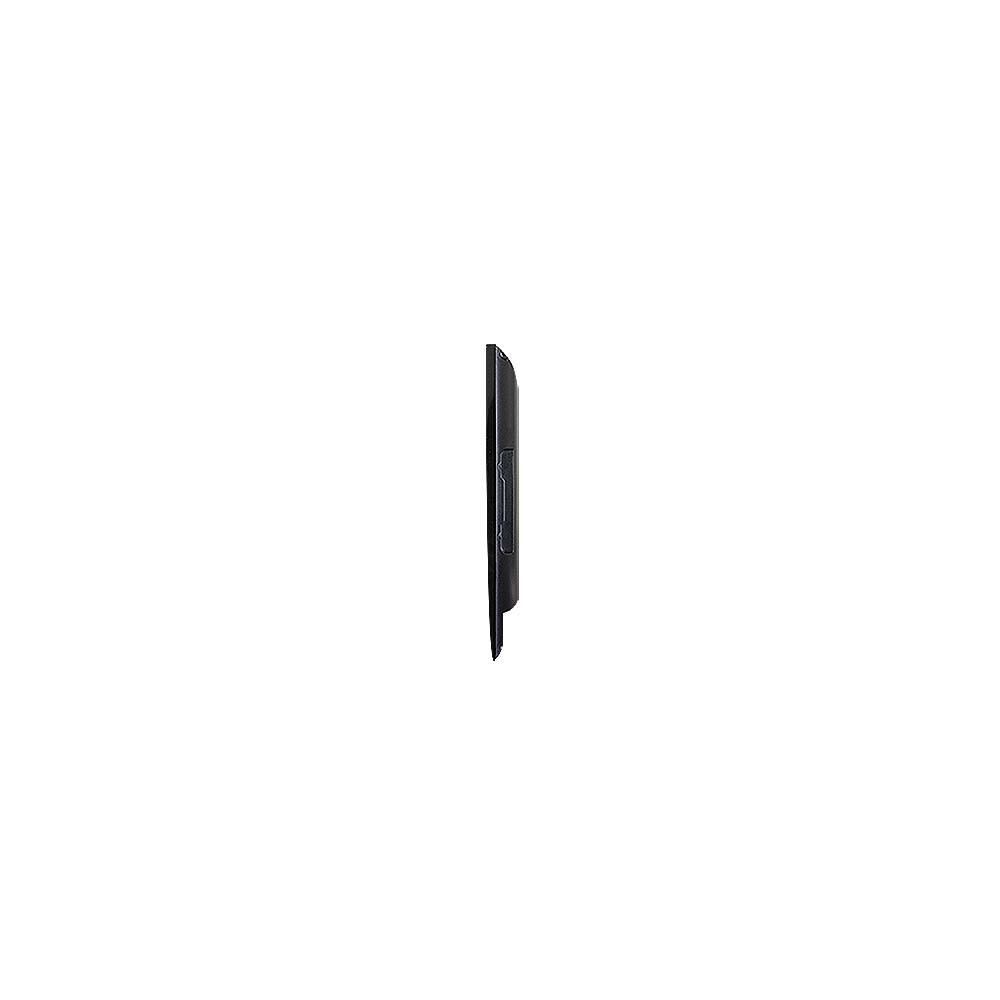

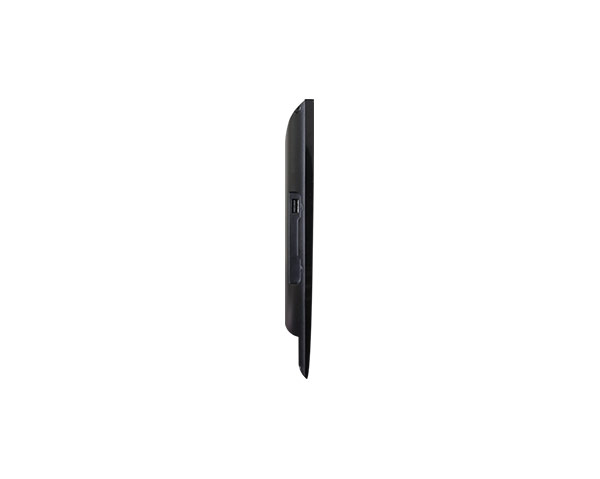

Slim Design
| MODEL | DESCRIPTION | |
| 15N-RM-DS | 15.6″ TFT LCD, EDP with Cortex A17 QuadCore, 2GB RAM | |
| 15N-RM-DS-WH | 15.6″ TFT LCD, EDP with Cortex A17 QuadCore, 2GB RAM, WH | |
| 15N-RMX-DS | 15.6″ TFT LCD, EDP with Cortex A72+A53, SixCore, 4GB RAM | |
| 15N-RMX-DS-WH | 15.6″ TFT LCD, EDP with Cortex A72+A53 SixCore, 4GB RAM, WH | |
| TSA-BK101 | Wall mount kit 75×75 or 100×100 mm |
Packaging
| BOX DETAILS | INSIDE THE BOX |
| 19" (L) x 9" (W) x 15.25" (H) inches Weight: 9 lbs |
15" Android Digital Sign Power Adapter Wall-mount bracket ( Optional ) |
| HARDWARE | |
| Display | 15.6" (16:9 Diagonal) TFT LCD, LVDS |
| Resolution | 1920 RGB(H) x 1080(V) |
| Touch Technology | 10 Point Capacitive |
| CPU | Cortex A17, Quad Core, 1.6GHz / Cortex A72+A53 Six Core, 1.7GHz |
| Memory | 2GB/ 4GB RAM |
| Storage | 8GB/ 16GB eMMC |
| Power Supply | 12V/5A Adapter |
| Wireless | Wi-Fi: IEEE 802.11a/b/g/n, Bluetooth 4.0 |
| Ethernet | RJ45: 10/100/1000 Mbps LAN, POE (Optional) |
| MEDIA SUPPORT | |
| Format | Video: MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV Audio: MP2, WMA, WAV, AAC, OGG, ASF Picture: JPG, BMP, GIF |
| OS SUPPORT | |
| Android | Android 9.0 |
| EXTERNAL PORTS | |
| USB | USB 2.0 Type-A x 1 |
| Micro USB | Micro USB 2.0 x 1 |
| SD Card Slot | SD Card (SDHC Class10 compatible) x 1 |
| Peripheral Port | Peripheral Port x 3 |
| GPIO Port | GPIO x 2 |
| Ethernet | RJ45 with 5V/12V x 2 |
| DC Adapter Slot | 12V/5A x 1 |
| Audio | 3.5mm Jack x 1, S/PDIF x 1 |
| Speaker | Stereo Speaker: 3W x 2, Amplifier: 1.25W x 2 |
| Mount | VESA 100x100mm |
| ENVIRONMENT | |
| Operating Temp. | 0°C - 40°C (32° - 104°F) |
| Storage Temp. | -10°C - 55°C (14°F - 131°F) |
| Relative Humidity | 10% - 90% (Non-Condensing) |
| PACKAGE | |
| Dimension | 19" (L) x 9" (W) x 15.25" (H) inches |
| Weight | 9 lbs |
