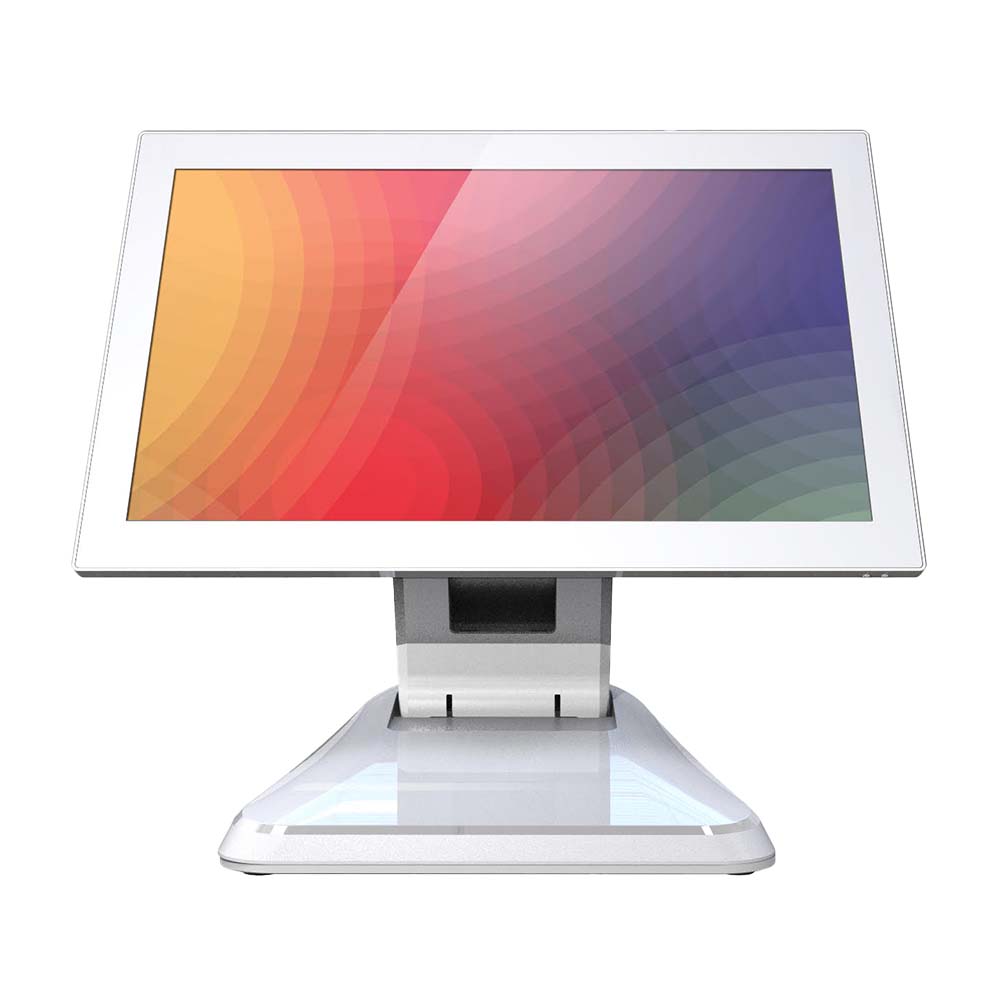

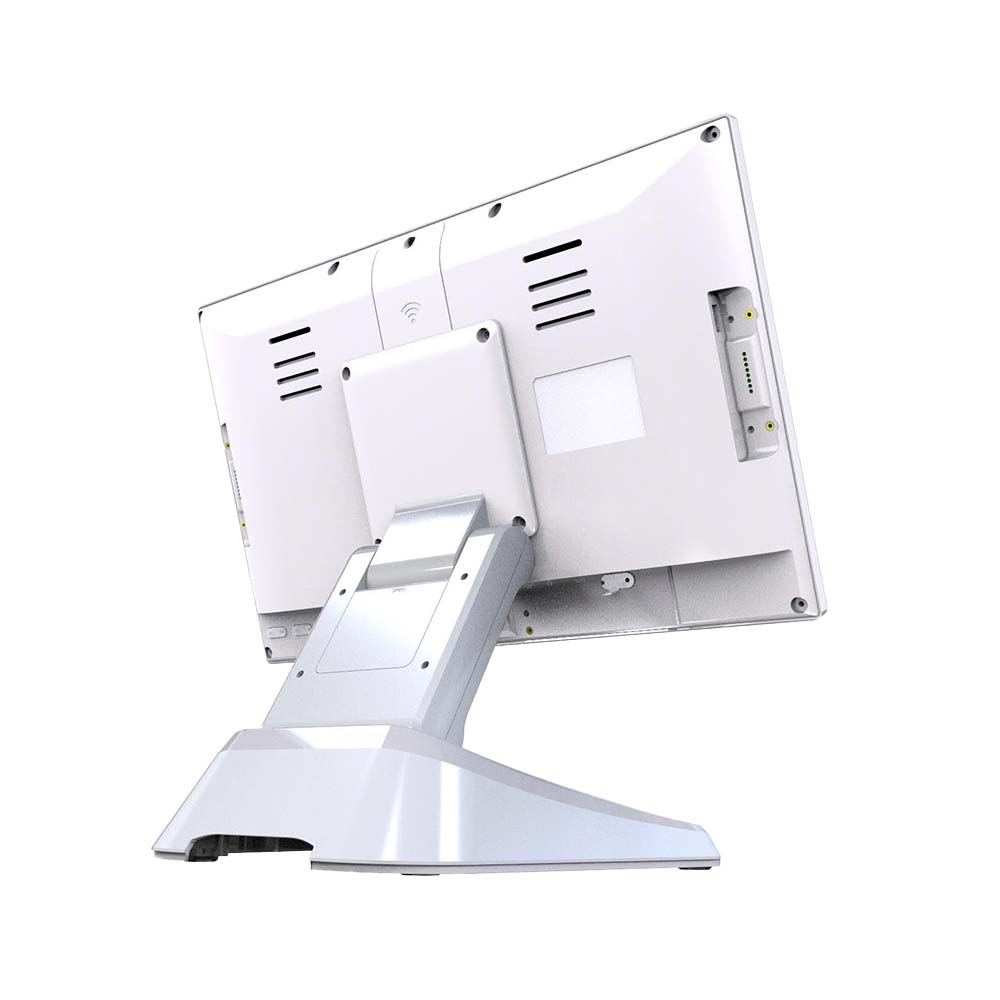

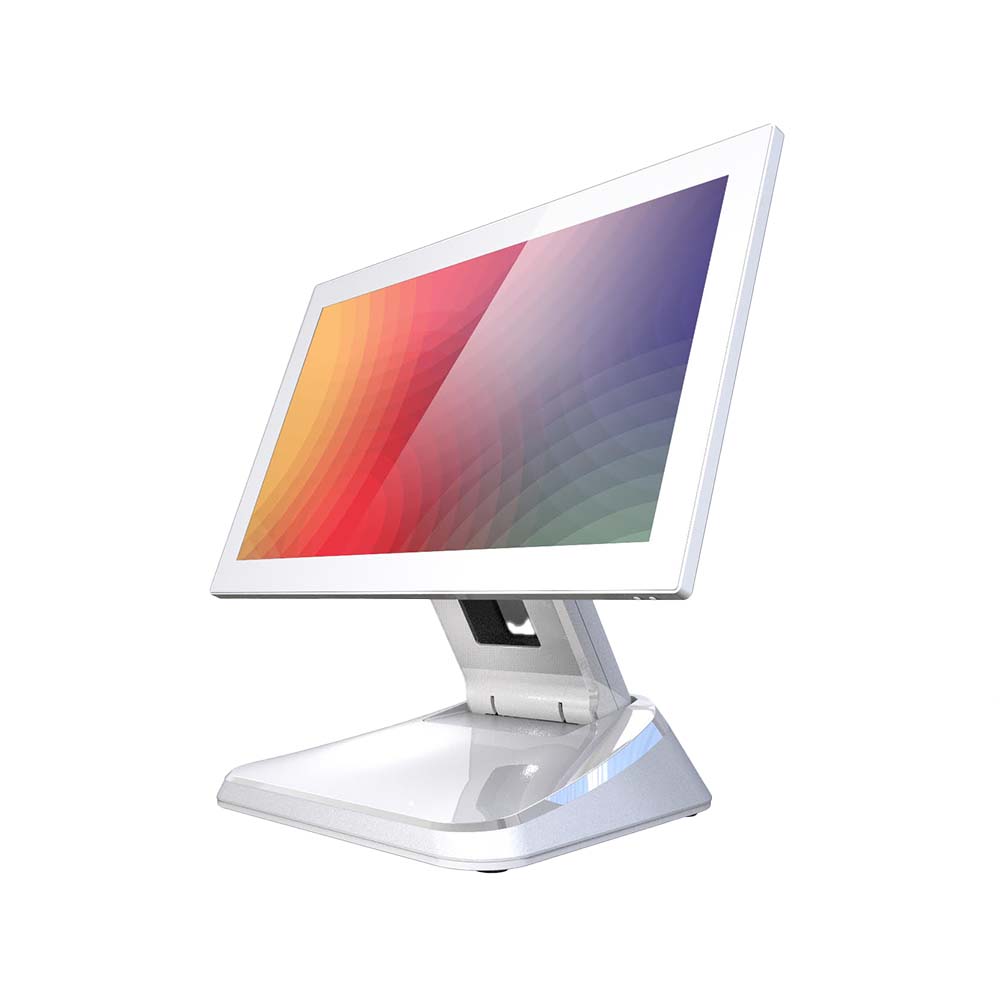

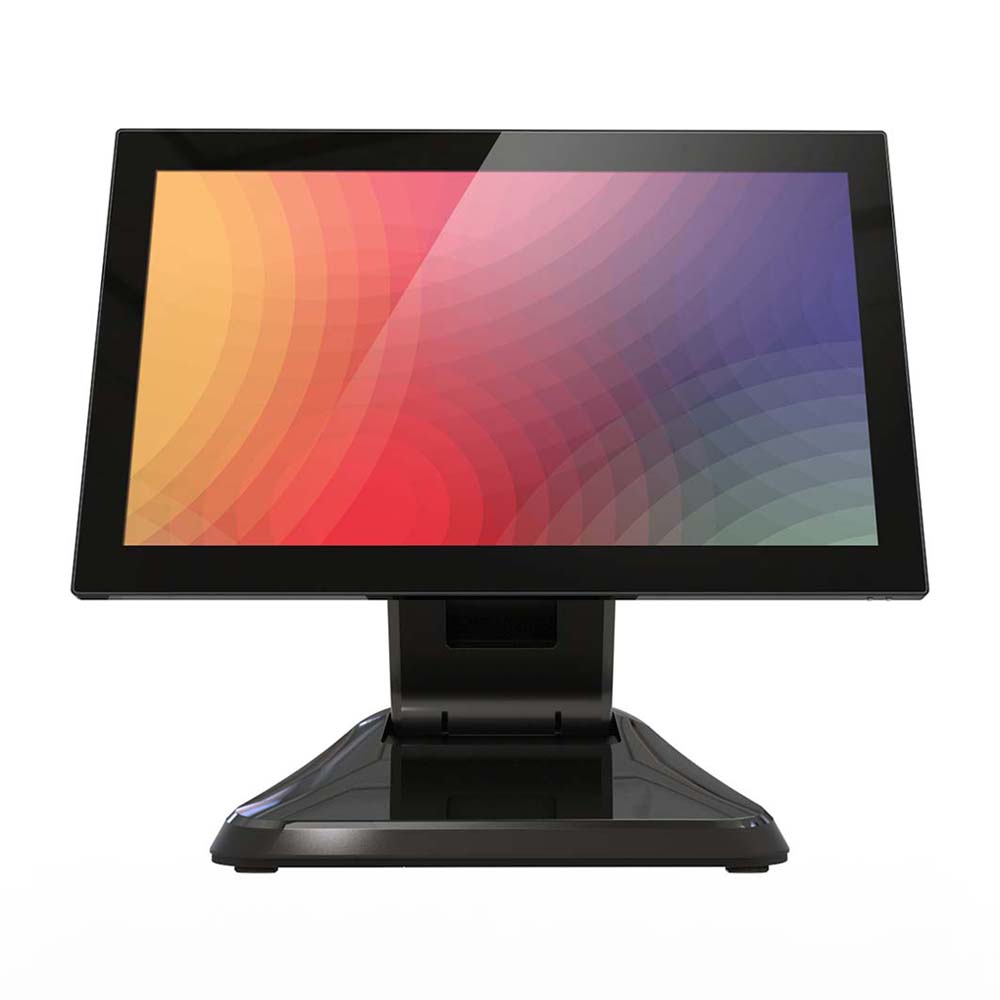

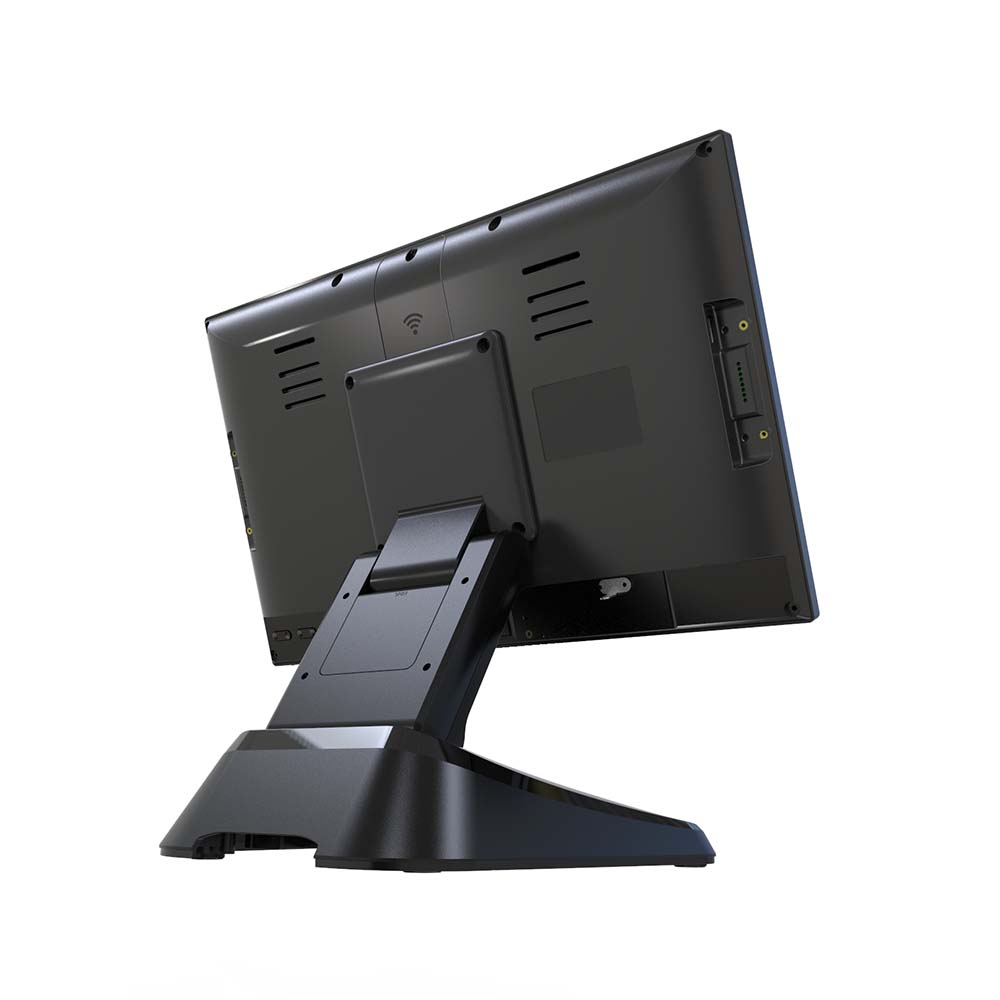

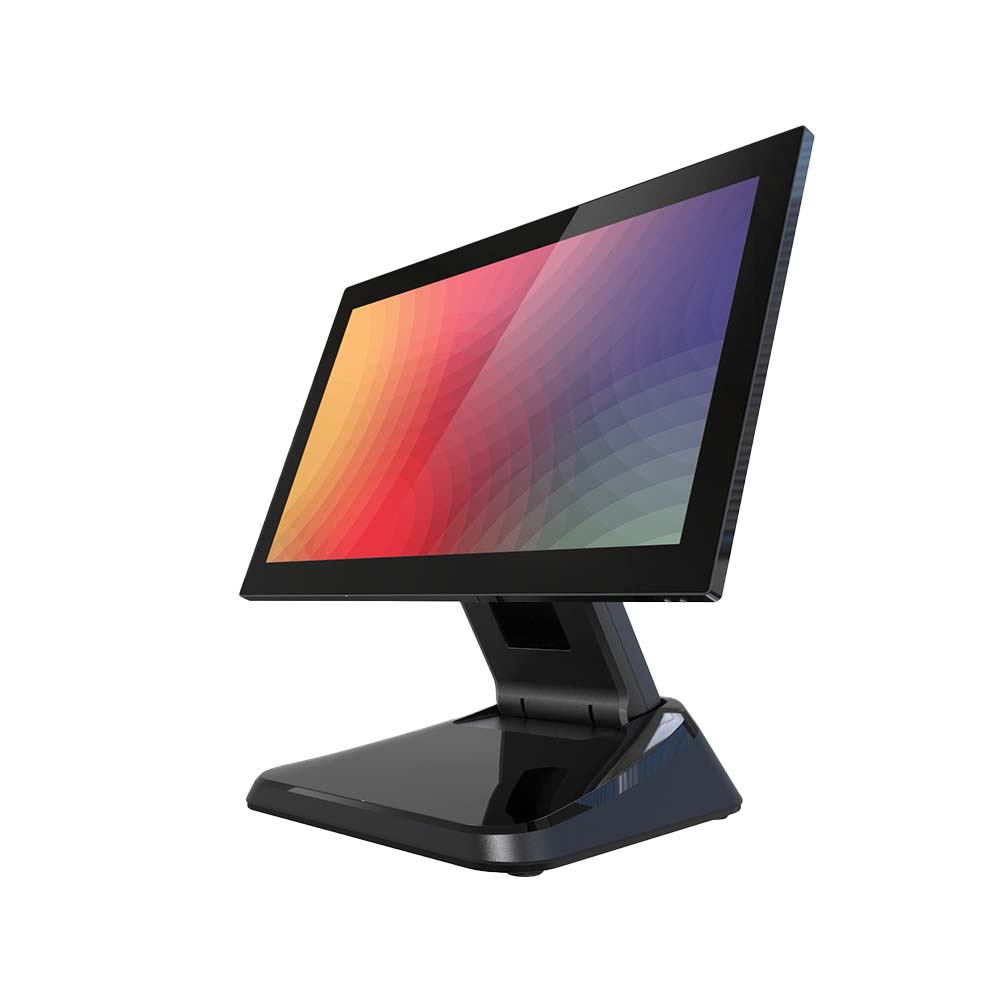

15″ Android POS System

  • Cortex A17/ Cortex A72+A53
  • 2GB/ 4GB RAM
  • 8GB/ 16GB eMMC
  • Android 9.0
SKU: TSA-15N-RM Category:
Product Details
Specifications

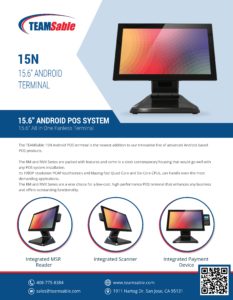

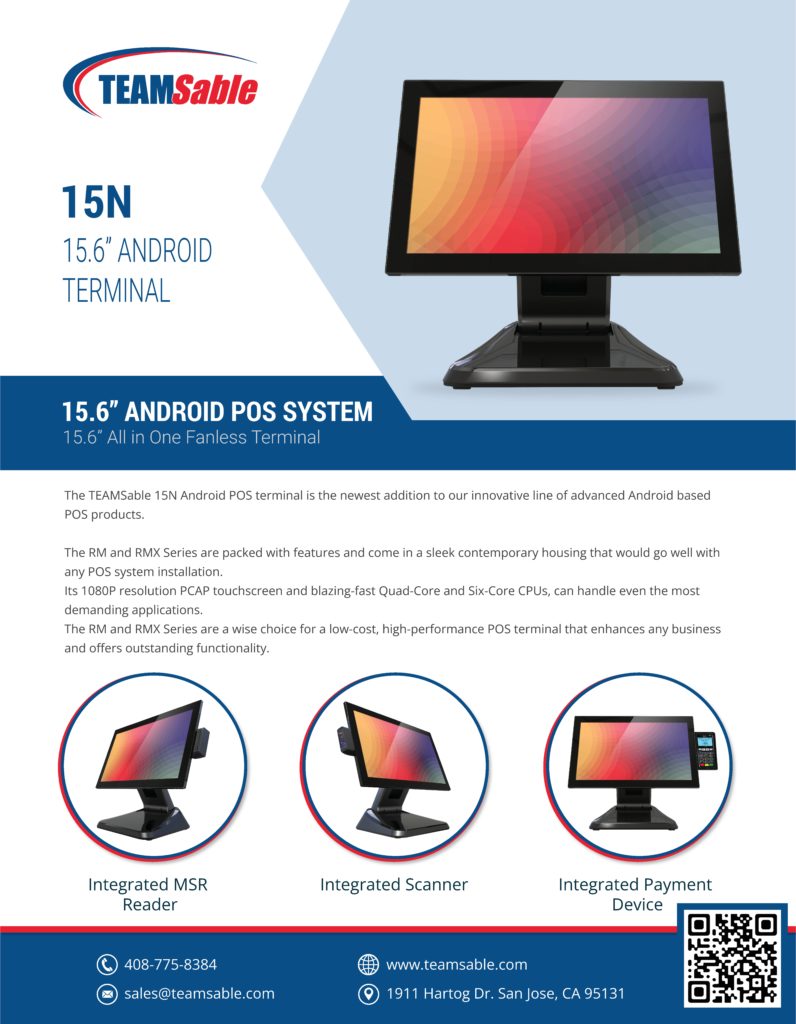

Downloads
Overview
TEAMSable 15N-RM and 15N-RMX
The TEAMSable 15N Android POS terminal is the newest addition to our innovative line of advanced Android based POS products.
The RM and RMX Series are packed with features and come in a sleek contemporary housing that would go well with any POS system installation.
Its 1080P resolution PCAP touchscreen and blazing-fast Quad-Core and Six-Core CPUs, can handle even the most demanding applications.
The RM and RMX Series are a wise choice for a low-cost, high-performance POS terminal that enhances any business and offers outstanding functionality.
Configurations
15″ Android POS System
Integrated MSR Reader



15″ Android POS System
Integrated Scanner



15″ Android POS System
Integrated Payment Device
Integrated 2nd Display
MODEL DESCRIPTION
15N-RM-A17-2G-8F-A9.0 15" Android POS with A17, 2GB RAM, 8GB Flash, Android 9.0
15N-RM-A17-2G-8F-A9.0-WH 15" Android POS with A17, 2GB RAM, 8GB Flash, Android 9.0, White
15N-RMX-A53-4G-16F-A9 15" Android POS with A53, 4GB RAM, 16GB Flash, Android 9.0
15N-RMX-A53-4G-16F-A9-WH 15" Android POS with A53, 4GB RAM, 16GB Flash, Android 9.0, White
PERIPHERALS DESCRIPTION
Android Module-MSR MSR Card Reader for Android Terminals (15N)
Module-Scanner Scanner Module for Android (10N, 15N, 10W)
Integrated-Payment Device Chip and Card Reader (EMV, PIN, MSR, and NFC)
Packaging
Box Details 18.75"(L) x 8.75" (W) x 15.5" (H) - Weight: 9 lbs.
Inside the Box 15" Android POS,  AC Adapter
HARDWARE
Display 15.6" IPS LED Panel
Resolution 1920 x 1080 (16:9 diagonal)
Touch Technology 10 Point Capacitive
CPU Cortex A17, Quad-Core, 1.6GHz
Cortez A72 + A53, Six-Core 1.7GHz

Memory 2GB / 4GB RAM
Storage 8GB / 16GB eMMC
OS SUPPORT
Android Android 9, Pie
OPTIONAL PERIPHERALS
MSR 3 Tracks (Hardware key injectable available)
MSR+EMV N/A
Scanner 2D Scanning module
Wall-mount 75x75mm VESA
EXTERNAL PORTS
USB

USB 2.0 x 5, Micro USB 2.0 x1 (RM only)
USB 2.0 x 4, USB 3.0 x1 (RMX only)

Display Port mini HDMI (RMX only)
Com RS-232 x 2 (in RJ45 connector form)
Ethernet 10/100/1000 Mbps LAN RJ45 x 1
Audio I/O Headset + Microphone Jack x 1, S/PDIF Optical Port x 1
Camera Front facing 2M pixels (optional)
ENVIROMENT
Operating Temperature 0 - 35 C°
Relative Humidity 10% - 90% (Non-Condensing)
Certification RoHS, REACH, ISO9002
PACKAGE
Dimension 18.75"(L) x 8.75"(W) x 15.5"(H)
Weight 9 lbs.
