15″ Touch Monitor
The RM series is a multi-functional Touch LCD Monitor specifically for retail & hospitality applications such as hotels, restaurants, and shops.
Product Details
Specifications
Downloads
Overview

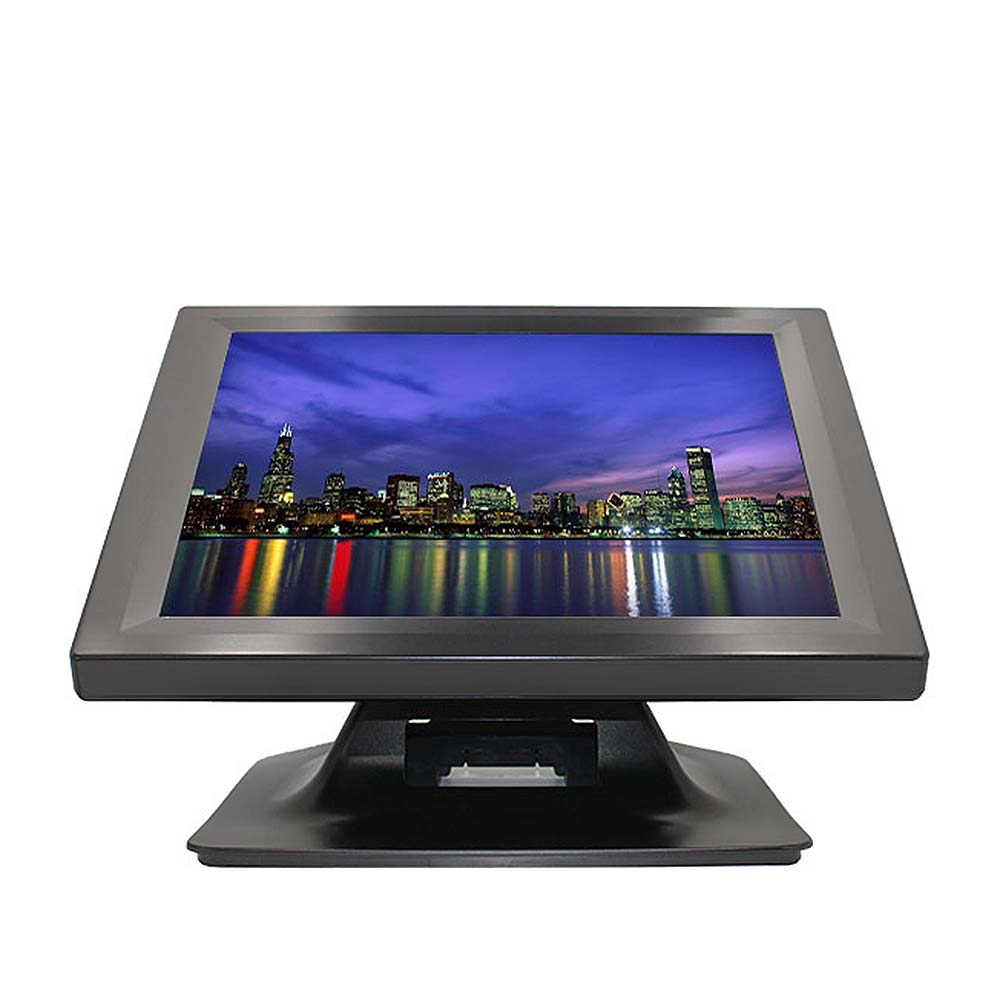

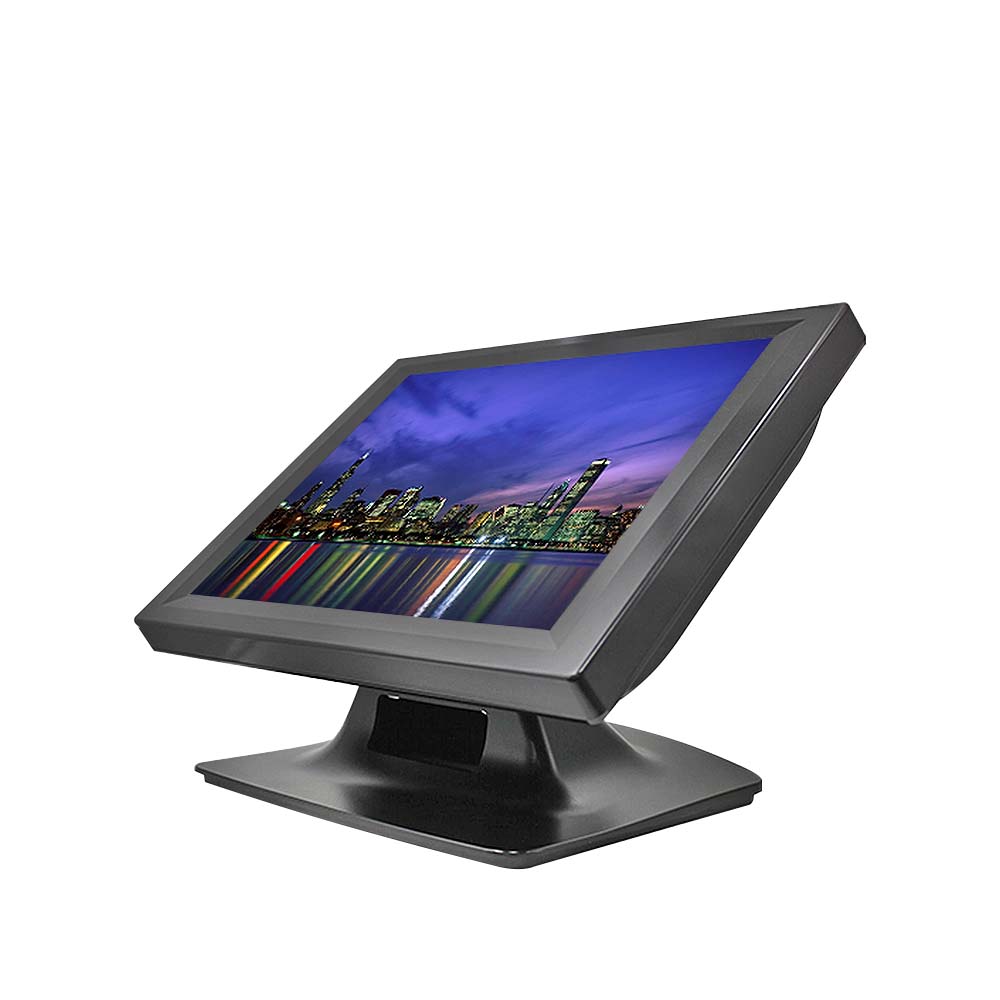

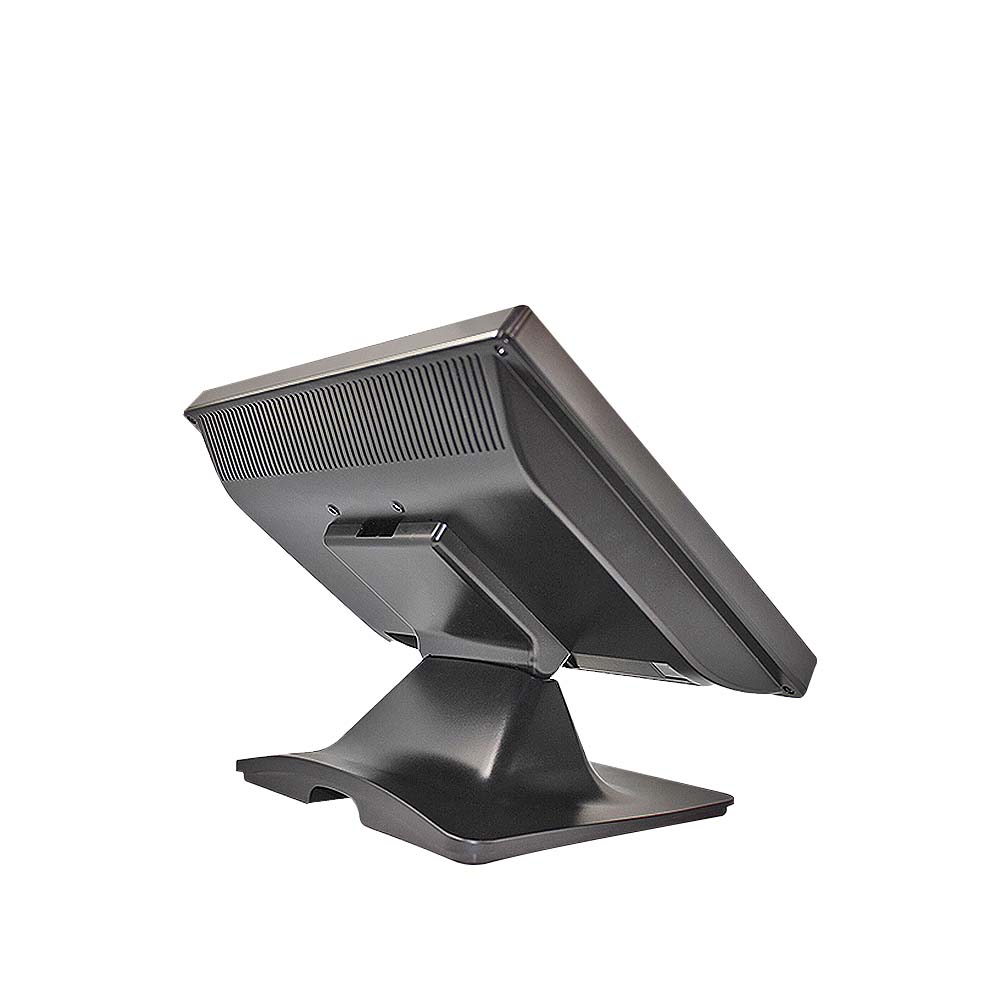

TEAMSable RM-150
The RM series is a multi-functional Touch LCD Monitor specifically for retail & hospitality applications such as hotels, restaurants, and shops.
- 1024 x 768 Resolution
- Spills resistant
- Dual VGA Interface (VGA and DVI)
- With USB or RS-232 Touch Interface
- Hidden Power Adapter Design
Configurations

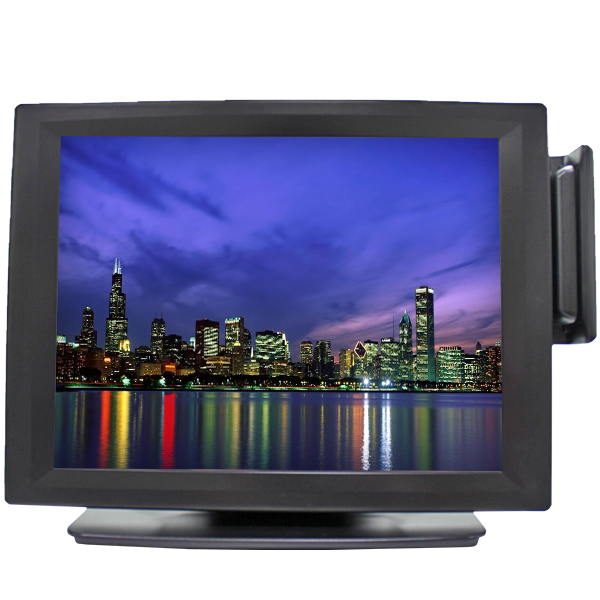

Integrated MSR
R-Series-MSR: MSR Card Reader for R-Series Terminals

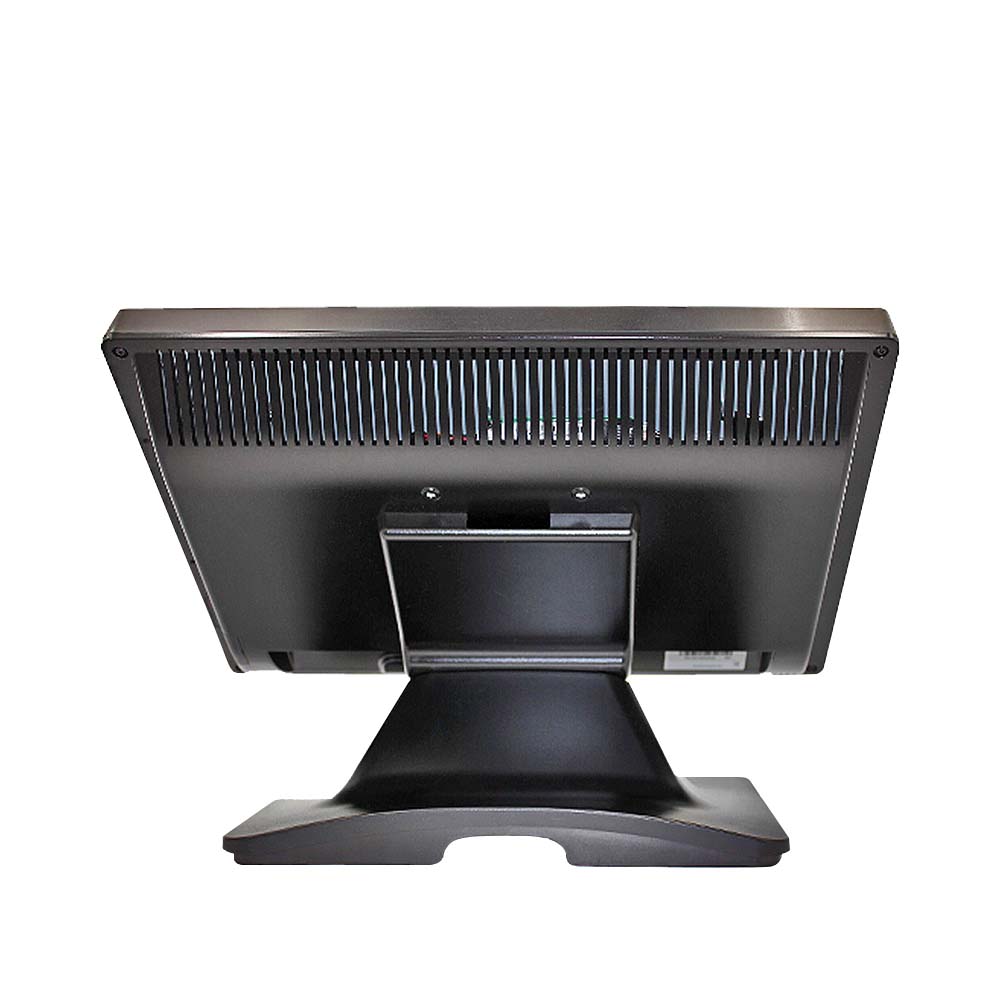

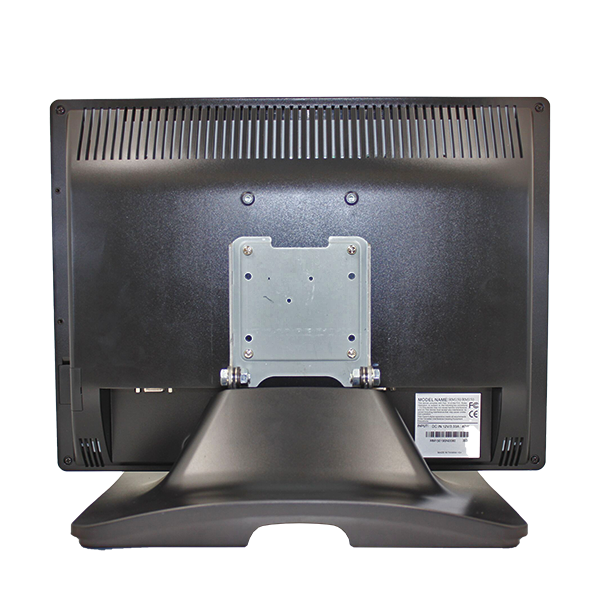

Removable Base and Wall Mountable
Dual touch interface
USB and RS-232
| MODEL | DESCRIPTION | |
| RM150 | 15" POS Touch Monitor |
| PERIPHERALS | DESCRIPTION | |
| R-Series-MSR | MSR Card Reader for R-Series Terminals, USB interface |
Packaging
| Box Details | 18.5"(L) x 10"(W) x 16"(H) Weight: 12.5 lb |
| Inside the Box | RM150 Touch Monitor CD Driver |
| HARDWARE | |
| Display Type | LED |
| LCD Size | 15" |
| Brightness | 250 cd/m2 |
| Display Area (mm) | 340 (W) x 228 (H) |
| Resolution | 1024 x 768 |
| Contrast Radio | 300-400:1 |
| Touch Panel | 5-wire Resistive Touch Panel |
| HARDWARE | |

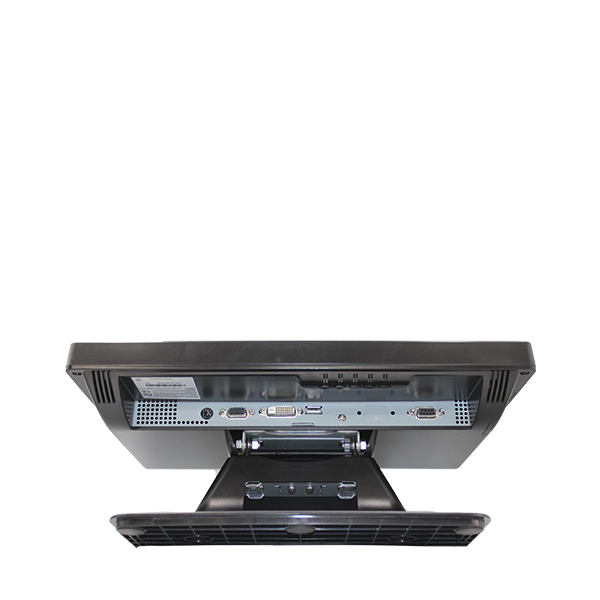

| Input Connector | D-SUB 15 PIN Female/24 PIN DVI |
| Power Supply | 12V/3A External Power Adapter |
| Color | Black Color |
| Dimension (WxHxD) | 380 x 302 x 216mm |
| Temperature | Operation: 0° ~ 50° |
| Humidity | 10% - 90% |
| Optional Device | MSR Card Reader |
Download Drivers
