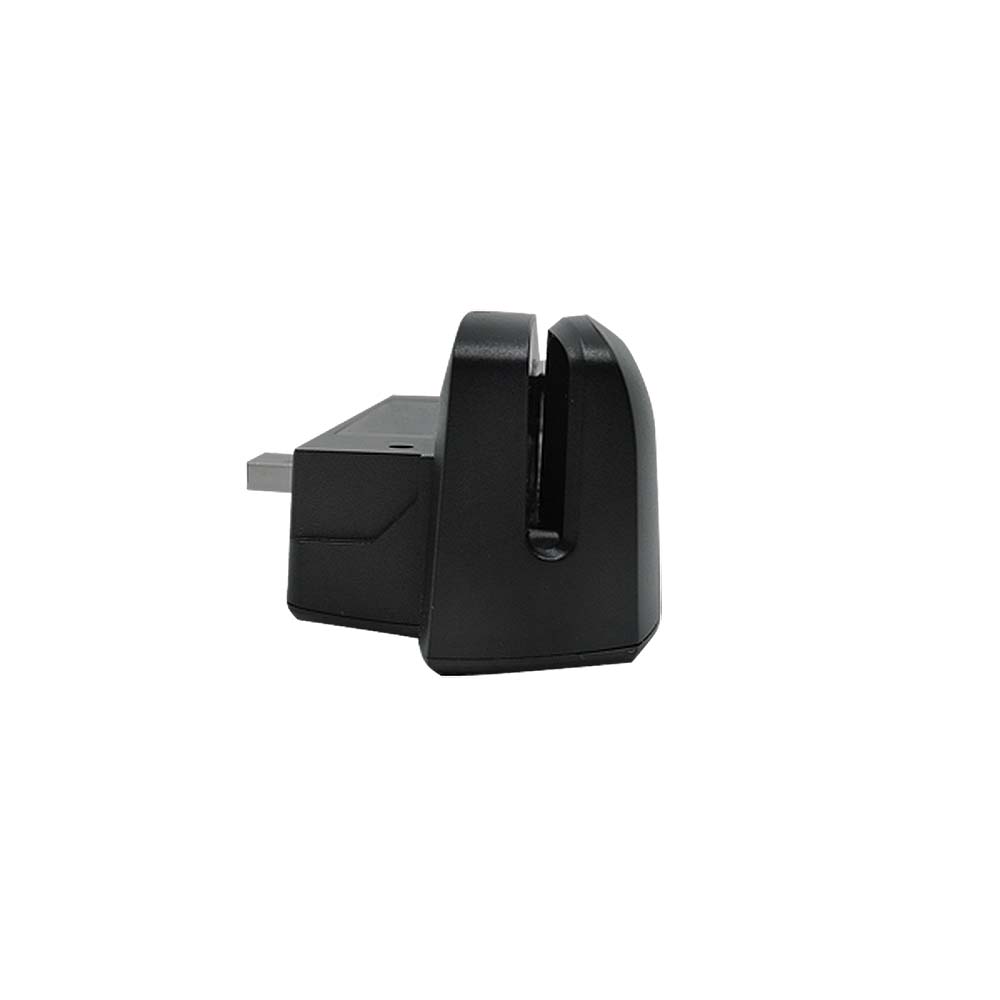

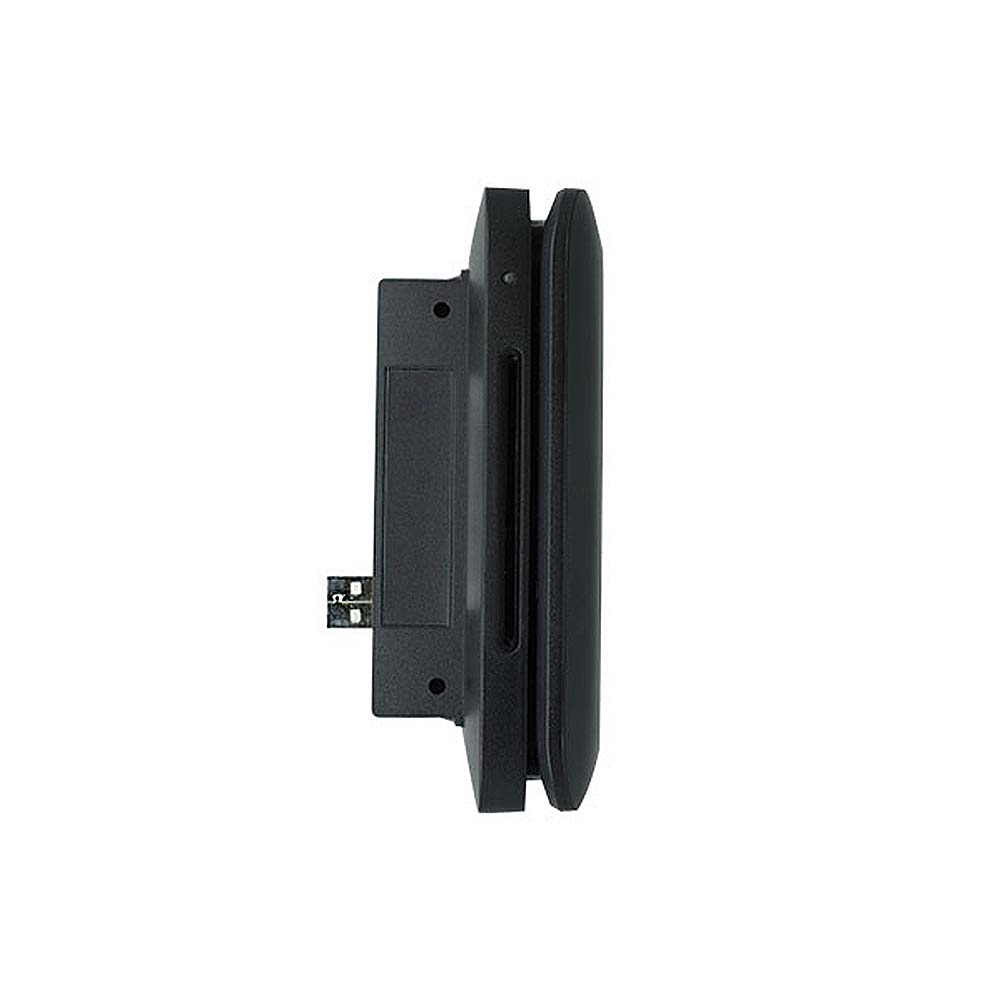

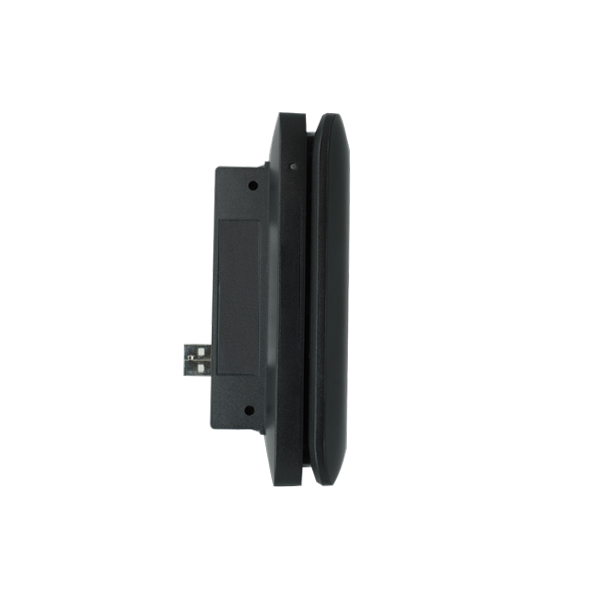

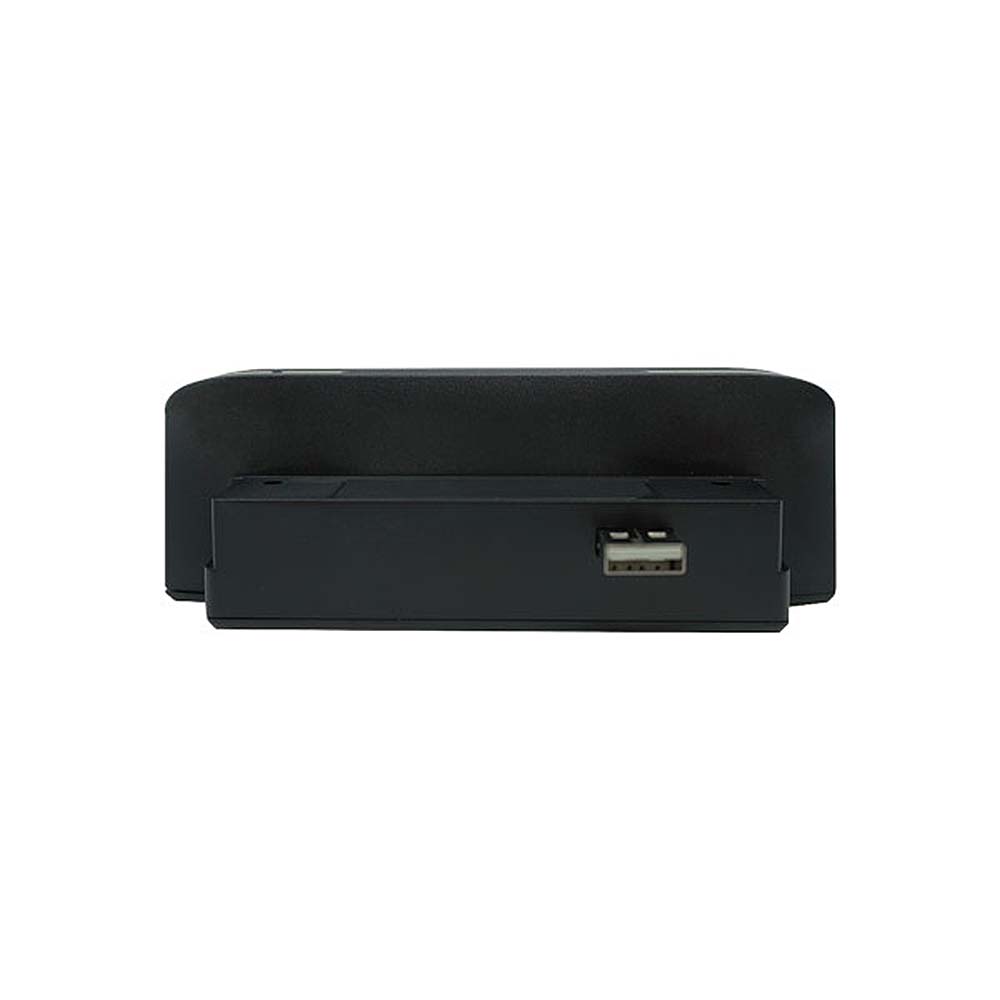

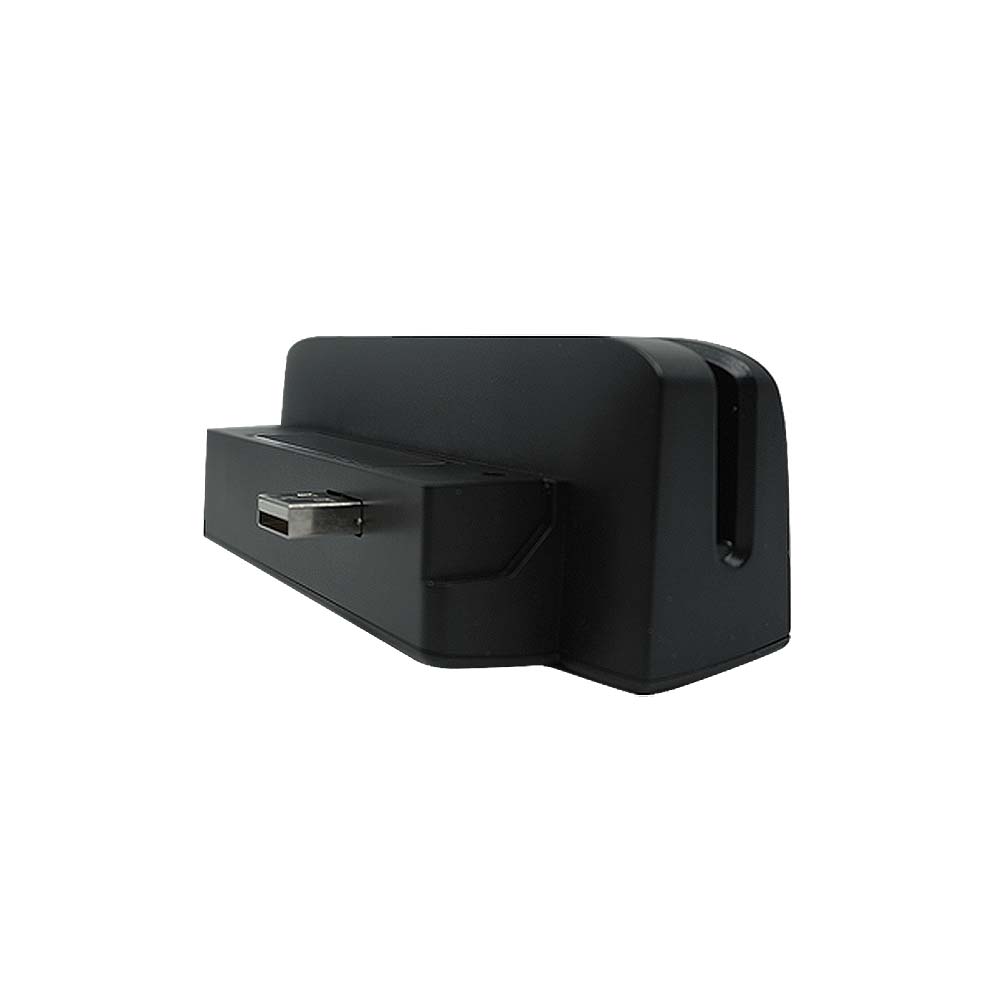

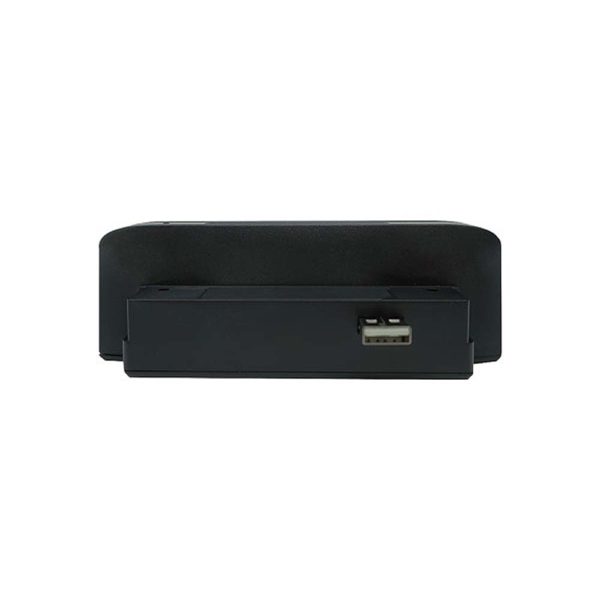

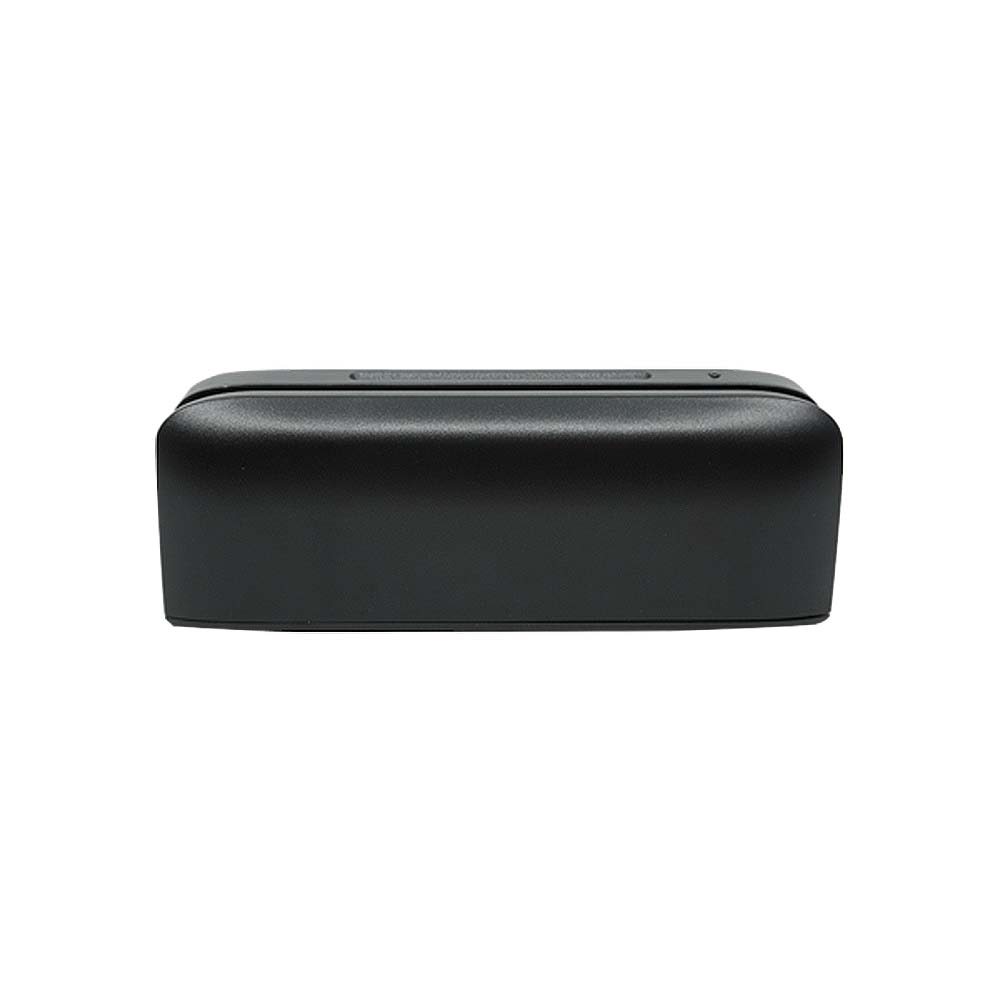

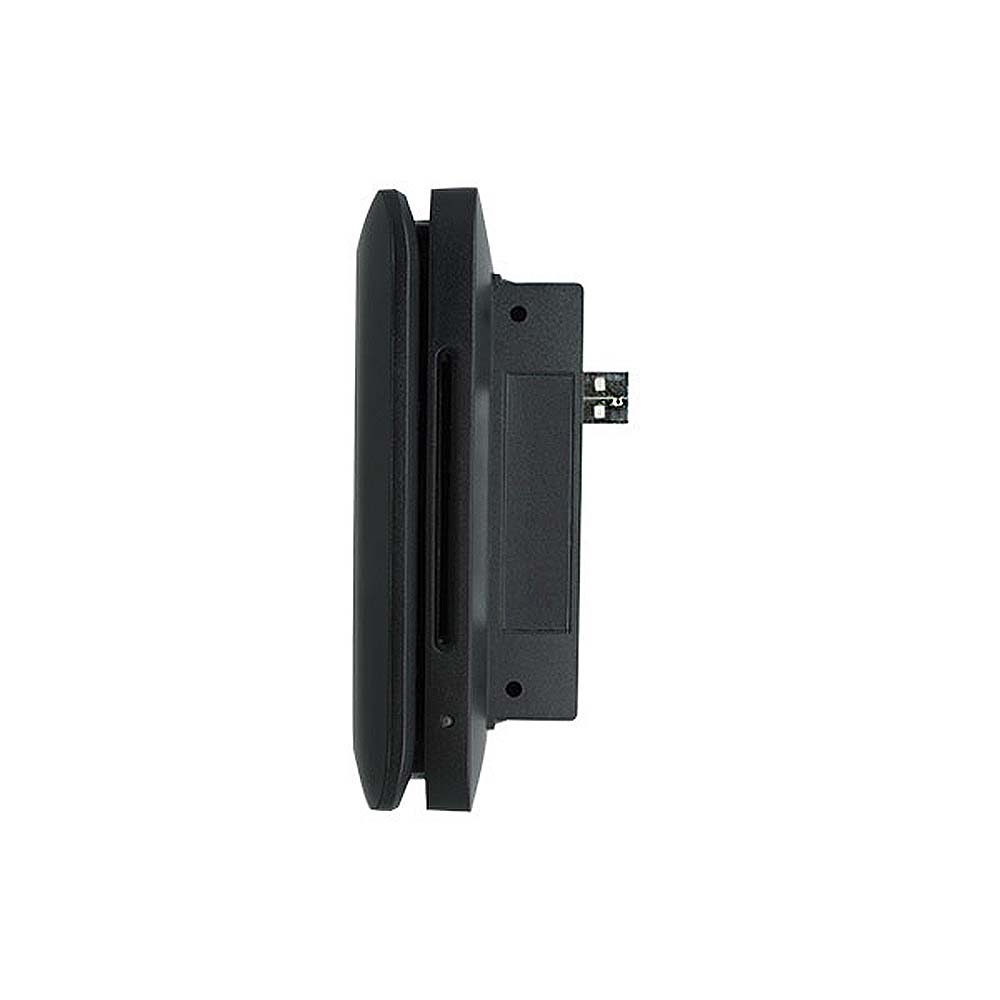

2-in-1 EMV/MSR Card Reader
- Bi-Directional swipe support
- 3 Tracks of data for Magnetic Card Reader
- EMV Chip card enabled
Product Details
Specifications
Downloads
Overview
TEAMSable SKY 15S-EMV
- Bi-Directional swipe support
- 3 Tracks of data for Magnetic Card Reader
- EMV Chip card enabled
Configurations

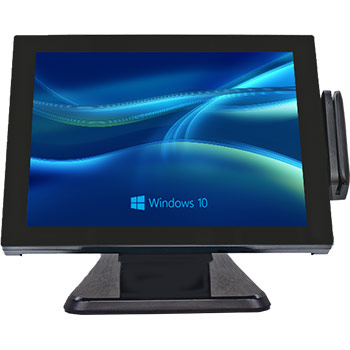

All-In-One System Compatible
Easily integrated with the SKY 15-Si, SKY 15-SJ, 12-RM-BL or 12-RM-WH

3 Tracks Support
2 Track Reader (3 Tracks Supported)

Slim Design
Small compact form factor
MODEL | DESCRIPTION |
SKY-15S-EMV | EMV/MSR 2-in-1 Card Reader for SKY Terminals, USB Interface |
Packaging
Box Details | 2"(W) x 5"(L) x 1"(H) Weight: 0.15 lbs. |
Inside the Box | EMV Card Reader |
HARDWARE | |
Enclosure Color | Black |
Swipe Speed | 4~60 ips (10.1~152.4 cm/sec) |
Swipe Direction | Bi-directional |
Card Width | 0.025 ~0.035 inches |
Number of Tracks | 2 Track non-encrypted Support for 3 tracks |
COMPATIBILITY | |
SKY 15-Si | 15" Windows All-In-One POS System |
SKY 15-SJ | 15" Windows All-In-One POS System |
COMPATIBILITY | |
12N-RM-BL | 12" Android All-In-One POS System |
12N-RM-WH | 12" Android All-In-One POS System |
EXTERNAL PORTS | |
Power Supply | 5V USB |
Power Consumption | 0.5W |
Interface | Micro USB |
Supported Emulation Modes | HID and Keyboard |
PACKAGE | |
Weight | 0.15 lbs (0.07 kg) |
