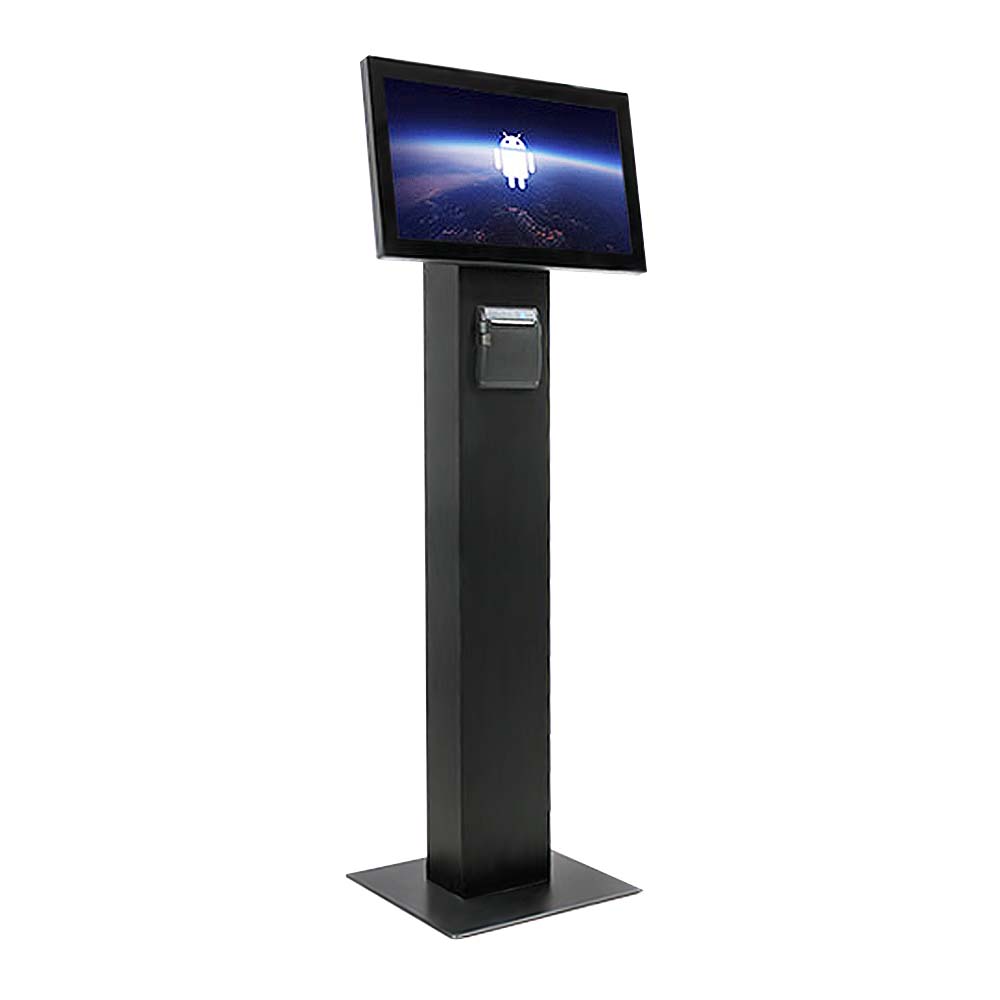

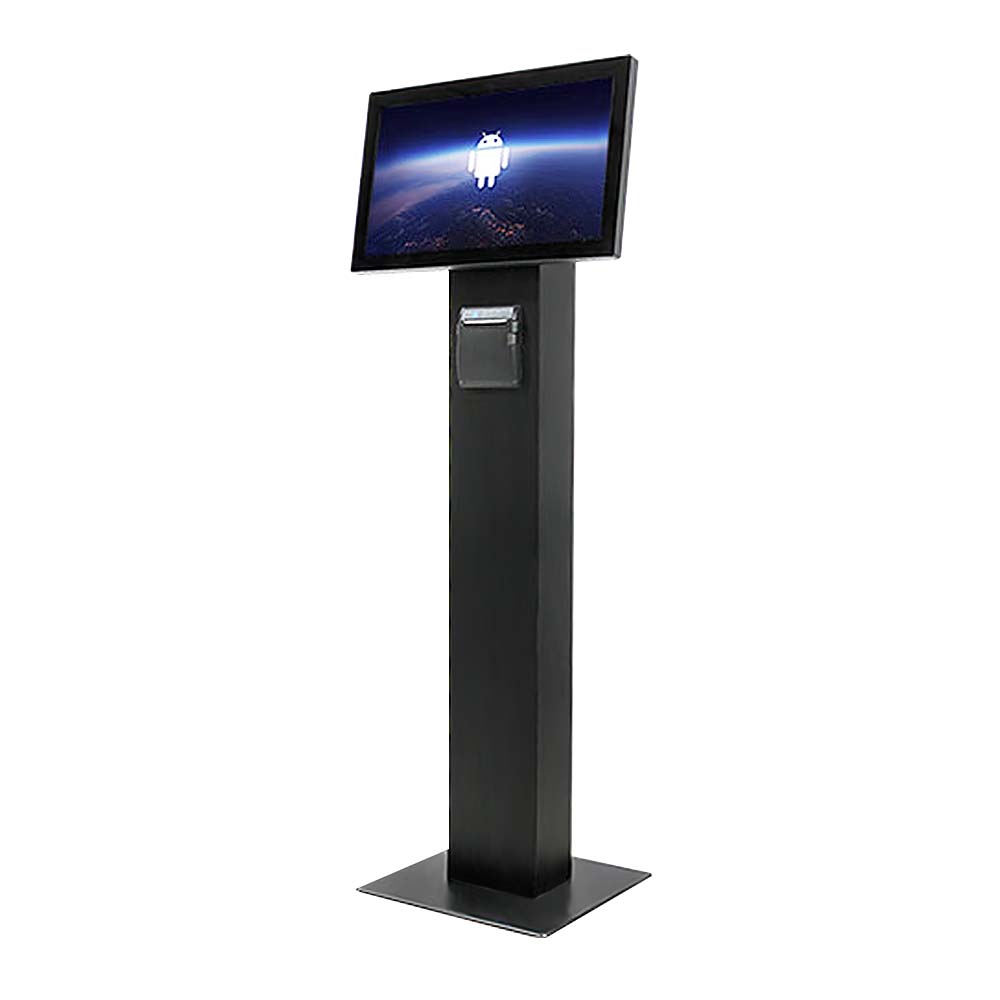

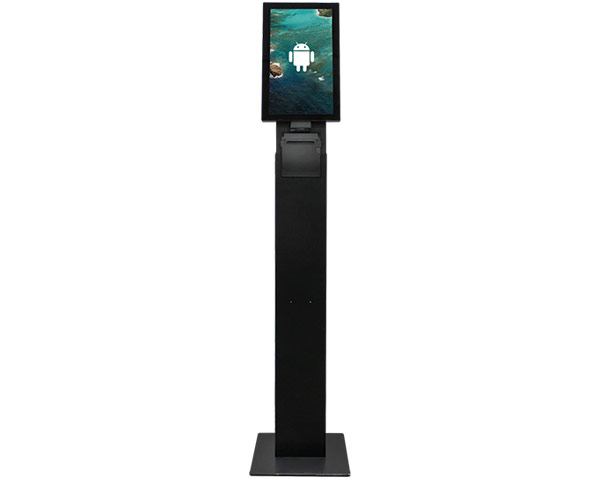

22″ Android POS Kiosk with Stand

Usher in the future of self-ordering and self-pay with the TEAMSable Floor Self-Service Kiosks.

SKU: 22P-RMK1-Floor Category:
Product Details
Specifications

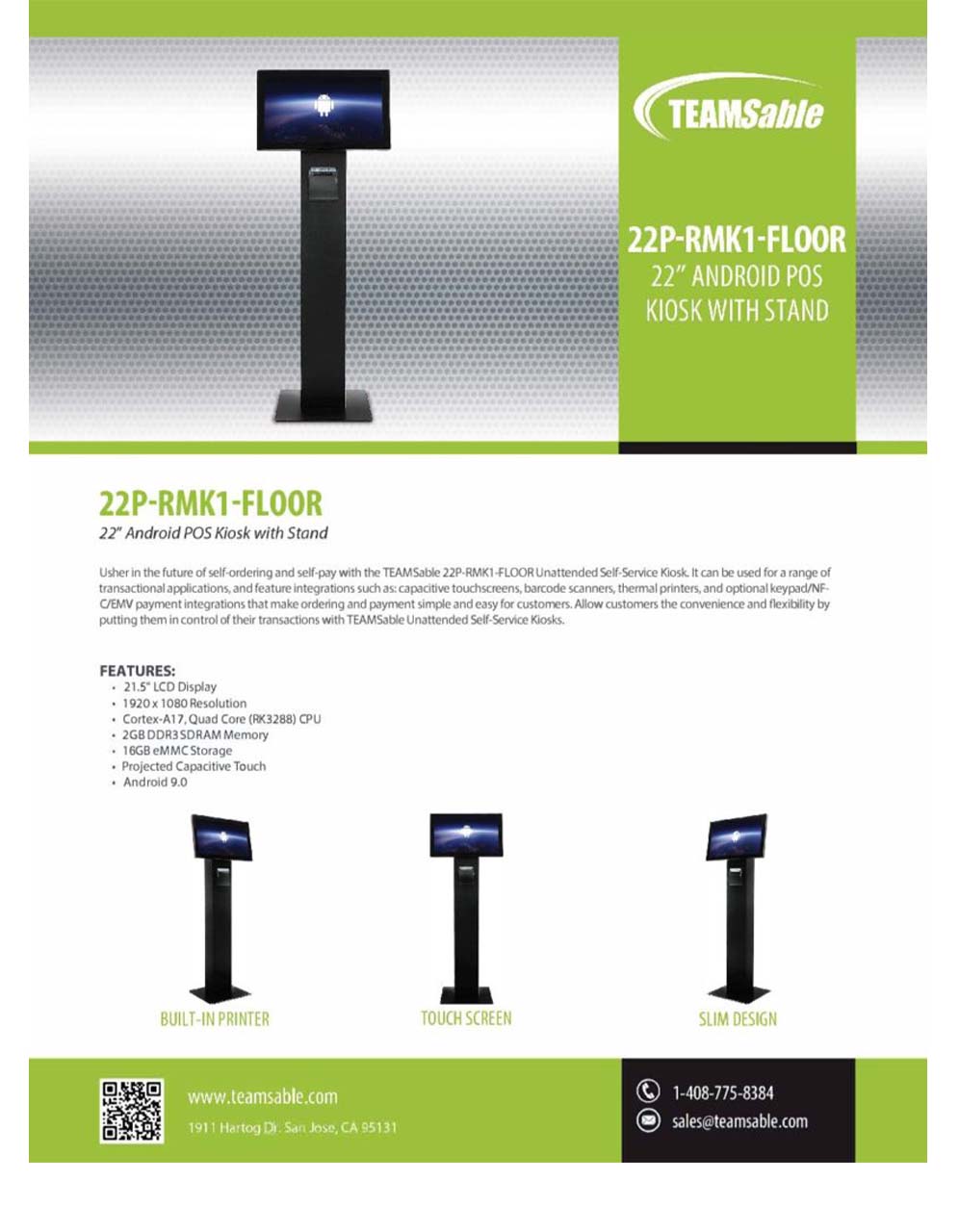

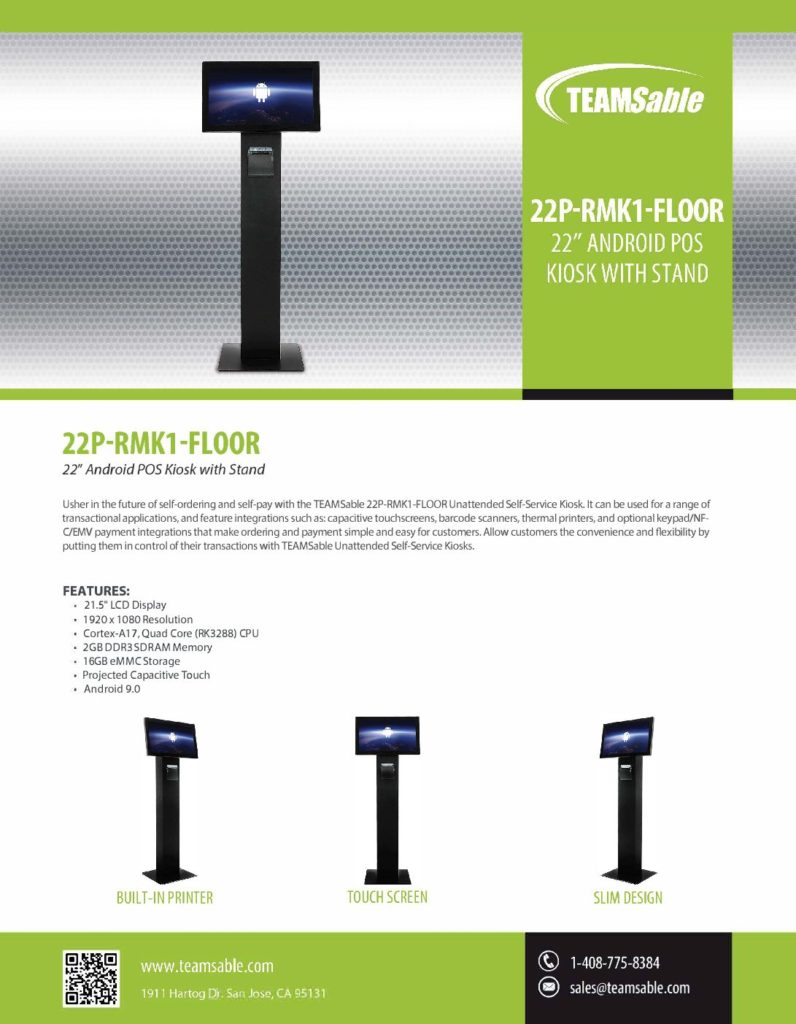

Downloads
Overview

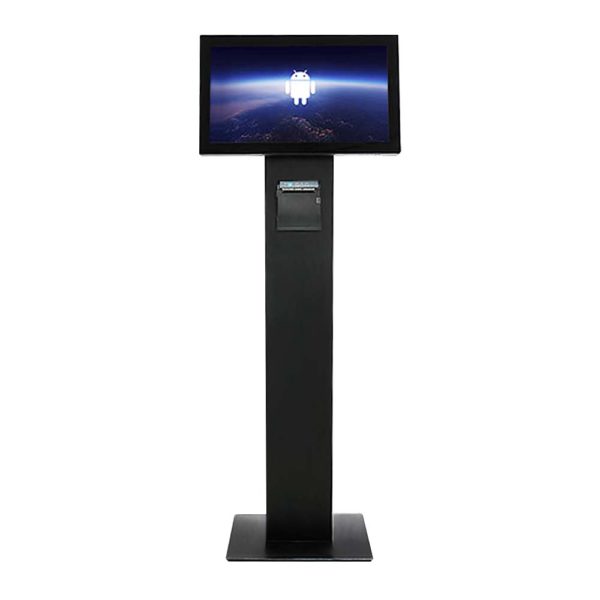

TEAMSable 22P-RMK1-FLOOR

Usher in the future of self-ordering and self-pay with the TEAMSable Floor Self-Service Kiosks. They can be used for a range of transactional applications with integrations such as: capacitive touchscreens, barcode scanners, thermal printers, and optional keypad/NFC/ EMV payment integrations.

  • 1920 x 1080 Resolution
  • Cortex A17, A53/A72, 2/4GB RAM
  • Wi-Fi/ BT
  • USB, Ethernet
  • Android 9.0
  • Optional Built in Printer, MSR/ Scanner, Payment Bracket
Configurations
Built-in Printer
Built-in Printer

Thermal Printer

Touch Screen
High-Performance CPU & OS

Android 9.0 + Cortex A17, Quad Core 1.8GHz

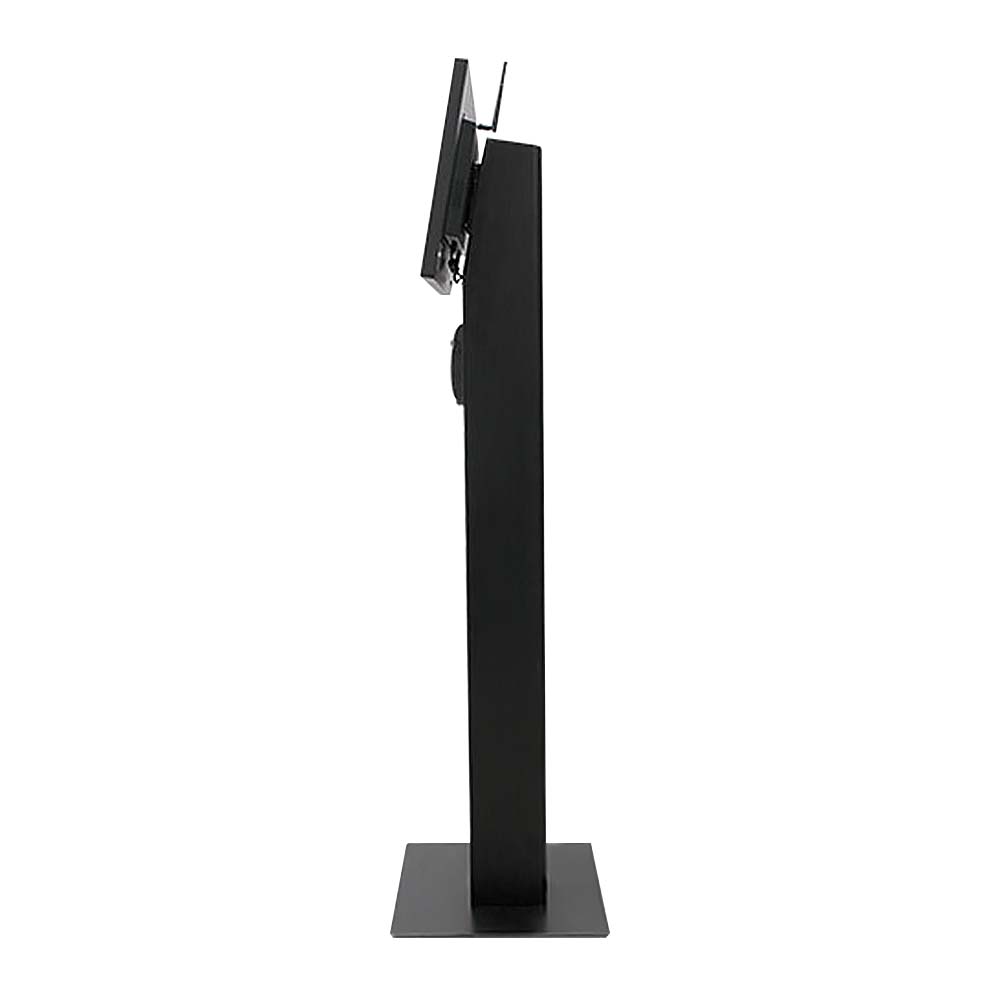

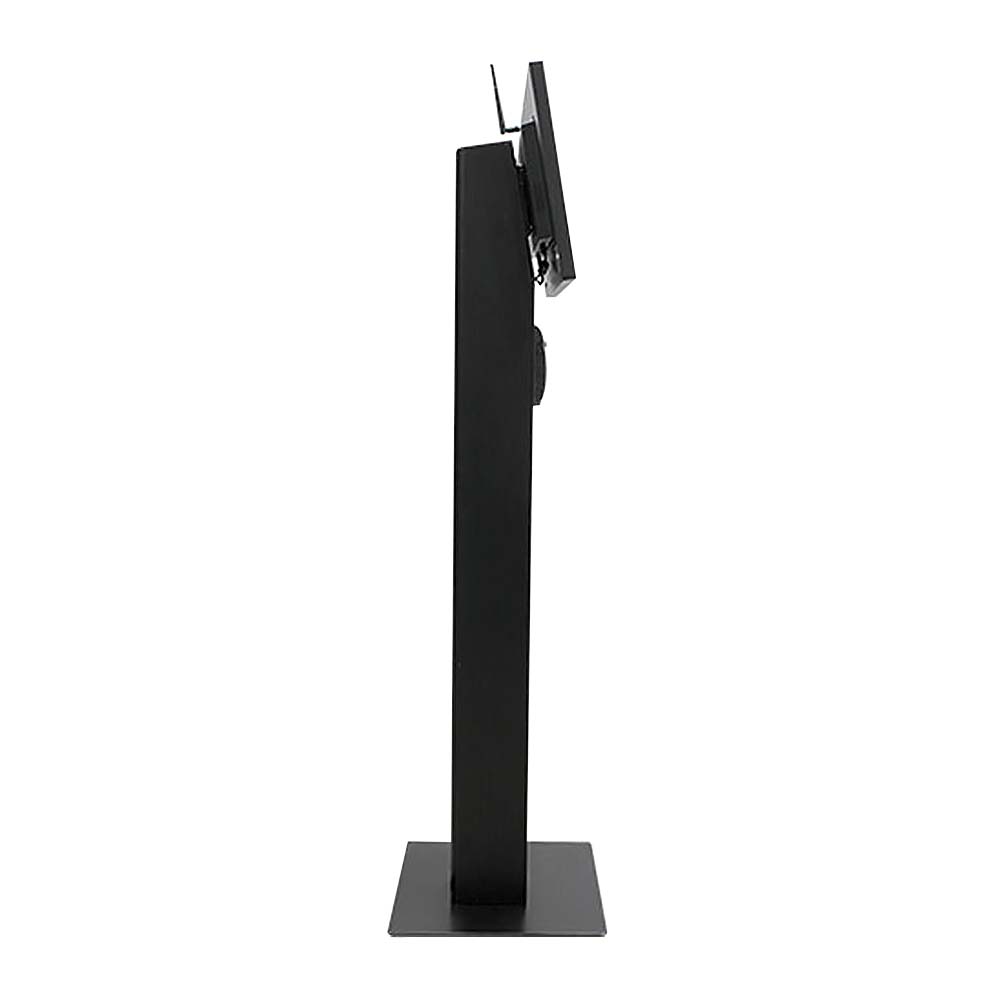

Slim Design
Slim Design
MODEL DESCRIPTION
22P-RMK1-Floor 22" Kiosk w/Stand, Android w/A17, 2G RAM, 8G Flash, Android 9.0
PERIPHERALS DESCRIPTION
Thermal Printer Out-of-paper Sensor, Auto Cutter
2D Barcode Scanner 1D/2D Supported
Smart IC Card Reader N/A
NFC Reader N/A
Packaging
Box Details 2"(L) x 21"(W) x 14"(H)
Weight: 15.4 lbs.
Inside the Box 22" Android POS Kiosk
AC Adapter
Printer Adapter
HARDWARE
Display 21.5" IPS LED Panel
Resolution 1920x1080 (16:9 diagonal)
Touch Technology Projected Capacitive
CPU Cortex-A17, Quad Core (RK3288)
Memory 2GB DDR3 SDRAM
Storage 16GB eMMC
OS SUPPORT
Android Android 9.0
OPTIONAL PERIPHERALS
Thermal Printer Out-of-paper Sensor, Auto Cutter
2nd Barcode Scanner 1D/2D Supported
Smart IC Card Reader ISO 7816
NFC Reader N/A
EXTERNAL PORTS
USB USB 2.0 Type-A x 4
Micro USB Micro USB 2.0 OTG x 1
HDMI HDMI x 1
Ethernet 10/100Mps x 1
Audio I/O Combo Jack x 1, SPDIF x 1
Speaker 3W x 2
ENVIRONMENT
Operating Temp. 0 - 35 C°
Relative Humidity 10% - 90% (Non-Condensing)
Certification RoHS, REACH, ISO9002
PACKAGE
Dimension 2"(L) x 21"(W) x 14"(H)
Weight 15.4 lbs.
