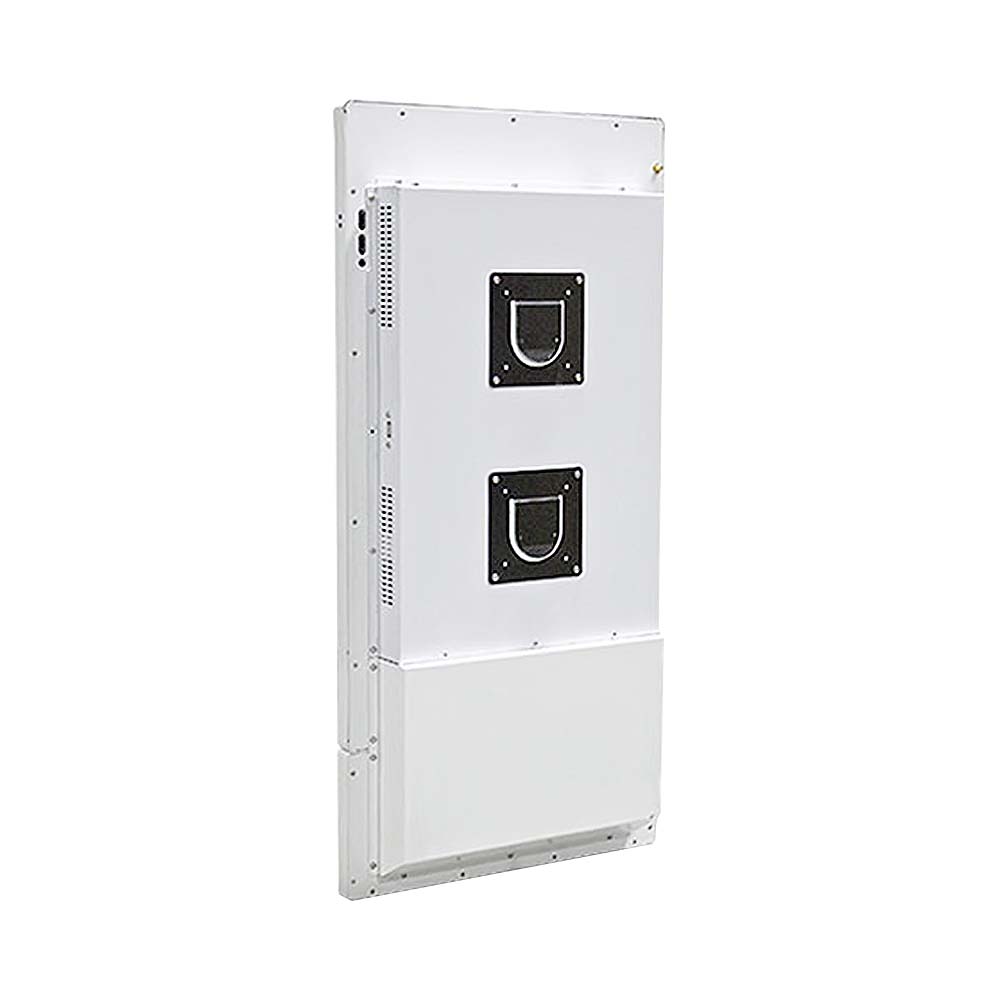

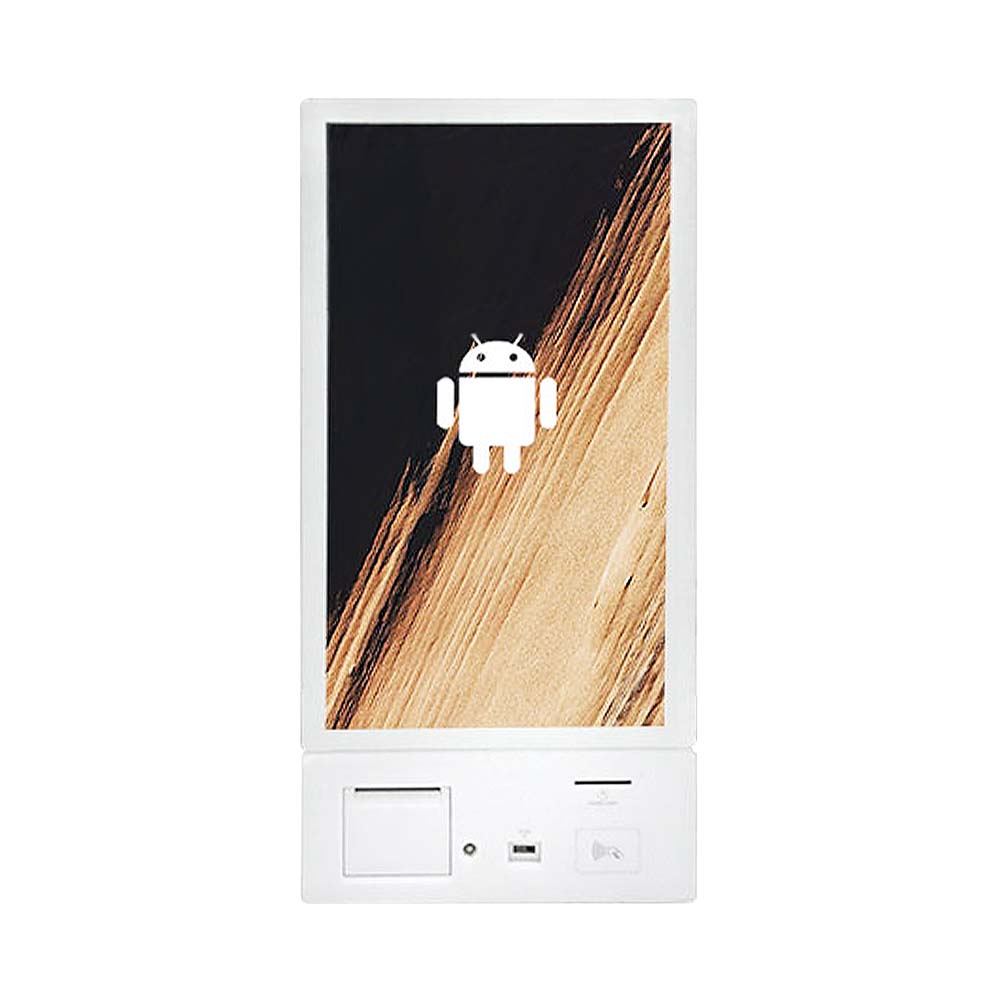

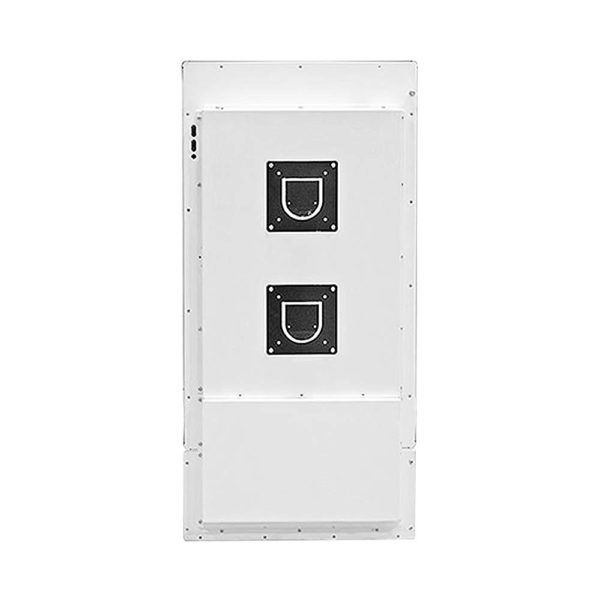

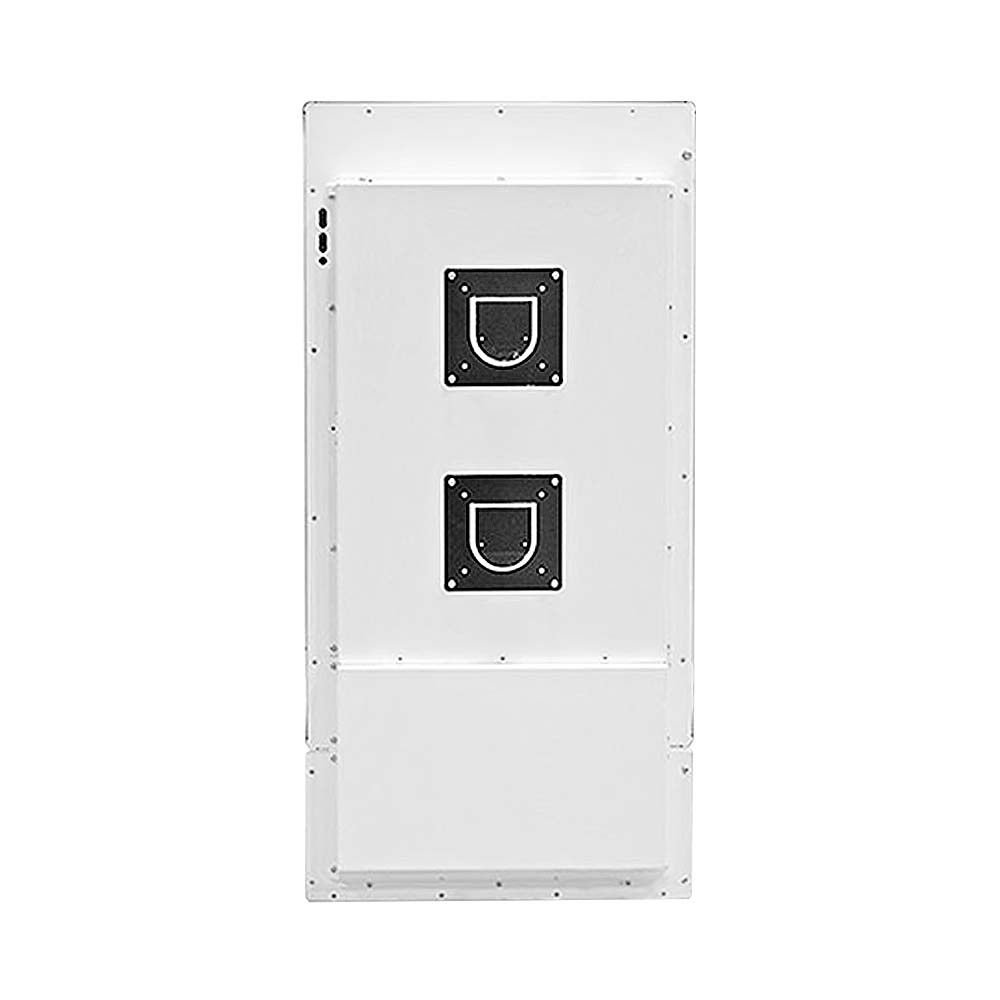

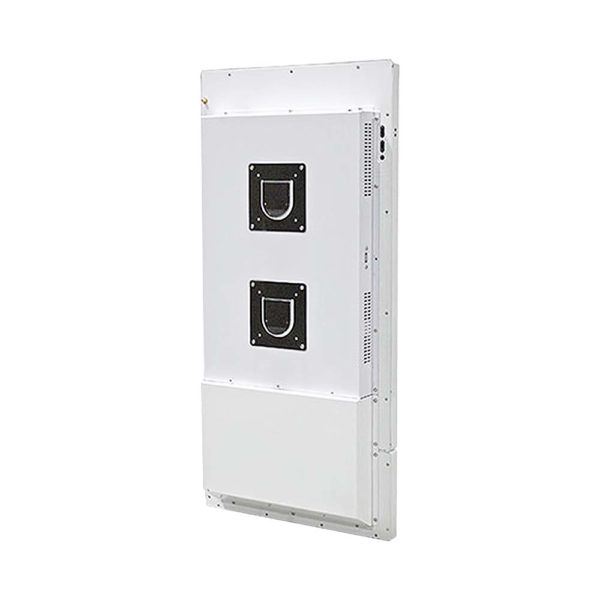

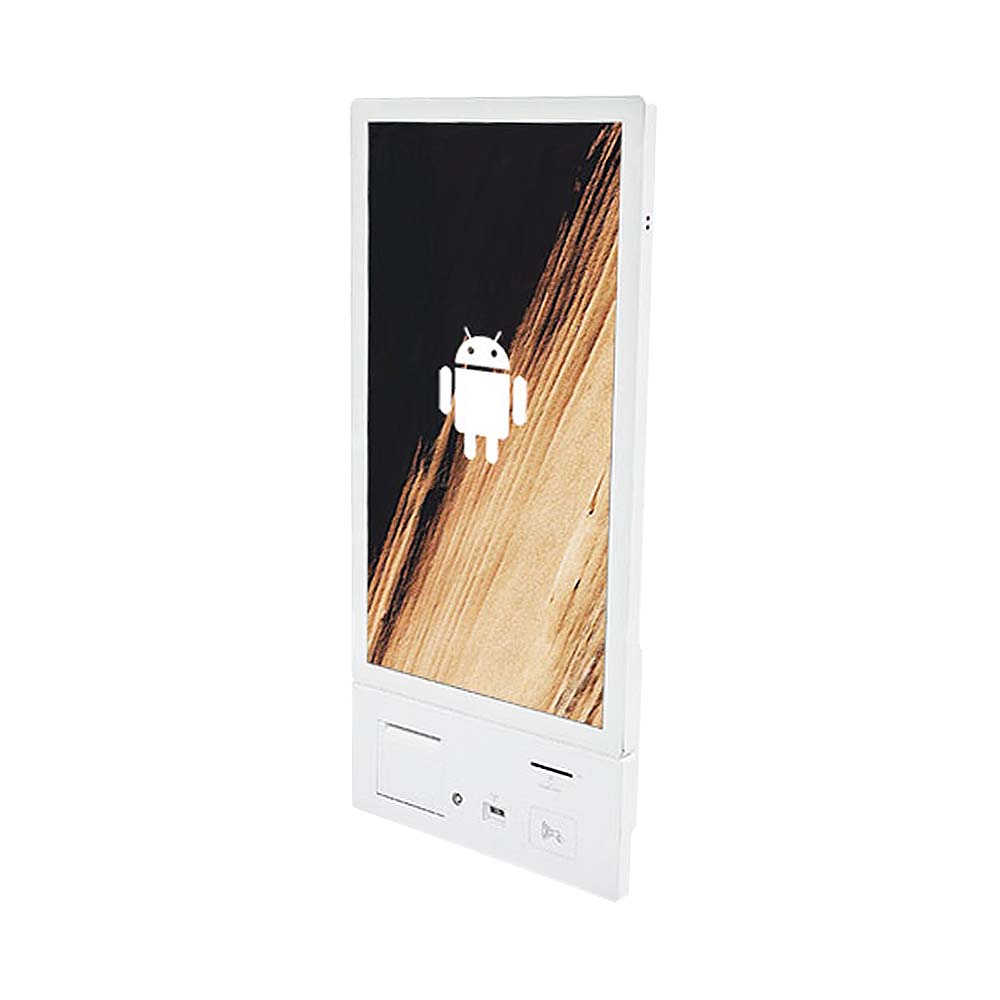

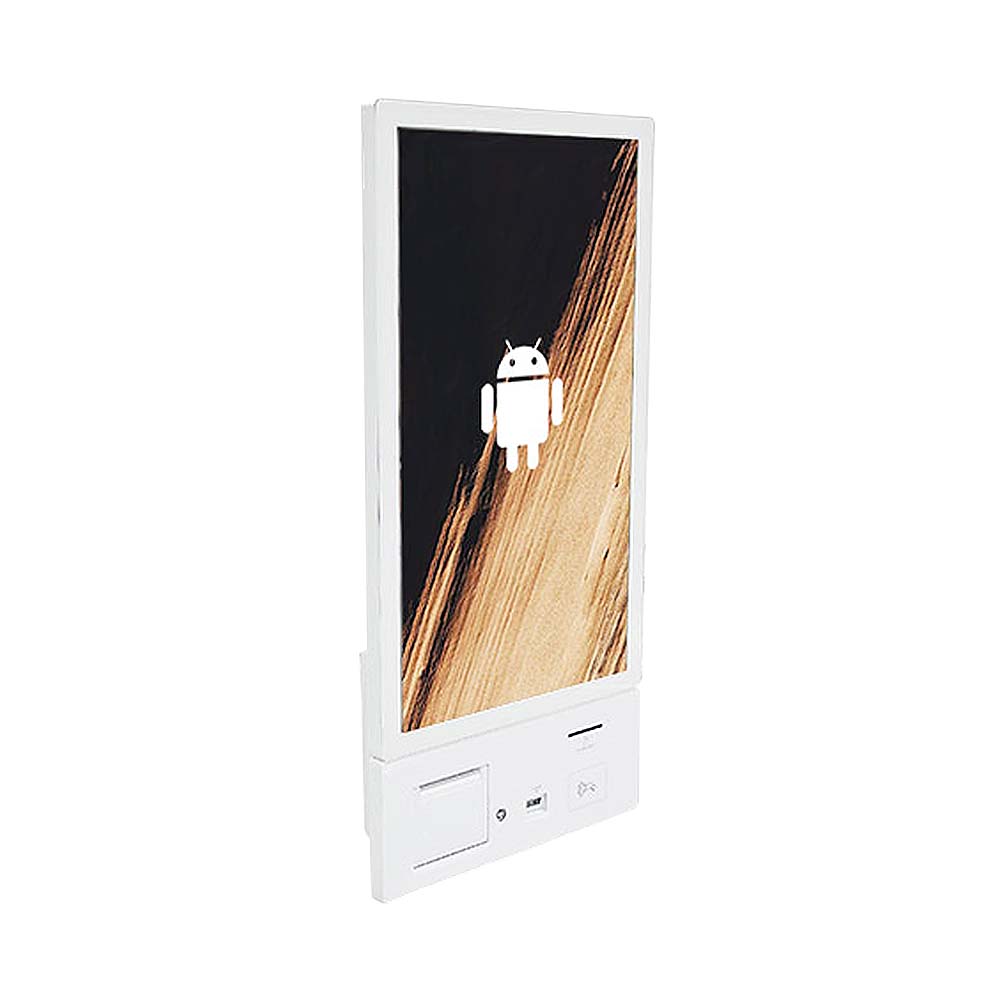

27″ Android POS Wall Mount Kiosk

  • Cortex-A17, Quad Core (RK3288)
  • 2GB RAM / 8GB eMMC
  • Android 8.1
SKU: 27P-RMK1-WALL Category:
Product Details
Specifications

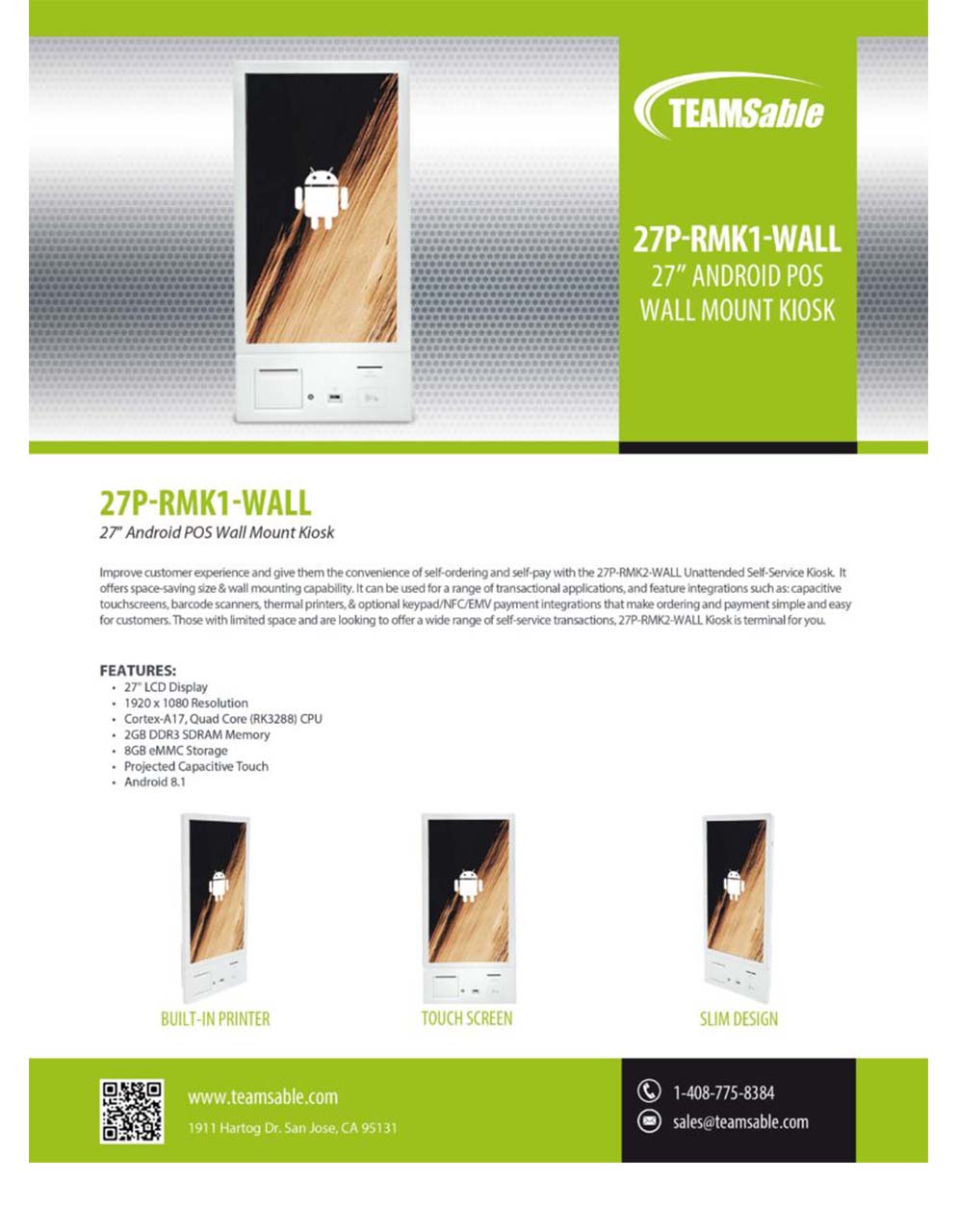

Downloads
Overview
TEAMSable 27P-RMK1-WALL
  • Cortex-A17, Quad Core (RK3288)
  • 2GB RAM / 8GB eMMC
  • Android 8.1
Configurations
27P-RMK1-WALL
Built-In Printer

Thermal Printer

27P-RMK1-WALL
Touchscreen

10-Point Projected Capacitive Touch Screen

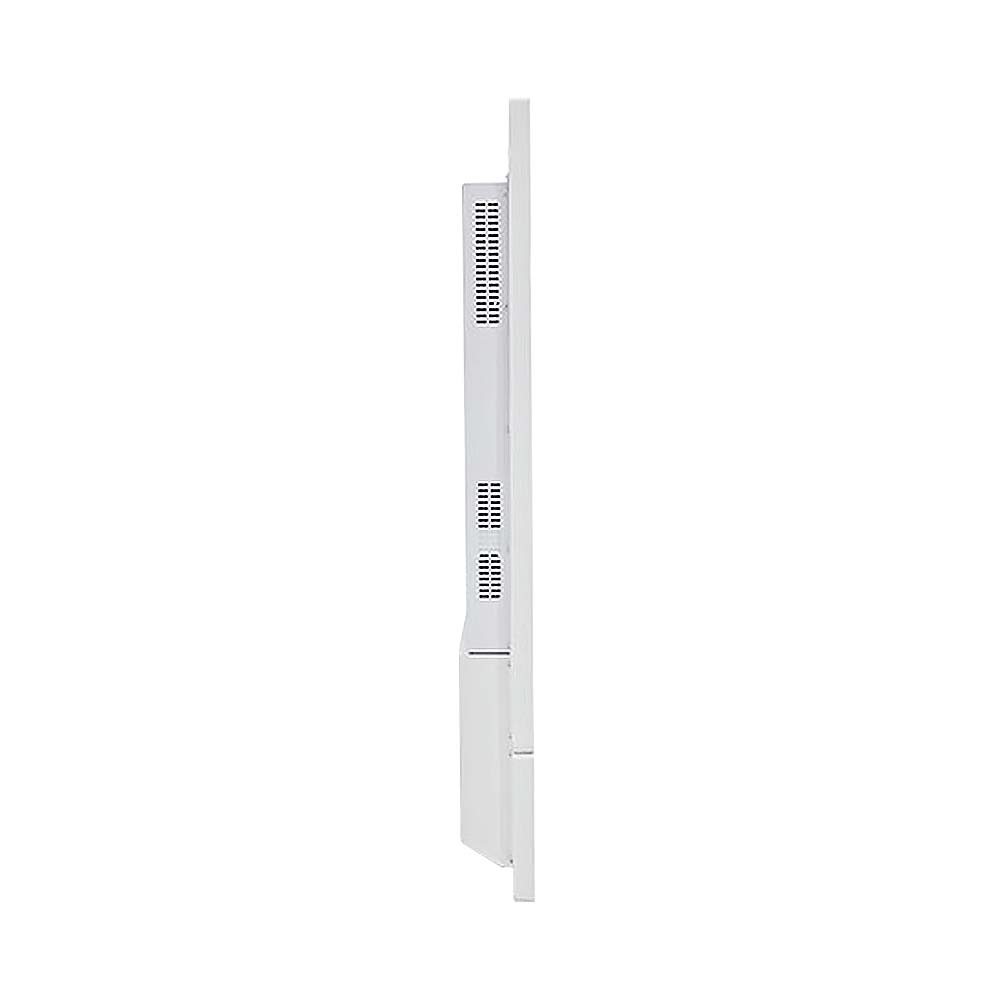

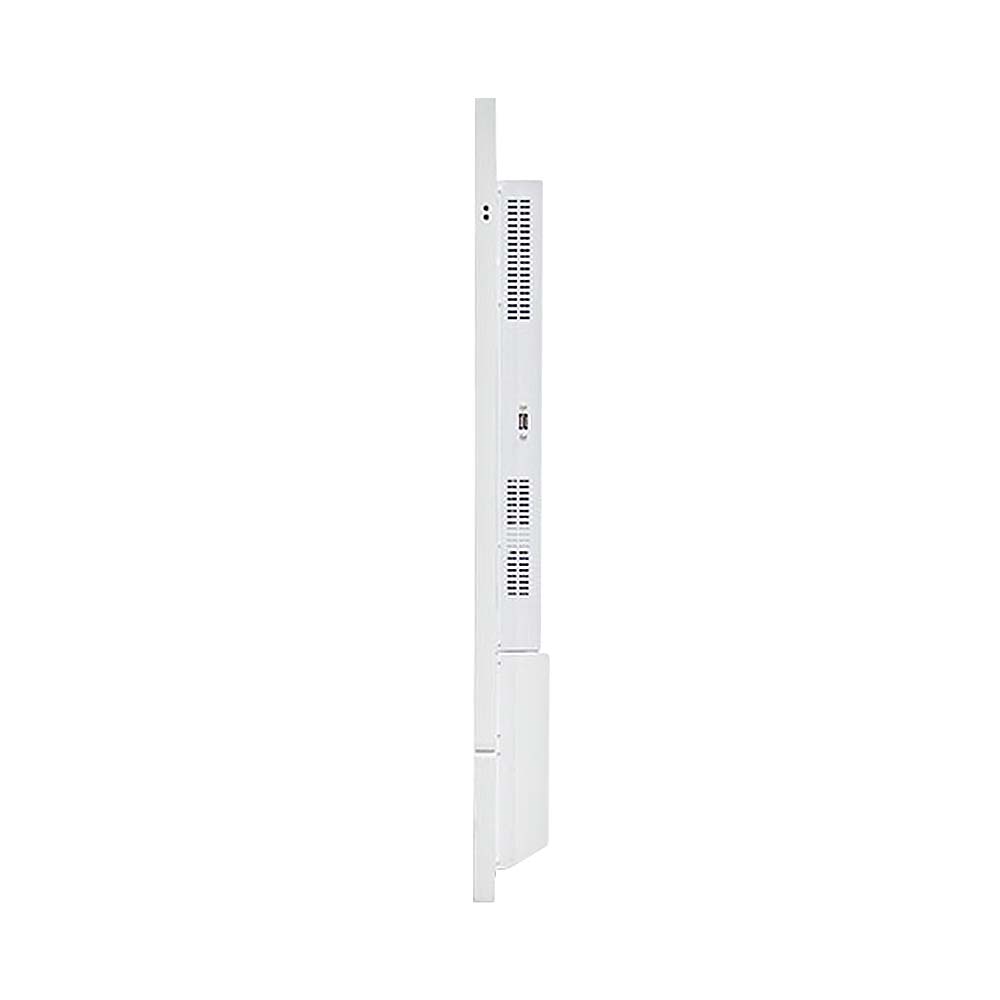

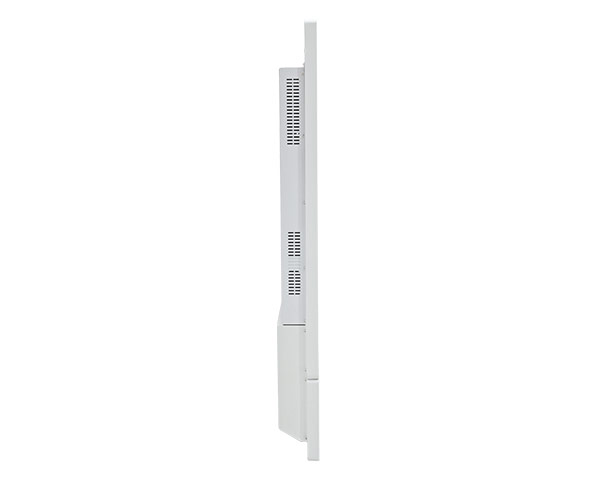

Slim Design
Slim Design
MODEL DESCRIPTION
27P-RMK1-Wall 27" Wall Kiosk, Android w/A17, 2G RAM, 8G Flash, Android 8.1
PERIPHERALS DESCRIPTION
Thermal Printer Out-of-paper Sensor, Auto Cutter
2D Barcode Scanner 1D/2D Supported
Smart IC Card Reader ISO 7816
NFC Reader N/A
Packaging
Box Details 2"(L) x 26"(W) x 15.5"(H) Weight: 18.2 lbs.
Inside the Box 27" Wall Mount Kiosk
AC Adapter
Printer Adapter
HARDWARE
Display 27" IPS LED Panel
Resolution 1920x1080 (16:9 diagonal)
Touch Technology Projected Capacitive
CPU Cortex-A17, Quad Core (RK3288)
Memory 2GB DDR3 SDRAM
Storage 8GB eMMC
OS SUPPORT
Android Android 8.1
OPTIONAL PERIPHERALS
Thermal Printer Out-of-paper Sensor, Auto Cutter
2nd Barcode Scanner 1D/2D Supported
Smart IC Card Reader ISO 7816
NFC Reader N/A
EXTERNAL PORTS
USB USB 2.0 x 2
Micro USB Micro USB 2.0 OTG x 1
HDMI HDMI x 1
Ethernet 10/100Mps x 1
Audio I/O Combo Jack x 1, SPDIF x 1
Speaker 5W x 2
ENVIRONMENT
Operating Temp. 0 - 35 C°
Relative Humidity 10% - 90% (Non-Condensing)
Certification RoHS, REACH, ISO9002
PACKAGE
Dimension 2"(L) x 26"(W) x 15.5"(H)
Weight 18.2 lbs.
