2×20 Customer Display

The TEAMSable FD230 Customer Display was designed to wow your customers with a full view of their transaction as you ring up items.

SKU: FD230 Category:
Product Details
Specifications
Downloads
Overview

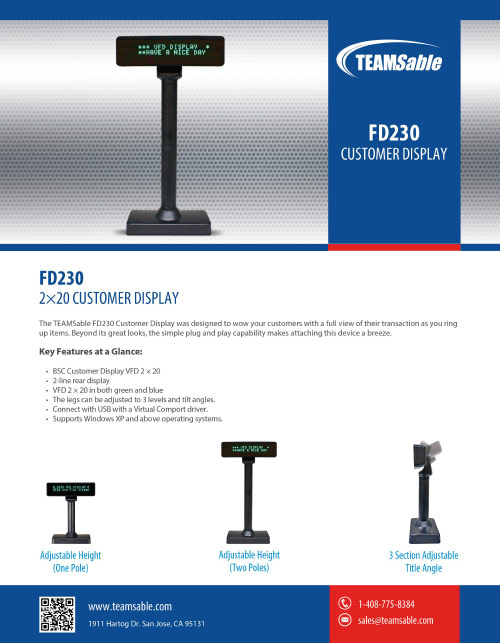

TEAMSable FD230
The TEAMSable FD230 Customer Display was designed to wow your customers with a full view of their transaction as you ring up items. Beyond its great looks, the simple plug-and-play capability makes attaching this device a breeze.

  • VFD 2 x 20 in both green and blue
  • Vacuum Fluorescent
  • USB Interface
  • The poles can be adjusted to 3 levels and tilt angles
  • Supports Windows and Android operating system
Configurations
Adjustable Height (One Pole)
Adjustable Height

(One Pole)

Adjustable Height (Two Poles)
Adjustable Height

(Two Poles)

3 Section Adjustable Tilt Angle
3 Section Adjustable Tilt Angle
MODEL DESCRIPTION
FD230SU Standalone 2 lines customer display, USB interface
Packaging
Box Details 9.25"(W) x 11.5"(L) x 3"(H)
Weight: 2lb
Inside the Box Customer Display Screen
Adjustable Stand (2 Poles)
Cable clip
Driver CD
AC Adapter
HARDWARE
Display Method Vacuum Fluorescent Display
Number of Characters 40 ( 20 columns x 2 lines)
Brightness 700 cd/m2
Character Font 5 (H) x 7 (W) dot matrix
Character Size 5.25 (H) x 8.03 (W) mm
Dot Size 0.85 x 1.05mm
HARDWARE
Viewing Angle Max. 90°
Horizontal Rotation Max. 355°
Vertical Rotation 0° ~ 50°
MTBF 178w 4d
Interface USB
Power Consumption 5 ~ 12 VDC
