4.5″ Payment Terminal

The APT-40Mini is a pocket-sized payment processing powerhouse packed with features and value.

SKU: APT-40-MINI Category:
Product Details
Specifications
Downloads
Overview

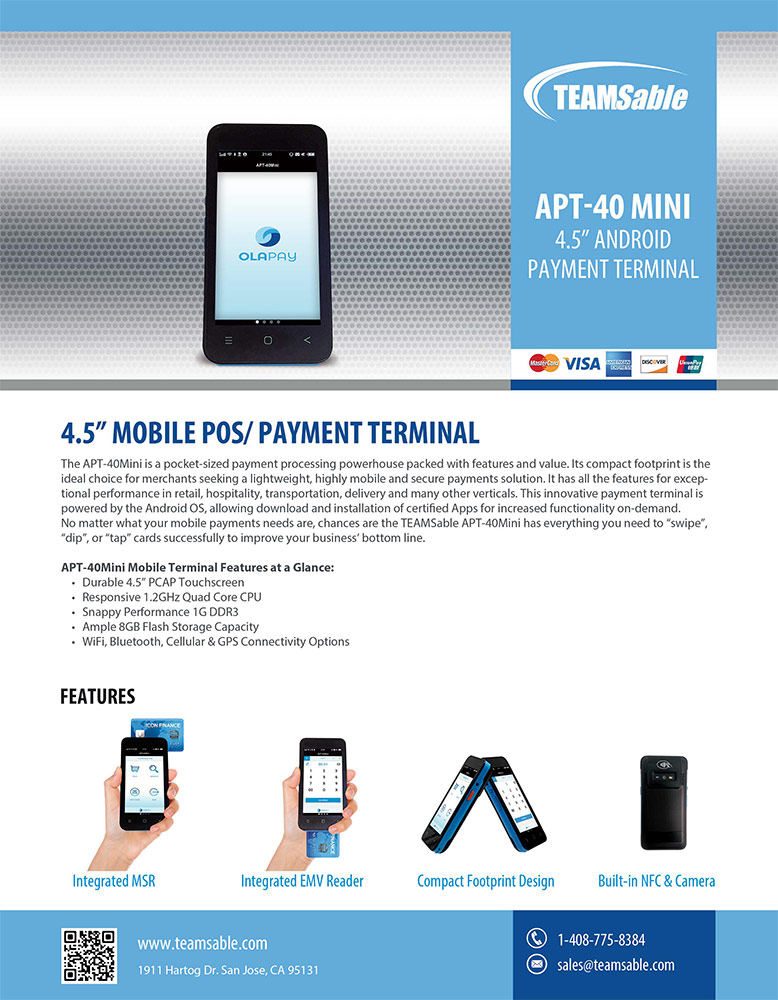

TEAMSable APT-40-MINI

The APT-40Mini is a pocket-sized payment processing powerhouse packed with features and value. Its compact footprint is ideal for merchants seeking a lightweight, highly mobile, and secure payments solution.

  • 4.5" Touch Screen
  • 854x480 Resolution
  • 1 GB RAM / 8GB eMMC
  • Wi-Fi / BT / 4G
  • EMV / MSR / NFC
  • Android 8.1
Configurations
Integrated MSR
Integrated MSR
Integrated EMV Reader
Integrated EMV Reader

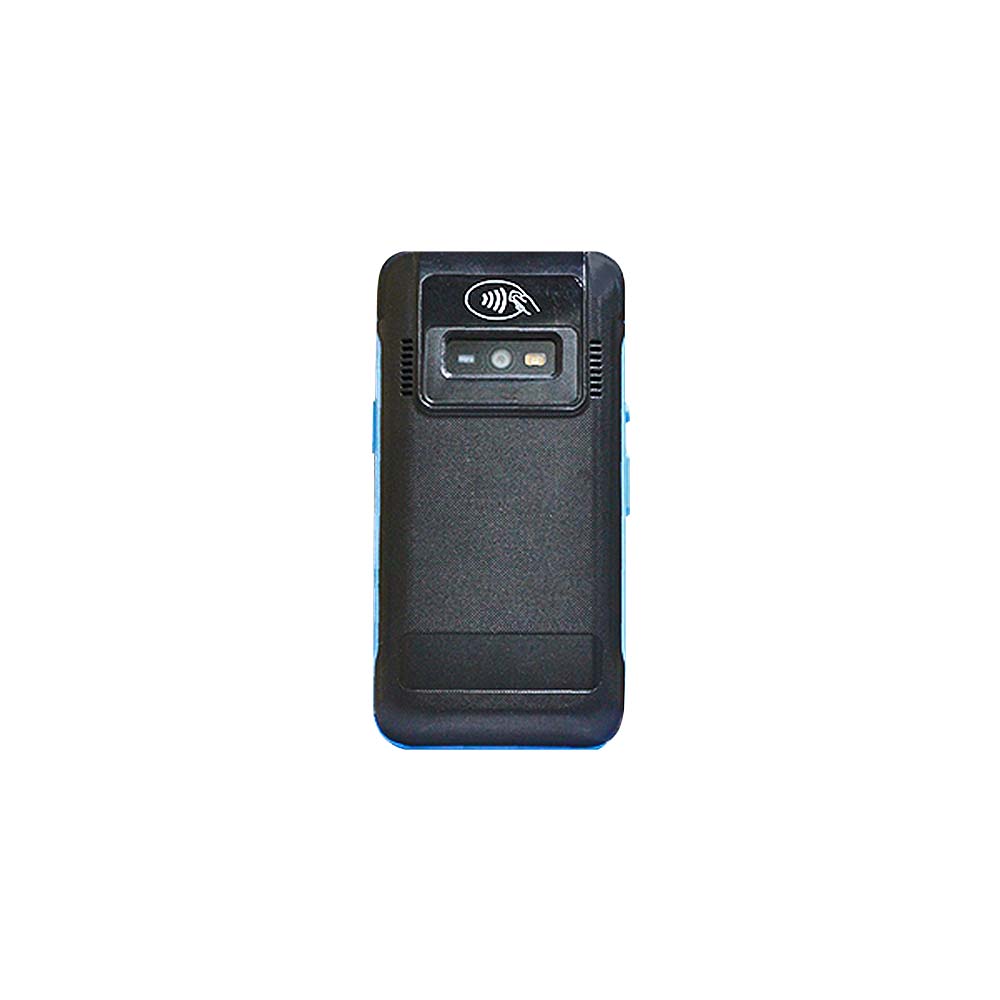

Built-in NFC & Camera
Built-in NFC & Camera
MODEL DESCRIPTION
APT40Mini 4.5" Android Payment Terminal with MSR/ EMV/ NFC
Packaging
Box Details 6.75"(L) x 4.5"(W) x 2.25"(H)
Weight: 1lb
Inside the Box 4.5" Payment Terminal
Charging Cable
Power Adapter
HARDWARE
Display 4.5" IPS Panel
Resolution 854x480
Touch Technology 5 Point Capacitive
CPU QuadCore 1.2GHz
Memory 1GB DDR3, Storage 8GB eMMC
Storage 120GB SSD Standard (256GB SSD upgradable)
WIRELESS CONNECTIVITY
WIFI IEEE 802.11b/g/n, WLAN 2.4GHz+5GHz
Bluetooth BLE 4.0 Dual Mode, V4.)+EDR
GPS Built-in GPS
Cellular Module 4G
OS SUPPORT
Android Android 8.1
INTEGRATED PERIPHERALS
MSR 3 Tracks, ISO 7810&7811, PCI 4.X and EMV Co.
EMV Reader ISO 7816, Encrypted Head, PCI 4.X and EMV Co.
NFC ISO/ IEC 14443, Type A&B
PORTS ON TABLET
Micro USB USB OTG x 1
SIM card 1 Slot
PSAM Card 1 Slot
Speaker Built In
Microphone Built In
Headset 3.5mm Jack
PORTS ON EXTENDED DOCK
USB x5
Ethernet x1
VGA x1
DC Socket 2.5mm x 1
POWER
Power Supply Input 100-240V, Output 5V/2A
Battery 3.7V/3000 mAh Lithium Battery
PACKAGE
Dimension 6.75"(L) x 4.5"(W) x 2.25"(H)
Weight 1 lb

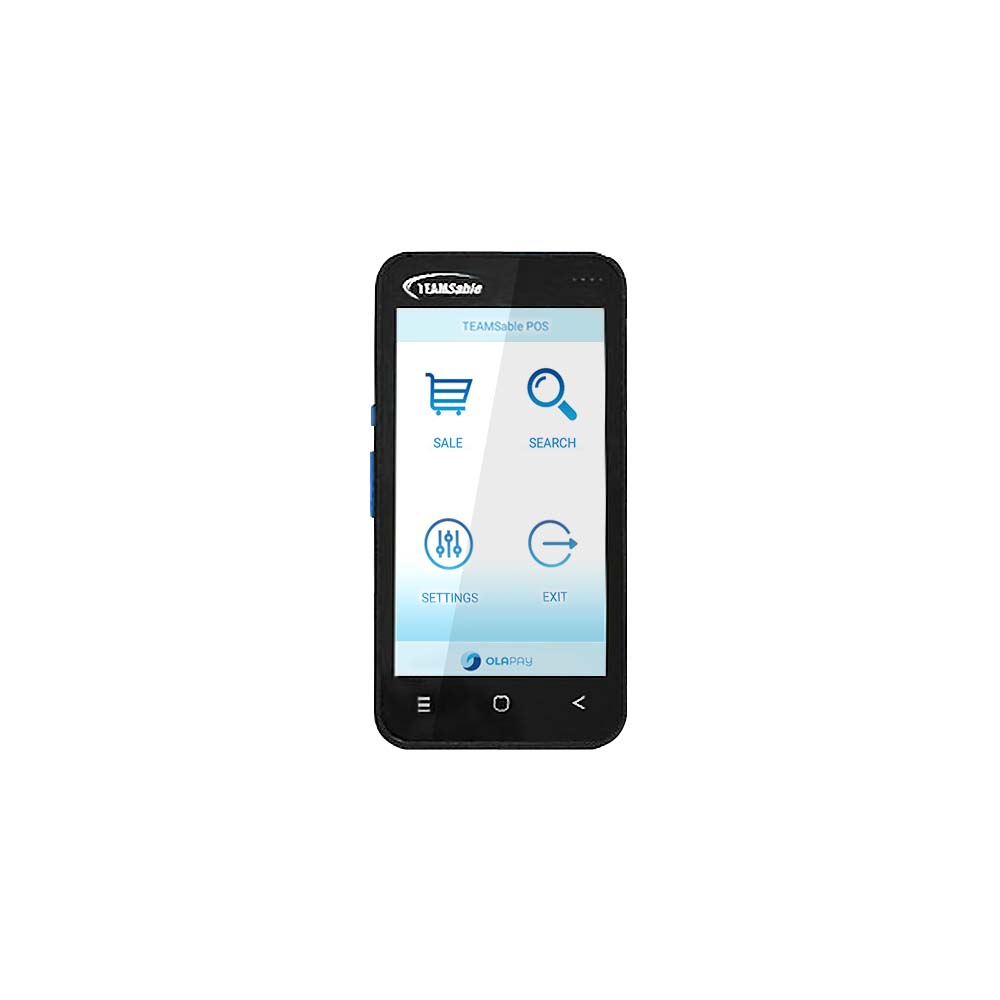

Introduction OlaPay
