Cube Thermal Printer

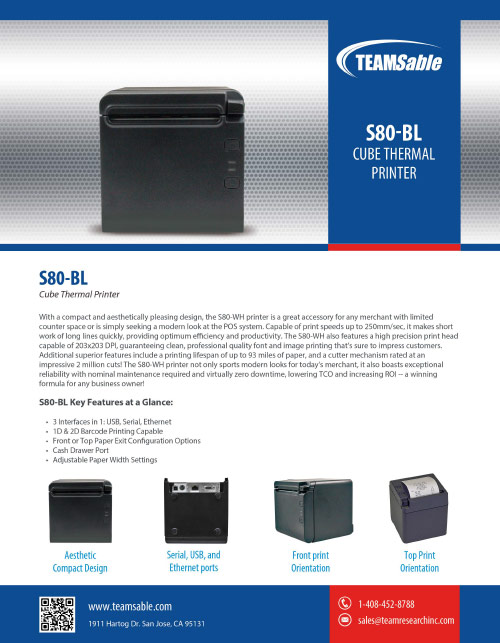

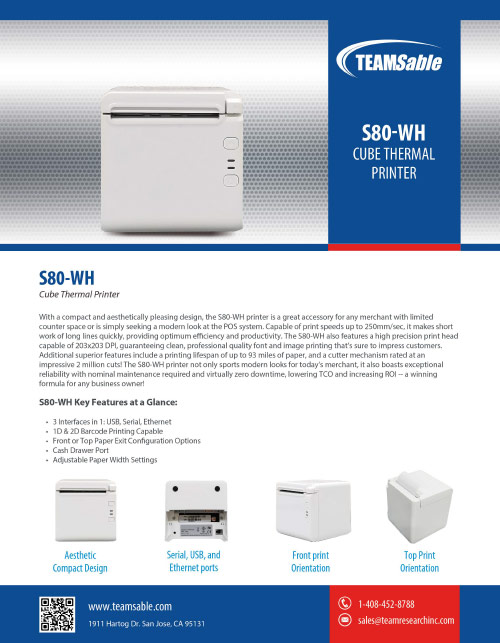

With a compact and aesthetically pleasing design, the S80 printer is an excellent accessory for any merchant with limited counter space or is simply seeking a modern look at the POS system.

SKU: S80 Category:
Product Details
Specifications
Downloads
Overview
TEAMSable S80

With a compact and aesthetically pleasing design, the S80 printer is an excellent accessory for any merchant with limited counter space or is simply seeking a modern look at the POS system. Capable of print speeds up to 250mm/sec, it makes short work of long lines quickly, providing optimum efficiency and productivity.

  • 250mm/Second
  • Serial / USB / Ethernet
  • Support Two 24V DC Drawers
    w/Compulsion
  • RAM: 64KB, Bitmap: 128KB,
    Flash: 512KB
  • 203x180 Resolution
  • 80x80mm Paper Roll
  • Available in black and white
Configurations
Top Paper Exit
Top Paper Exit
Front Paper Exit
Front Paper Exit
Includes USB, Serial and Ethernet
Includes USB, Serial and Ethernet
MODEL DESCRIPTION
TSP-S80-BK Cube Thermal Printer, Ethernet, USB, Serial interface, Black
Packaging
Box Details 8.75"(L) x 7.25"(W) x 8.75"(H)
Weight: 4.5 lb
Inside the Box Thermal Printer S80
AC Power Input Cable
Power Adapter
Serial Communication Cable
USB Communication Cable
User's Quick Reference
Paper Roll
HARDWARE
Print Speed 250mm/Second
Paper Cutting Method Auto Cutter, Selectable Full or Partial Cutter
Resolution 203 DPI x 180 DPI
Character Per Line Font A: 53 (80mm)/ 38 (58mm)
Font B: 71 (80mm)/ 51 (58mm)
Character Size Font A: 12 x 24; Font B: 9 x 17
Paper Supply Drop and Print
Reliability MTBF 360,000 Hours
Compatibility ESC/POS
HARDWARE
Interface Serial + USB + Ethernet
Paper Roll Size Width: 82.5/80/57.5mm?Max
Diameter: 83mm
Paper thickness: 0.06~0.1mm
Buzzer Built in
Cash Drawer Port Support Two 24V DC Drawers w/ Compulsion
Data Buffer RAM: 64KB RAM, Bitmap: 128KB, Flash: 512KB
Paper Supply 100-240V AC, 50/60 Hz Adapter included
Power Usage 1.5A / 36W
Driver Windows, Linux, Android, Java POS, OPOS



Download Drivers



Setup

Setup S80 V1.0.zip | 6.6MB |

S80_LinuxDrv_EN V1.0

BTP-S80_LinuxDrv_EN-V1.0.zip | 300kb

S80_MACDrv_EN V1.0

BTP-S80_MACDrv_EN-V1.0.zip | 3.6MB

POS SDK For Android V2.0.6.5

POS SDK For Android V2.0.6.5.zip | 6.8MB

OPOS_Win SV4.16-00

SNBCOPOS_Win SV4.16-00-1.zip | 9.2MB

Printer Utility V1.66

PrinterUtility-V1.66-1.zip | 10MB

POS SDK For iOS V2.10

POS-SDK-For-iOS-V2.10.zip | 6.2MB

VCOM

Setup VCOM Win 7 - Win 10_2018.zip | 3.8MB |

Language Pack, Simplified Chinese

Chinese_GB2312.zip | 318KB |

Language Pack, Chinese

Chinese_Big_5.zip | 6.3KB |
