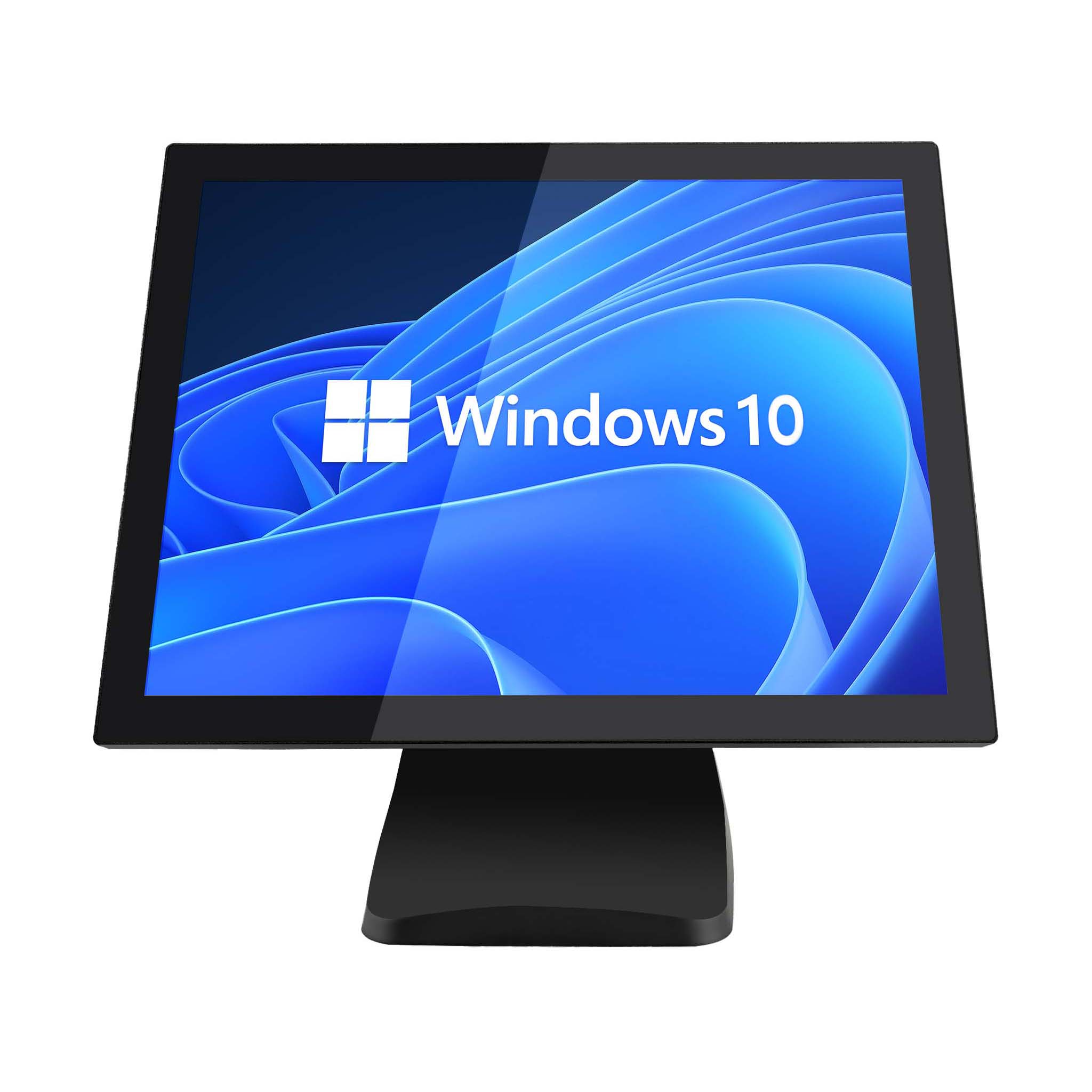

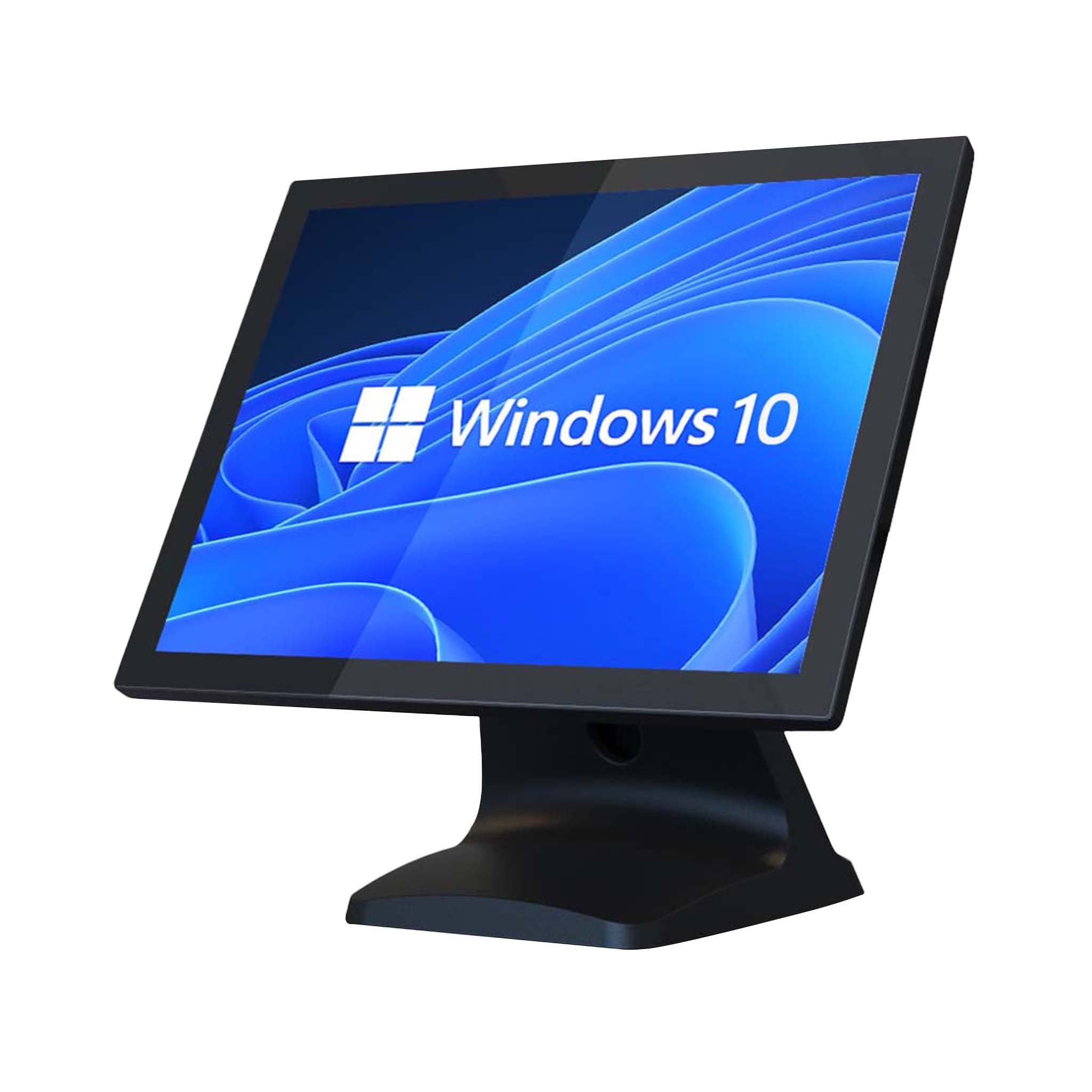

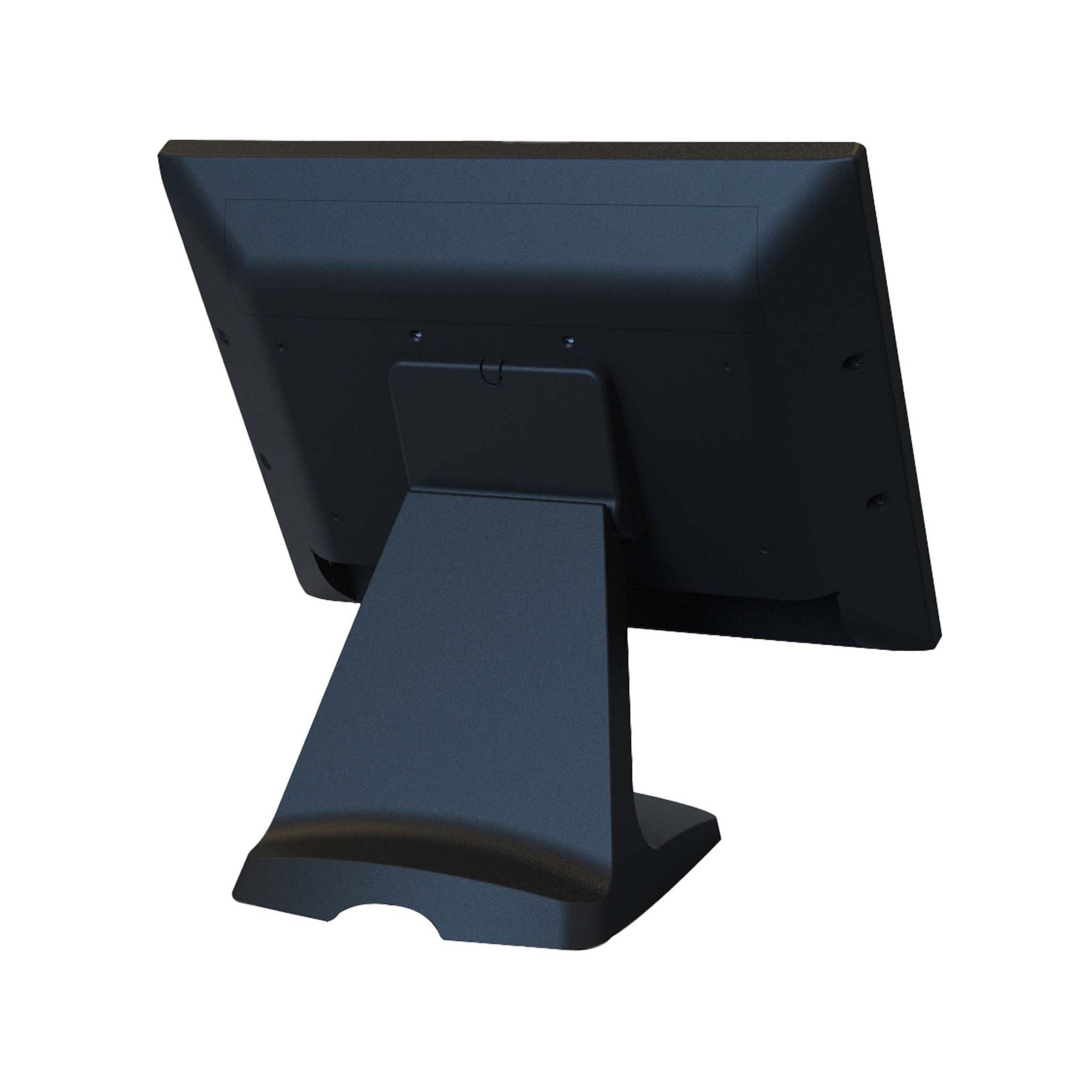

SEA Series – New Windows Terminal
- CPU:
- i3-1115G4
- i5-1135G7
- Celeron J6412
- RAM: 8GB DDR4 (i3,i5)
- Storage: 250GB SSD (i3, i5)
- OS: Win10-IOT, Win11-IOT, Win10-Pro, Win11-Pro
Product Details
Specifications
Downloads
Overview
TEAMSable SEA Series
| MODEL | DESCRIPTION | |
|
SEA-LPT150J-4G-120S
|
LPT150J, J6412, 4G, 120G SSD, Win10 IOT Entry
|
|
|
SEA-LPT150i3-8G-250S
|
LPT150i3, i3, 8G, 250G SSD, Win11 IOT, Win10Pro, Win11-Pro (Option)
|
|
|
SEA-LPT150i5-8G-250S
|
LPT150i5, i5, 8G, 250G SSD, Win11 IOT, Win10Pro, Win11-Pro (Option)
|
| PERIPHERALS | DESCRIPTION | |

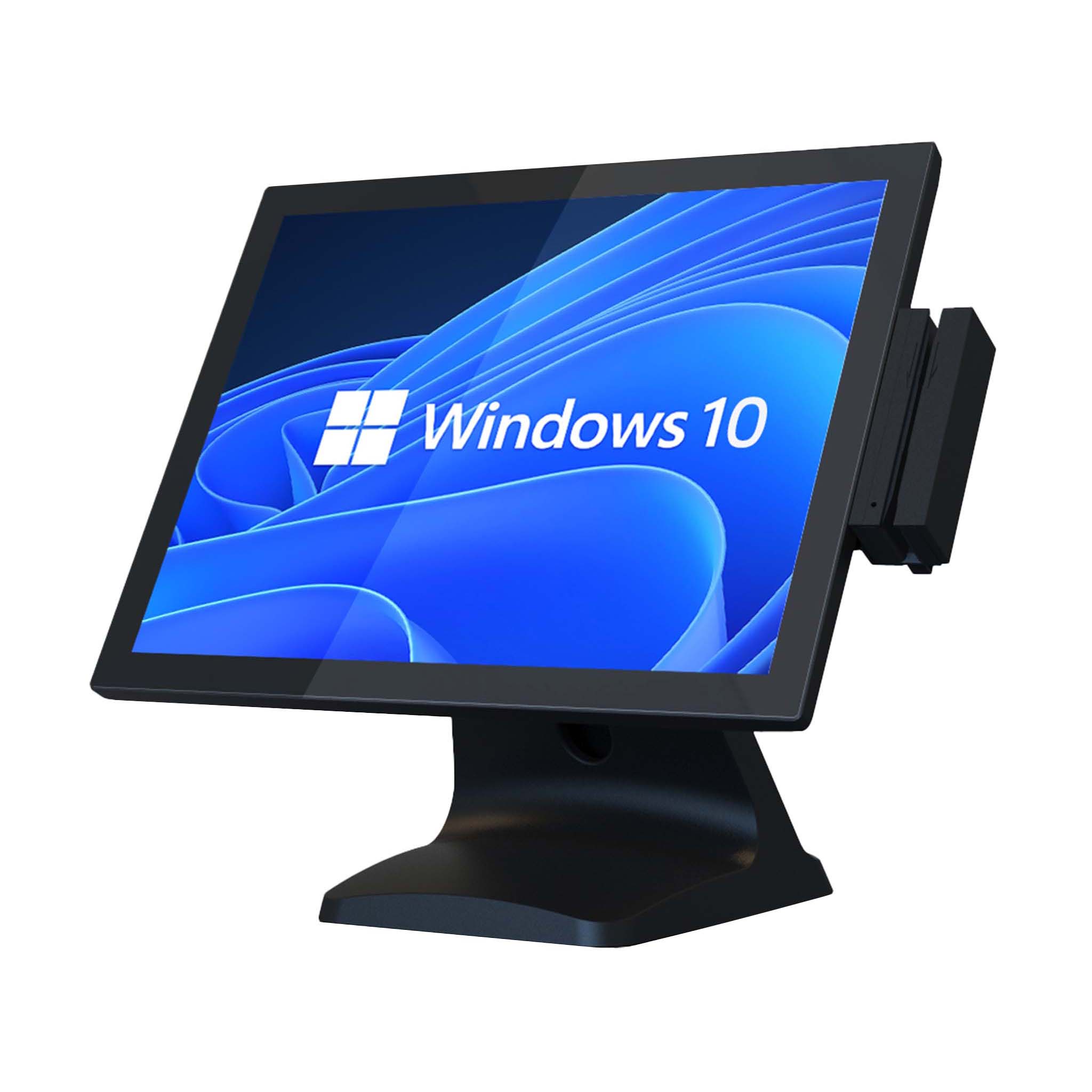

| SEA-LPM131U | MSR Card Reader for LPT150 (Keyboard/HID Model) | |

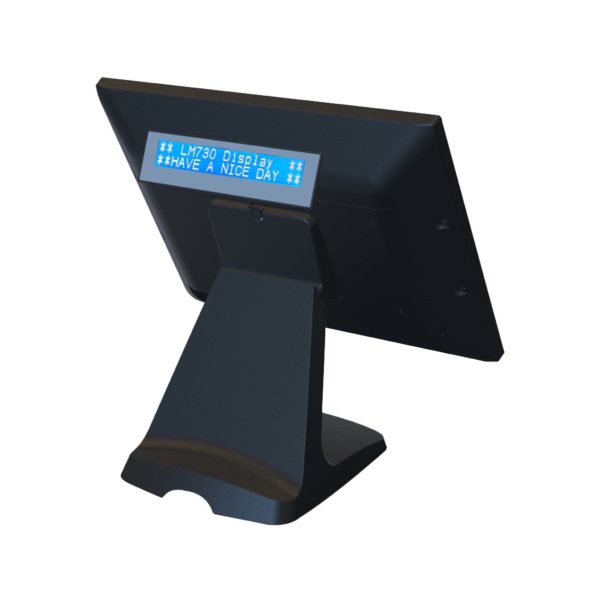

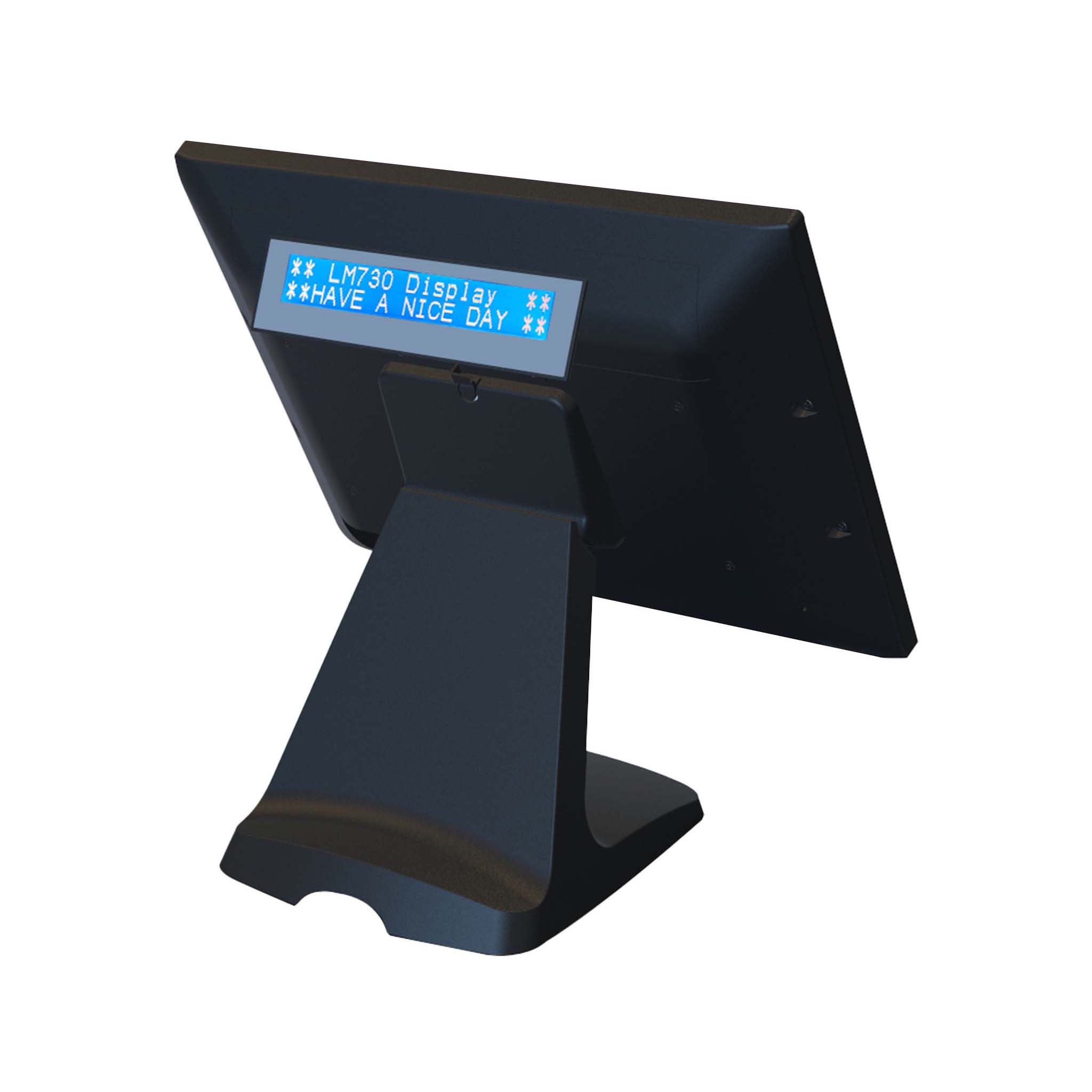

| SEA-LPD730IU | Integrated 2 lines display for LPT150, USB | |
| SEA-LPD1000IU | Integrated 10" touch display for LPT150, USB |
Packaging
| Box Details | 17"(L) x 13"(W) x 17"(H) Weight: 13 lb |
| Inside the Box | POS Terminal Power Cord Power Adapter |
| HARDWARE | |
| Display | 15" LED Panel |
| Resolution | 1024x768 |
| Touch Technology | 10 Point Capacitive |
| CPU |
Intel Celeron J6412 2.0GHz; Intel i3-1115G4 3.0GHz; Intel i5-1135G7 2.4GHz |
| Memory | 4GB and 8GB RAM |
| Storage | 120 (LPT150J only) 250GB |
| OS SUPPORT | |
| Windows | Win 10 IOT, Win 10 Pro, Win 11 Pro |
| OPTIONAL PERIPHERALS | |
| MSR | 3 Tracks (Hardware key injectable) |
| MSR+EMV | Available |
| Line Display | 2x20 Line Display |
| 2nd Display | 10" Customer Touch Display |
| EXTERNAL PORTS | |
| USB | 8 x USB ( 4 x USB3.0, 4x USB 2.0) |
| COM | 2 x RS232 |
| VGA | NO |
| HDMI | 1 |
| Ethernet | 1 x 10/100/1000 Mbps |
| Audio I/O | 1 x MIC in and 1x Line-out |
| Cash Drawer | NO |
| ENVIROMENT | |
| Operating Temperature | 0 - 35 C° (32 - 94 F°) |
| Relative Humidity | 10% - 90% (Non-Condensing) |
| Certification | RoHS, REACH, ISO9002 |
| PACKAGE | |
| Dimension | 17"(L) x 13"(W) x 17"(H) |
| Weight | 13 lbs |
Download Drivers
MSR Utility
Prolific Driver
Prolific Driver.zip | 10.3MB |
Peripherals 10NDL
DisplayLink USB Software for Windows8.3 M1-EXE | 41.4MB |
